Change the ARB Bushes

**This article has pictures from the 205 but the procedure is very similar for all GT4s **

Why do I want to replace my ARB bushes?

Maybe the old ARB bushes have worn out and you have some odd clonking noises from either the front or rear of the car, or maybe you want to just tweak the car a little to make it perform a tiny bit better?

Are there any downsides to fitting PU bushes?

None that I have found yet, except that these are more prone to the odd squeak, but greasing sorts this out. Note that I found the 165 to suffer much more from squeaks than the 205 with PU bushes.

Where can I buy the bits from?

Maybe there are other manufacturers of these specific PU bushes, but www.superflex.co.uk , www.fensport.co.uk and www.demon-tweeks.co.uk all sell the necessary parts.

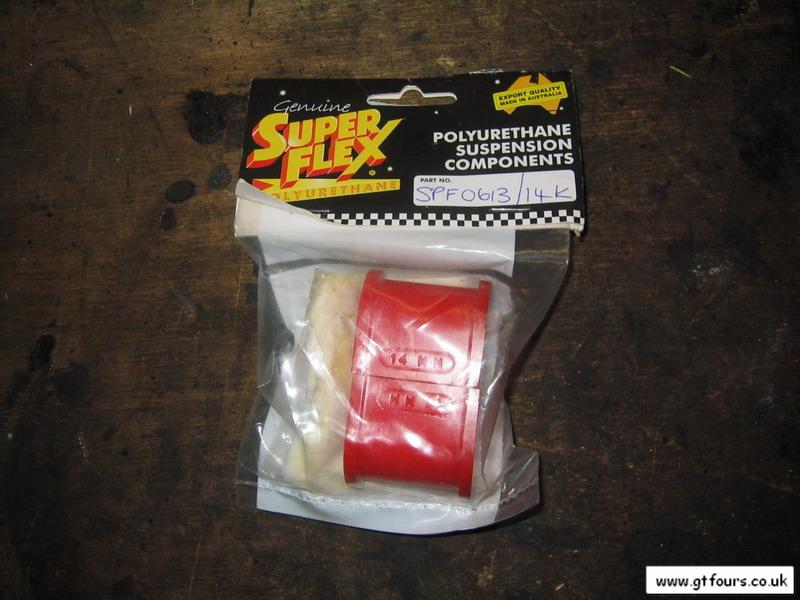

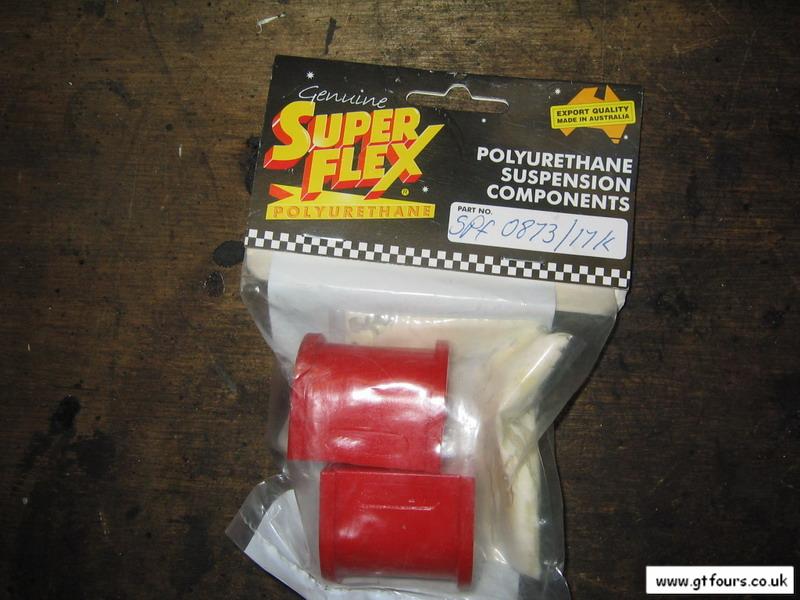

ST205 14mm Front SPF0613/14K Note that the stock front ARB is 15mm in diameter, but the 14mm bush works fine, maybe this is why they squeak from time to time?	ST205 17mm Rear SPF0873/17K

What tools do I need?

• 12mm socket and wrench - to undo the 2 bolts holding the ARB "cap" in place
• 12mm spanner - to access the front left ARB on the 205, access is tight here!

How did you replace the ARB bushes?

I can't remember how long this took, but if you allowed 1 hour for the front and 1 hour for the rear that should be ample.

	Jack up the car at each wheel as you do each bush in turn. Ensure the wheels are chocked and the car is supported on axle stands before venturing under the car
Rear ARB

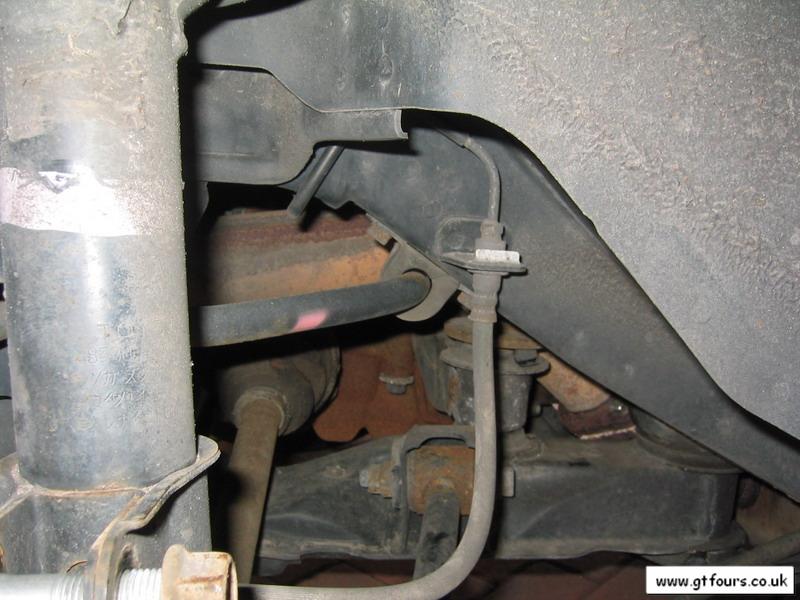

	The stock rear ARB is fixed to the car by a rubber surround and a metal bracket. This arrangement is the same for all GT4s for both the front and rear ARBs...

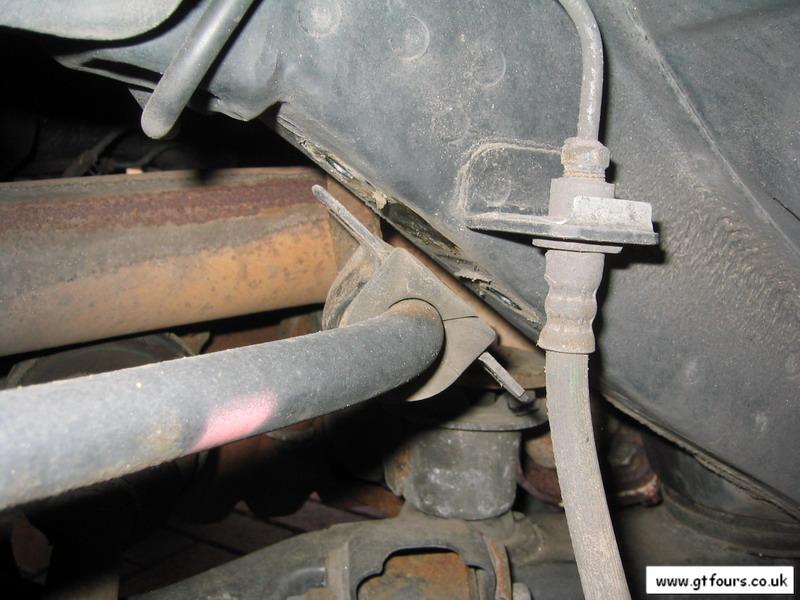

	...undo the 2 securing bolts, note the split in the bush, (it's there by design)...

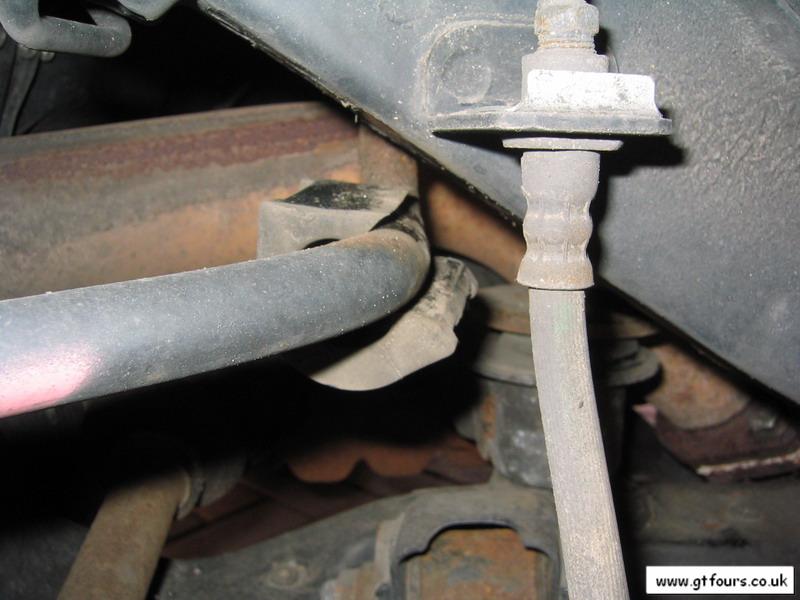

	...remove the metal bracket and simply pull the bush off from the ARB

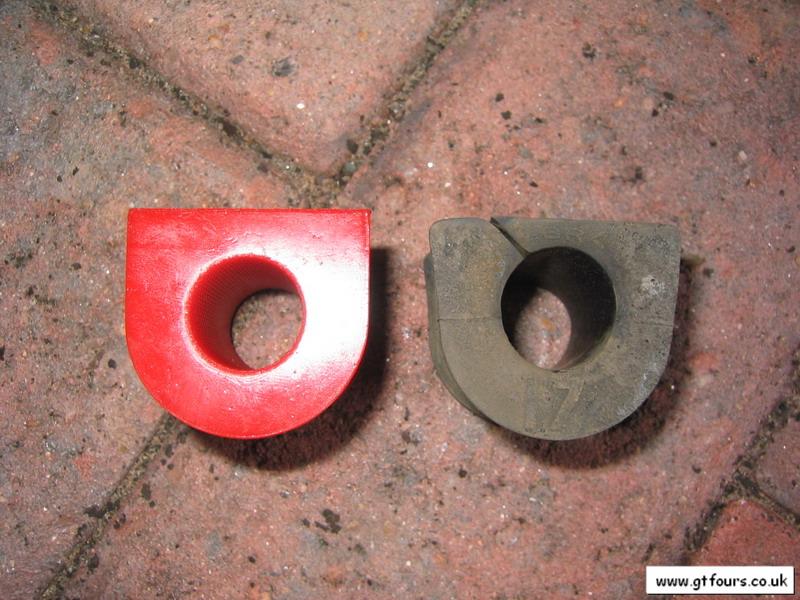

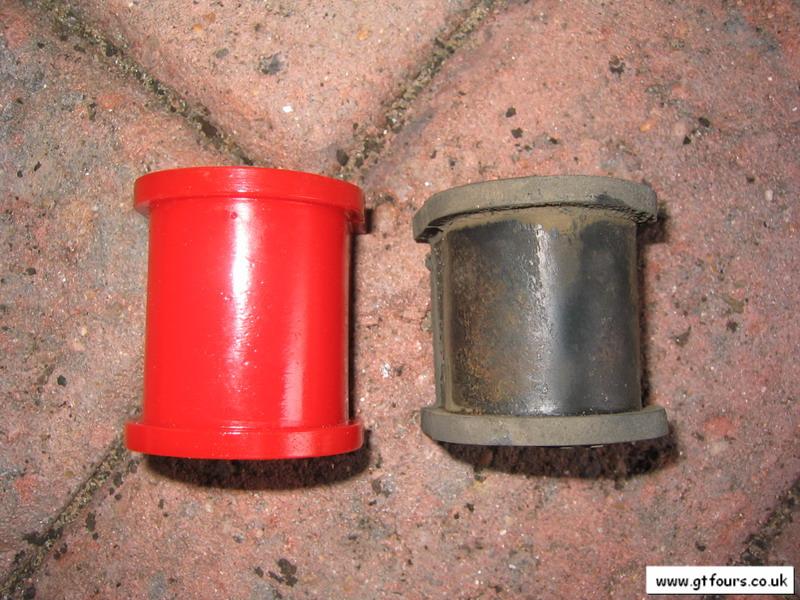

	A couple of pictures showing the comparison between the old rubber bush and the replacement PU bush. Note the replacement PU bush also has a similar "split" as the original rubber bush so that you can easily place this over the ARB

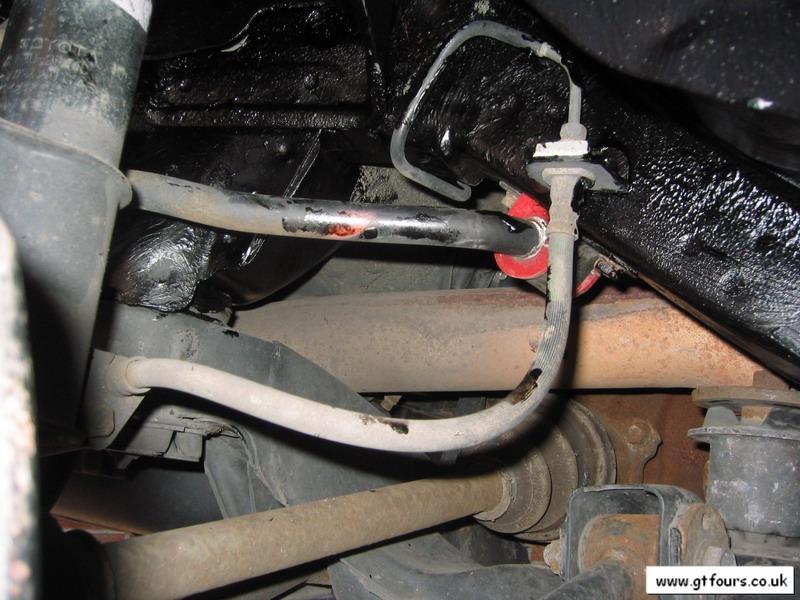

	Lubricate the ARB and inside of the PU bush with the supplied grease, fit the bush to the ARB and tighten up the bolts securing the bracket to the car
Front ARB
	The procedure is exactly the same, but access is a little more limited and you will probably need to reach the passenger side bush from underneath the car as it's awkward to get at!

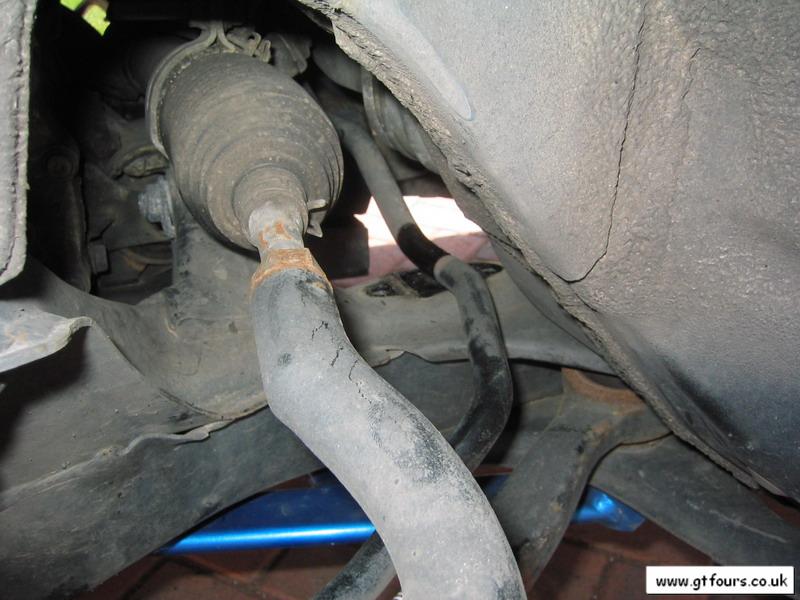

	The removed bush from the front passenger side

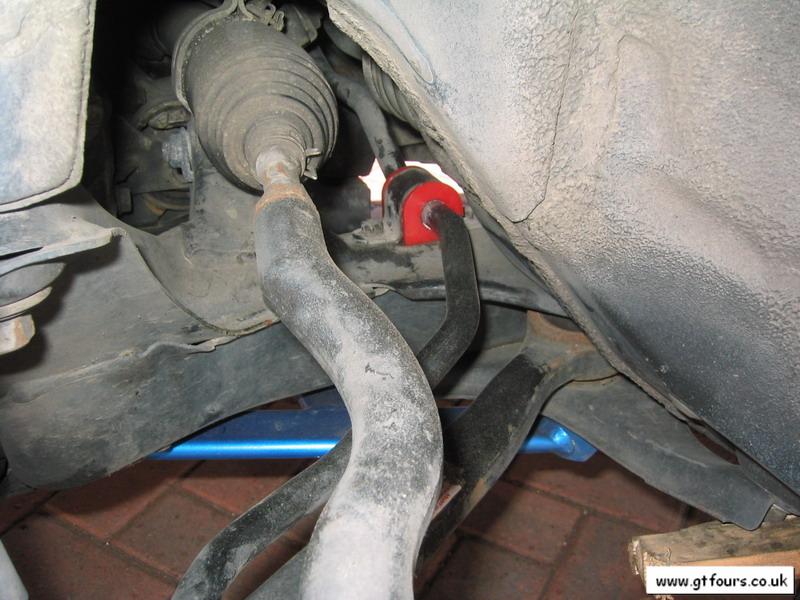

	The new bush fitted

Any questions or comments then please feel free to e-mail me

Other jobs to do at the same time?

• Slap on a bit of under body sealant

Safety

• Always chock the wheels so that the car cannot roll forwards or backwards. Always best to do this on a flat even surface
• Always wear the appropriate safety equipment
• Always use axle stands
• Suspension is a safety critical component. Ensure all components are correctly assembled and all nuts and bolts are correctly tightened
