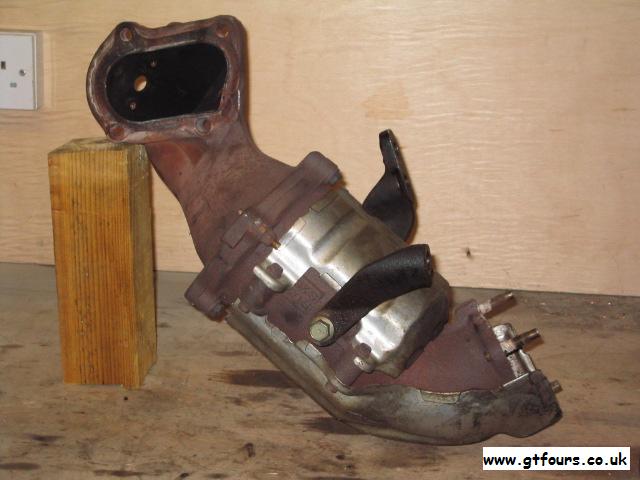

Side view. Note the 2 cat supports and the 4 stud mounting for the 165 |

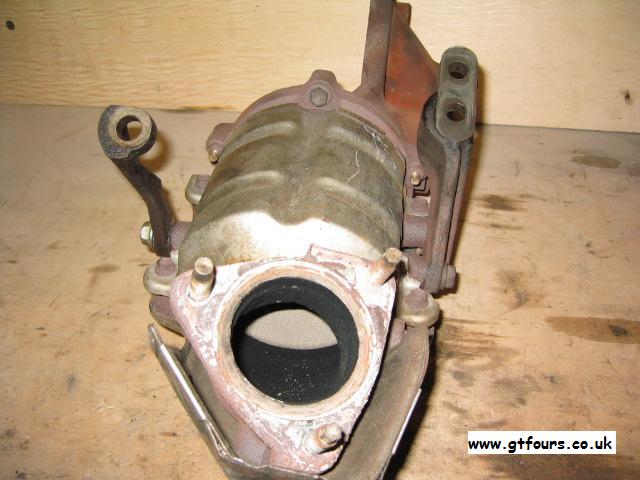

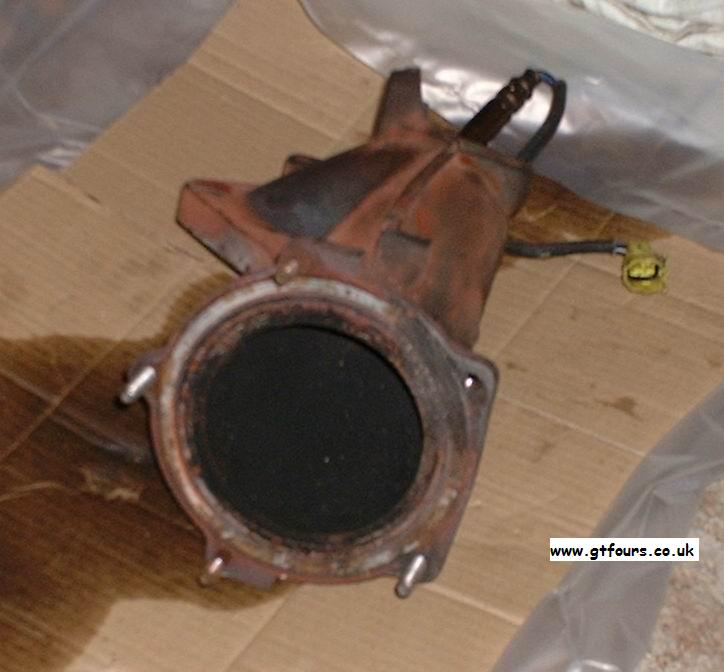

End view |

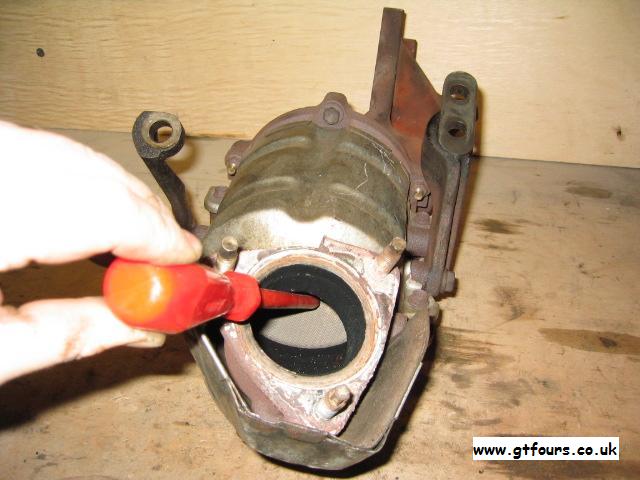

Note restrictive mesh |

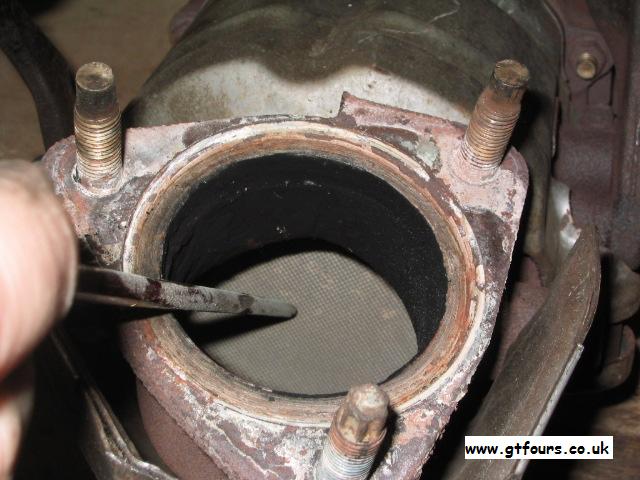

Mesh close up |
|
 |
 |
 |
 |

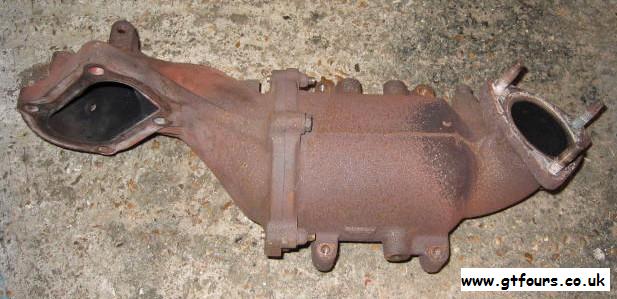

With the heat shielding removed |

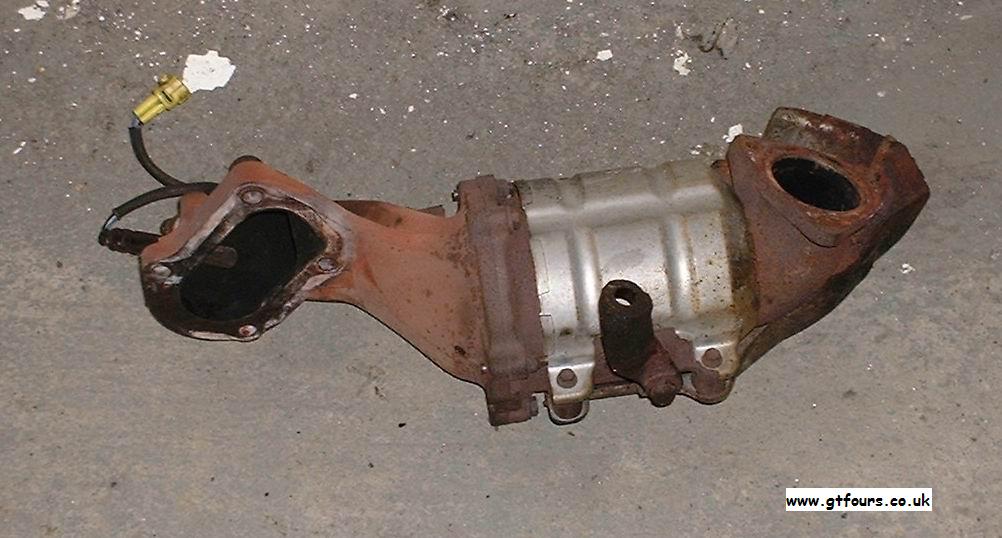

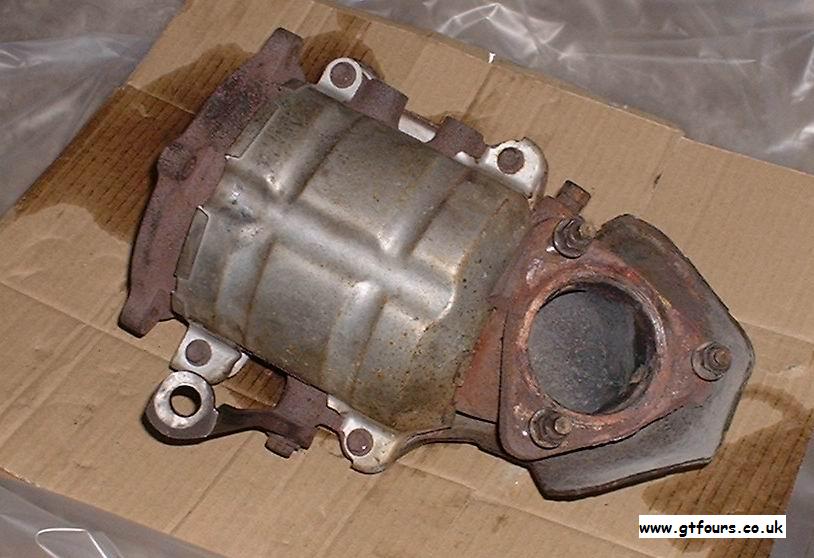

With heat shielding |

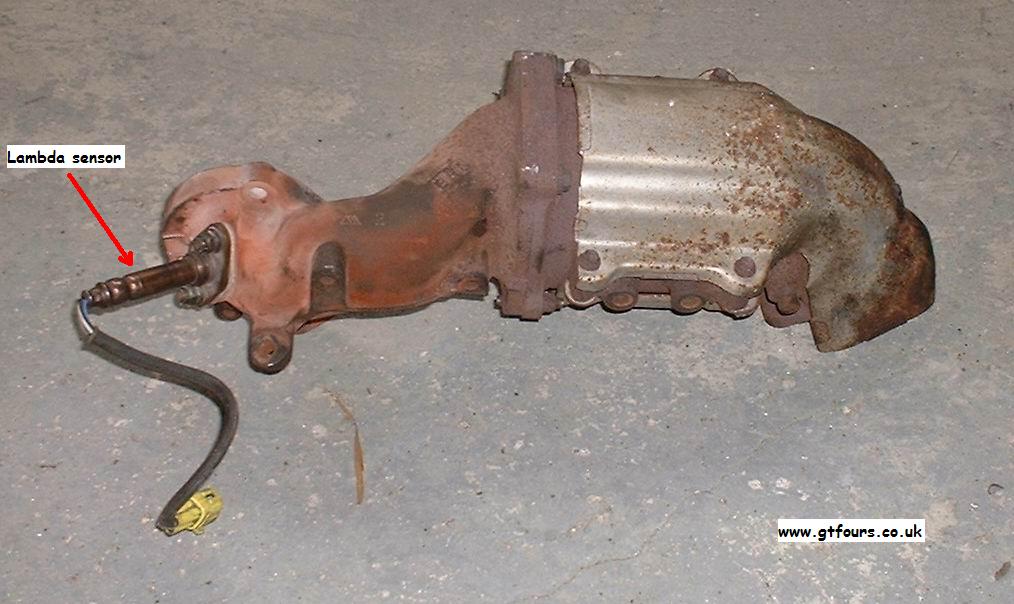

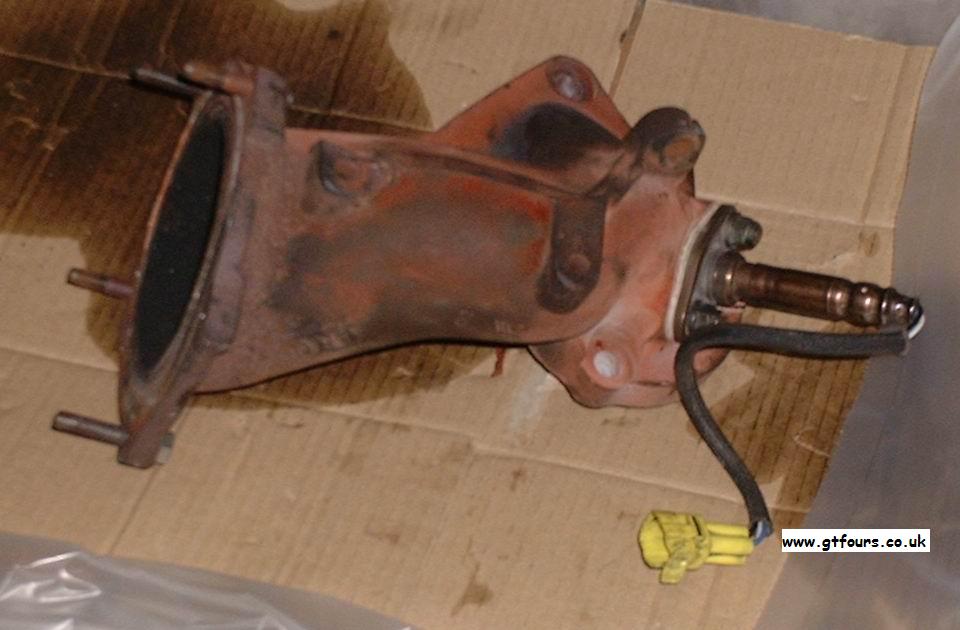

Rear view with lambda sensor attached |
The elbow separated from cat |
|
 |
 |
 |
 |
Elbow |
Elbow |

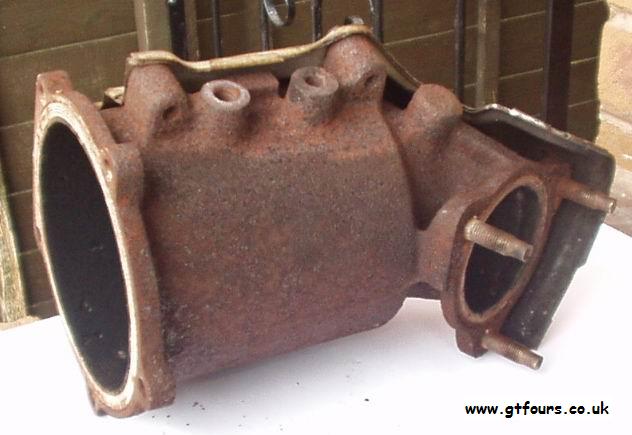

Lower half |
Lower half with internals removed |
|
 |
 |
 |
 |
Lower half gutted |

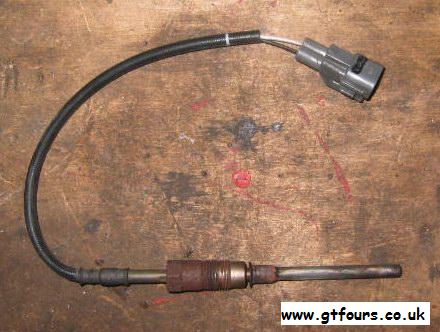

205 cat temperature sensor. This can be removed from the car without any error codes |

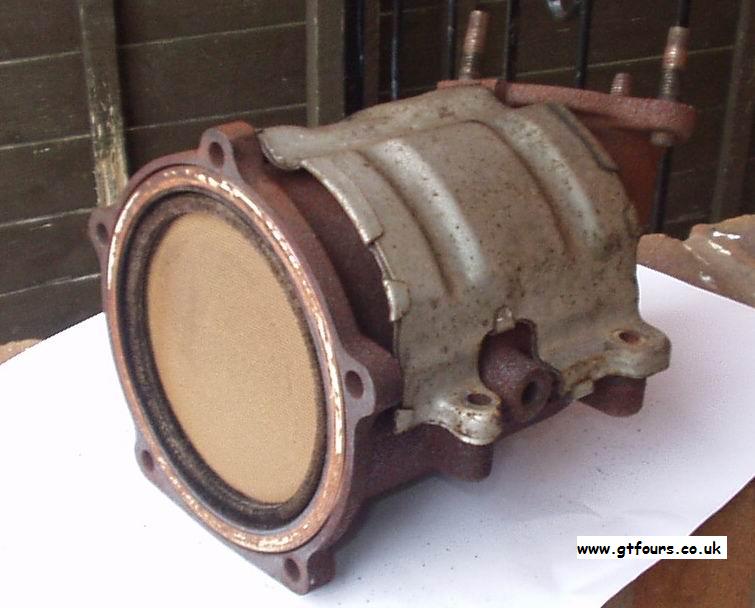

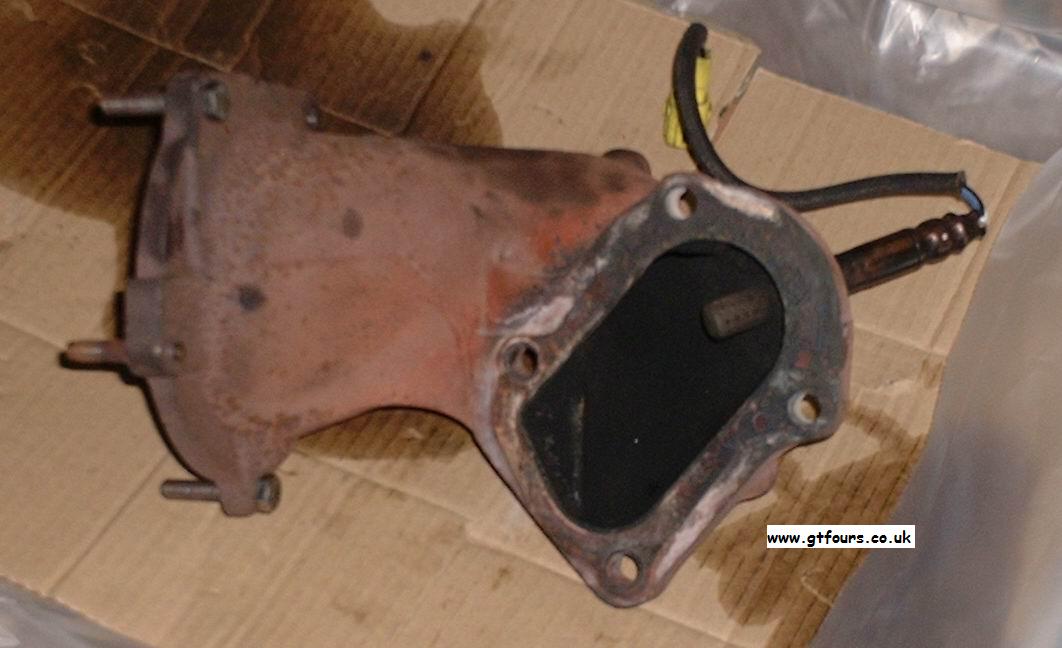

With the turbo elbow removed the innards of the cat are clearly visible |

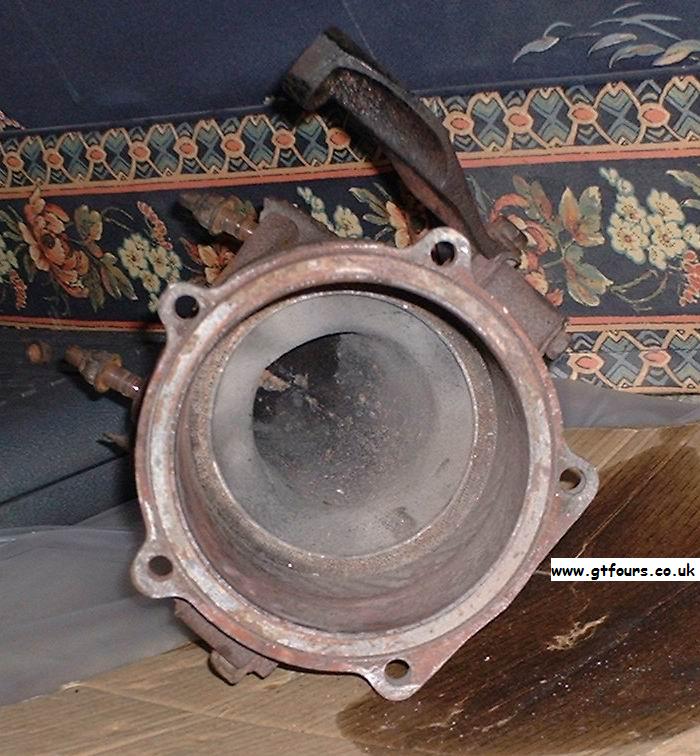

A gutted cat! |
