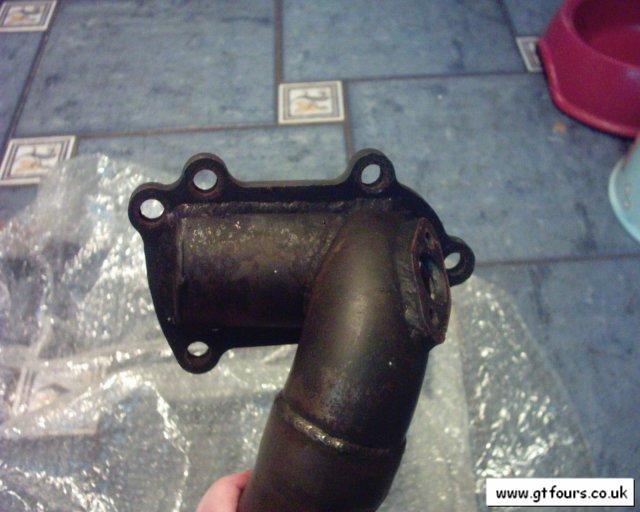

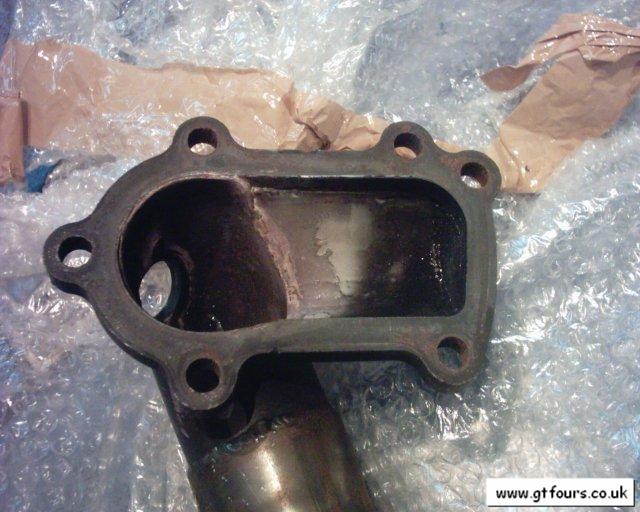

| 185 Note the flat wastegate area |
185 The flatter wastegate area is very obvious in this picture |
185 6 stud turbo flange |

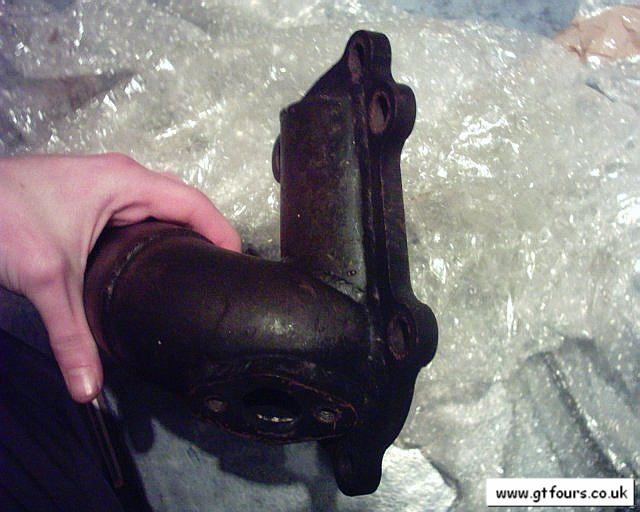

185 Another view of the 6 stud mounting for 185 |
 |
 |
 |
 |
| 185 2.5" downpipe. The wastegate gas flow path is poor... |
185 Another view of the wastegate gas flow path |

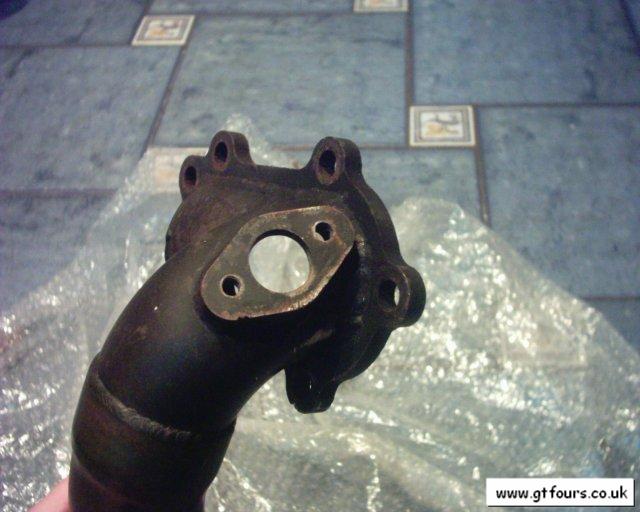

185 Lambda sensor mounting |

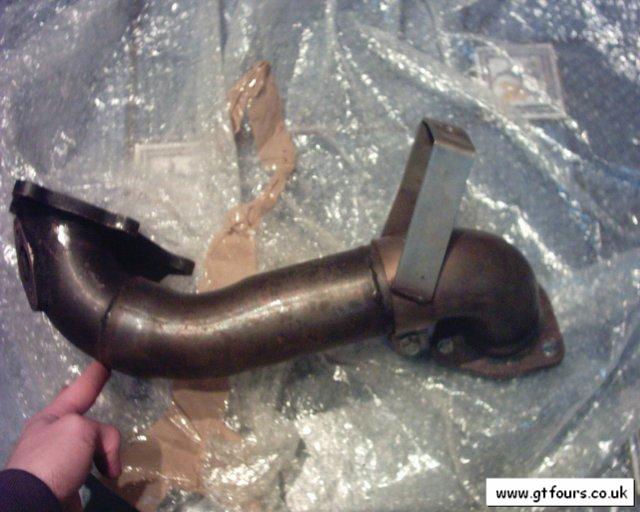

185 HSR DP - bracket to bolt DP to block - it won't reach on the 205... |
 |
 |
 |
|

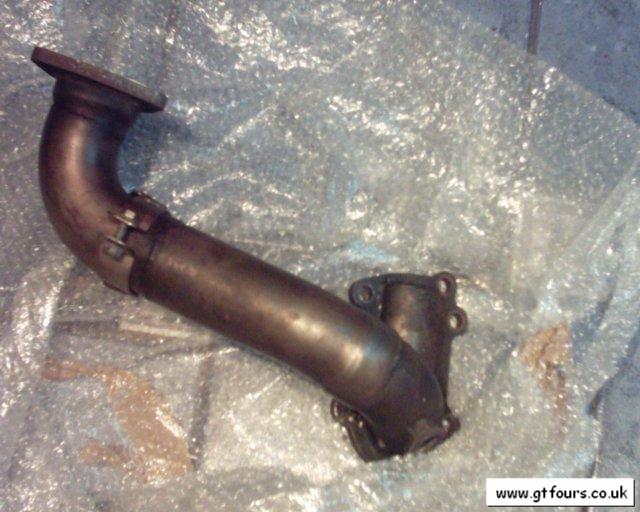

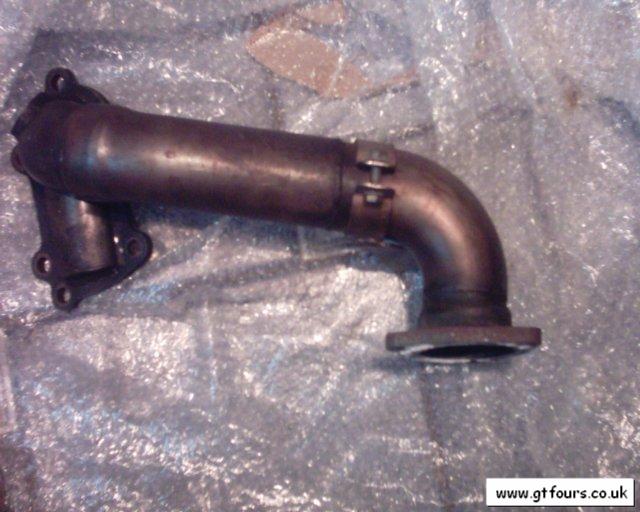

| 185 HSR DP |

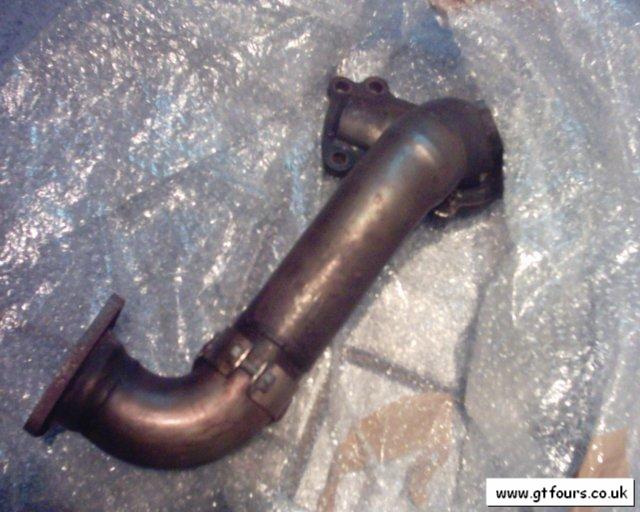

185 HSR DP |
185 HSR DP |
|
 |
 |
 |
 |

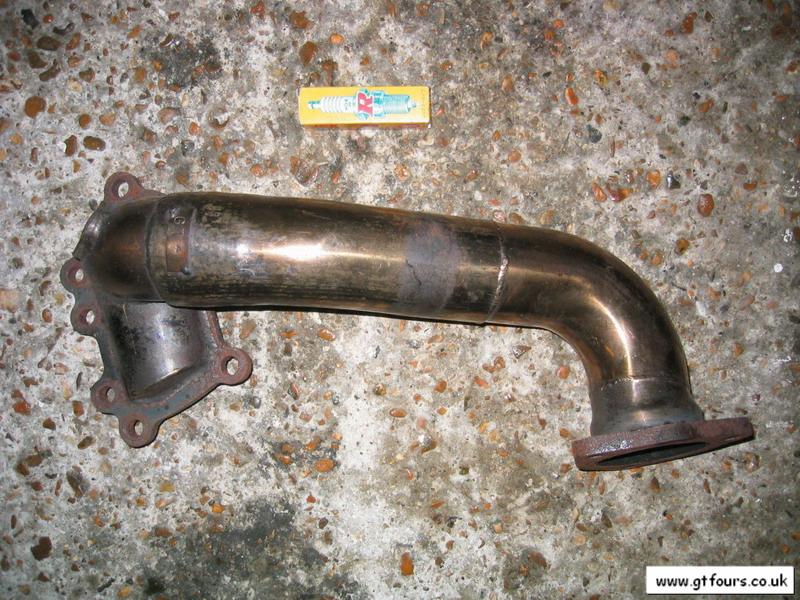

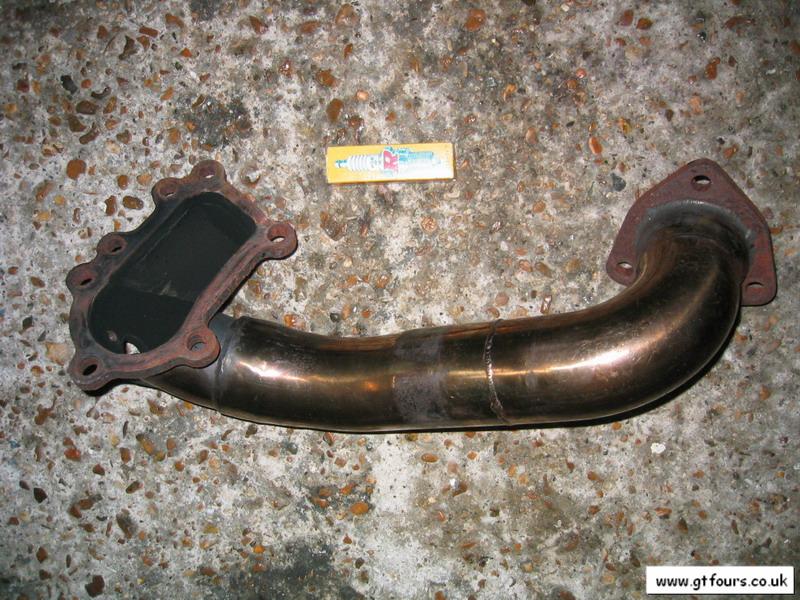

| 205 2.5" HSR DP |
205 HSR DP |

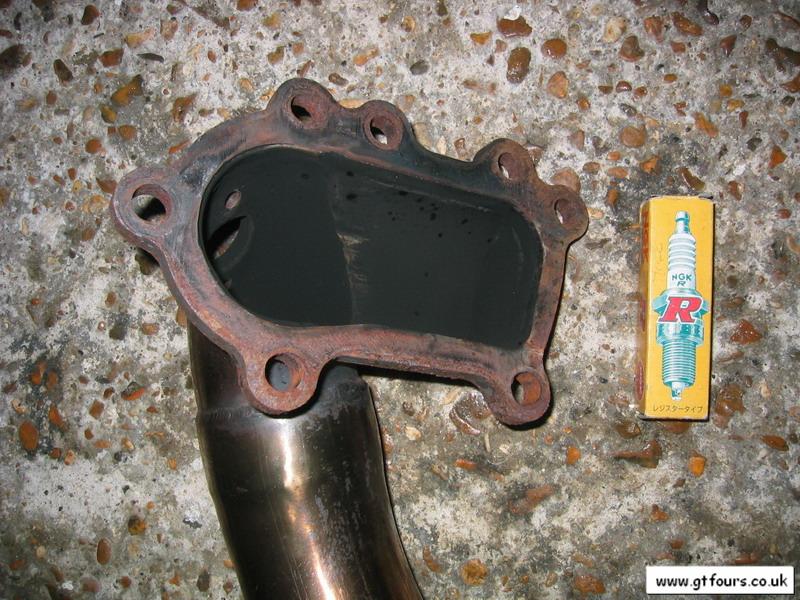

205 7 stud fitment for the 205 |
205 2.5" outlet |
 |
 |
 |
 |

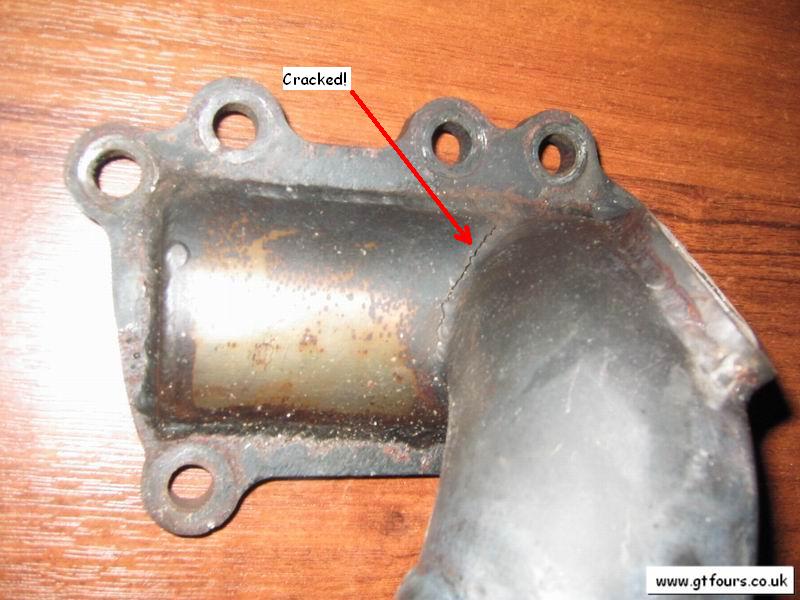

| 205 Cracked HSR DP |

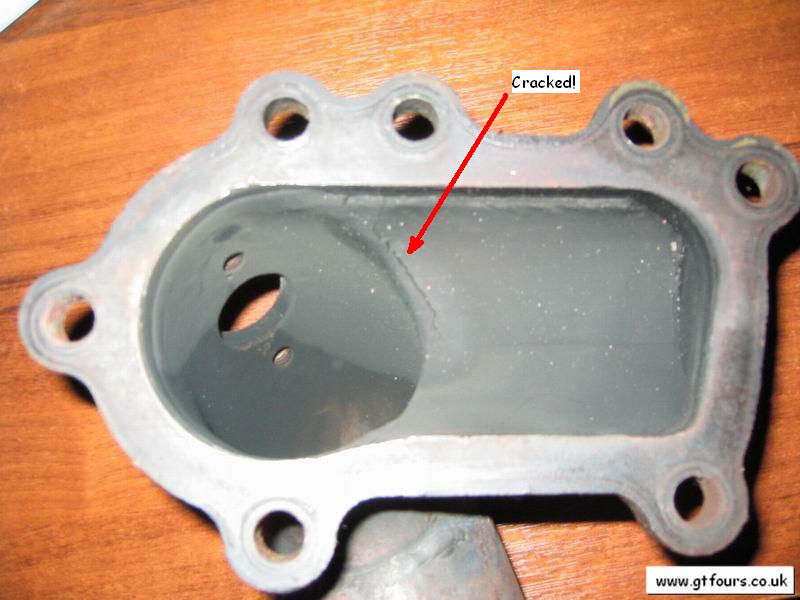

205 Another view of the crack |

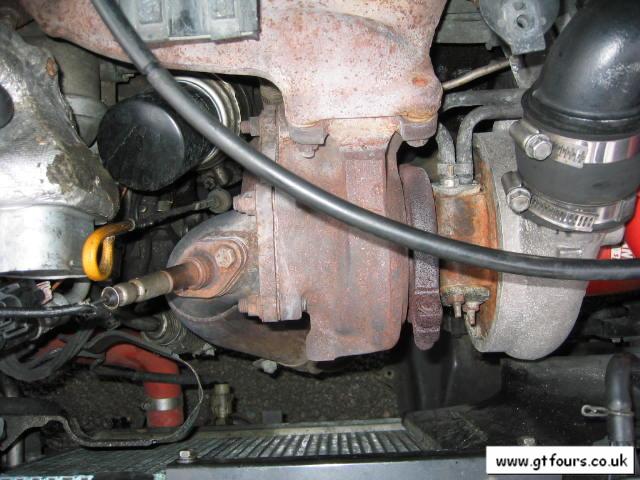

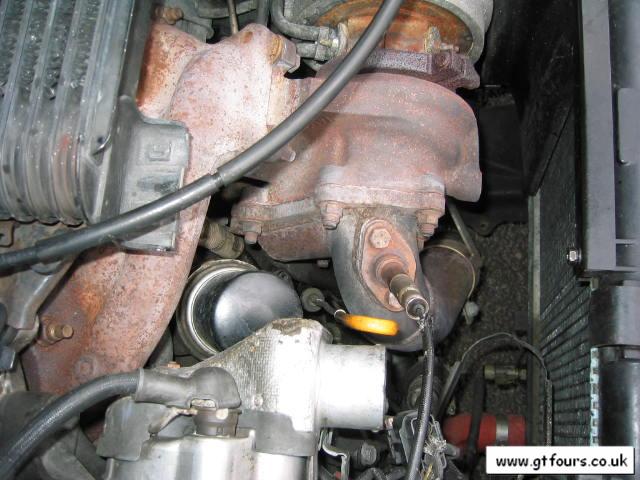

205 DP eventually fitted, note the poor wastegate design |
205 Close up of the wastegate area |
 |
 |
 |
|

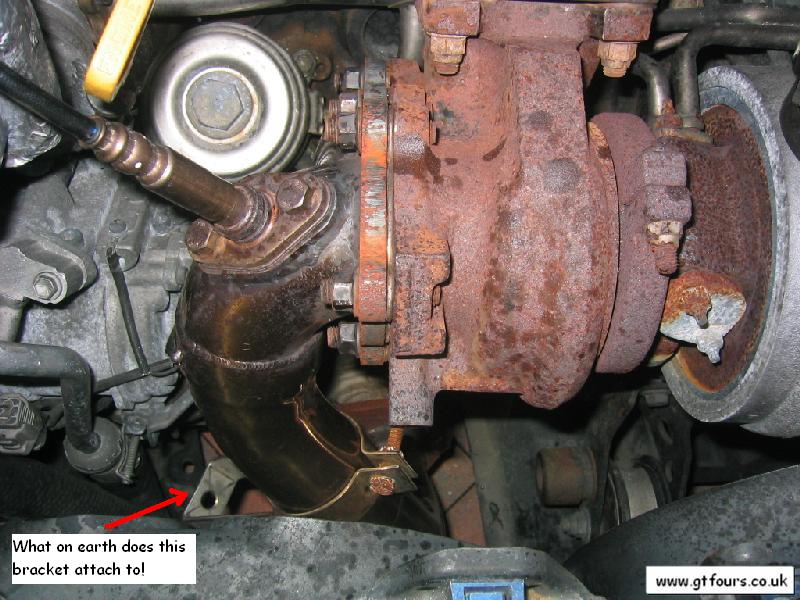

| 205 Another view of the DP clearly showing the wastegate area and the "odd" bracket HSR attach! |

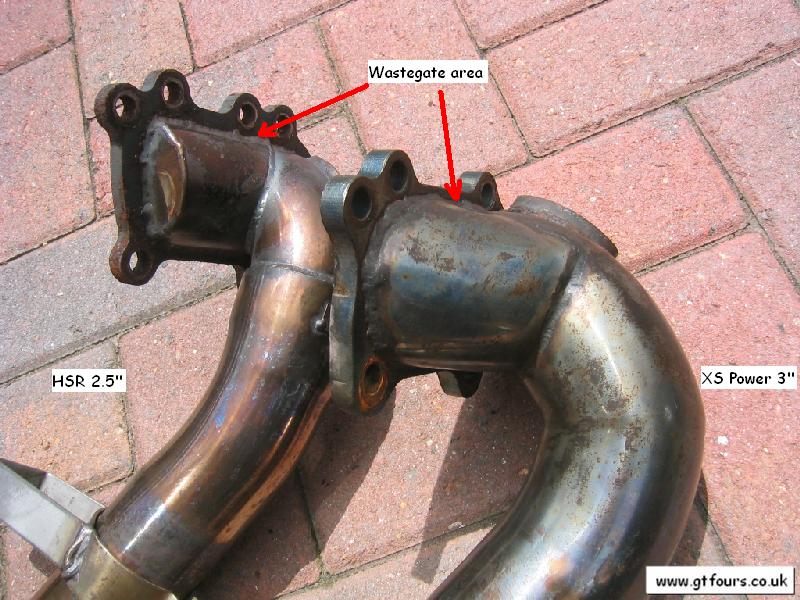

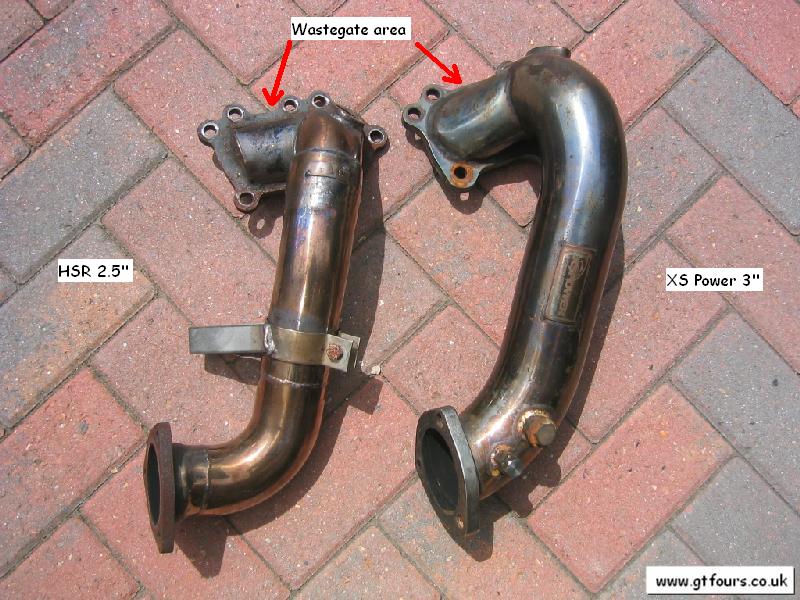

205 This picture shows just how bad the wastegate area is; the XS Power DP, (even though it doesn't fit properly), has a much better wastegate area |
205 A close up view to illustrate the HSR wastegate area |
|
