185 Exhaust Manifold
![]() |
![]() |
![]() |
![]() |

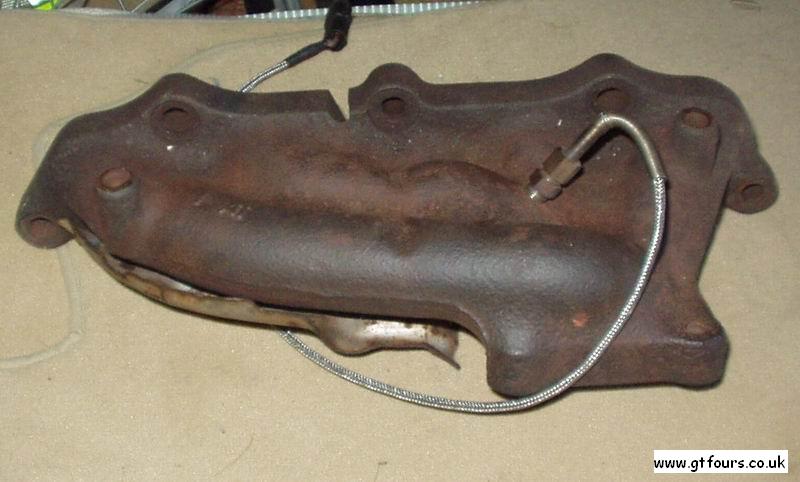

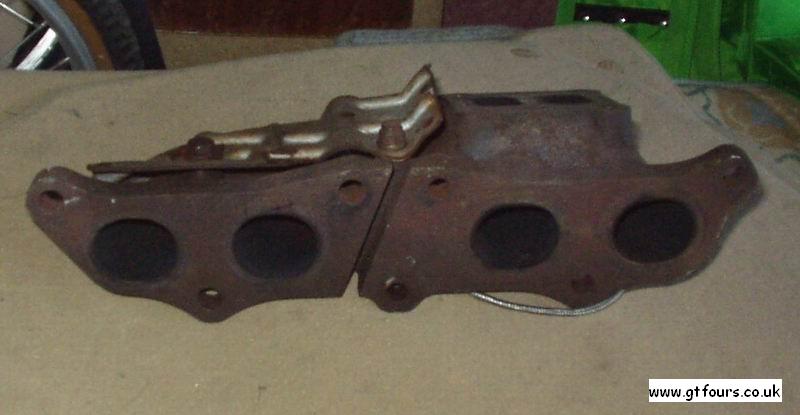

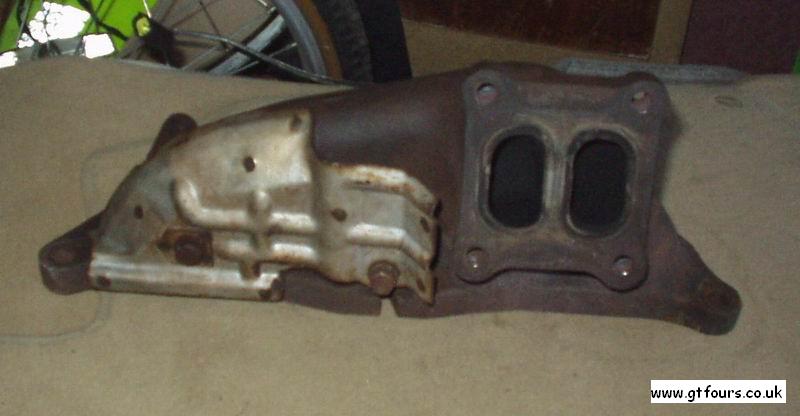

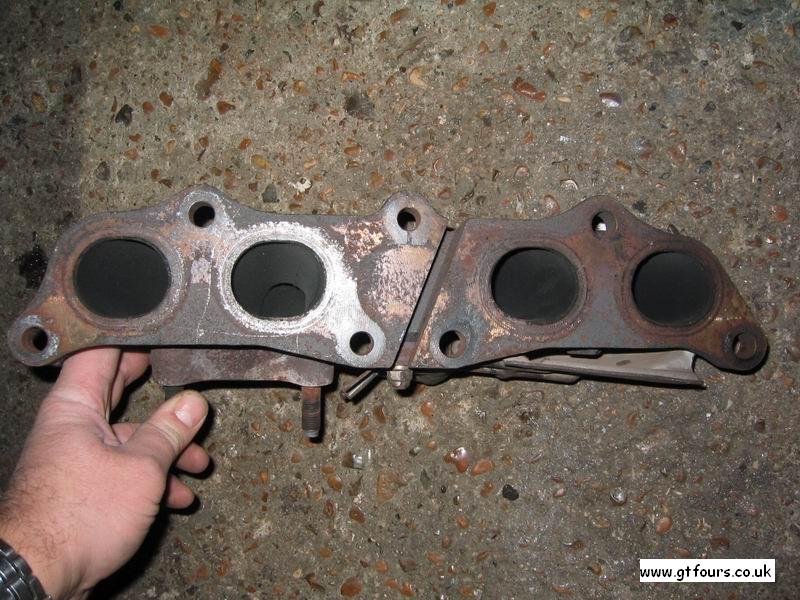

Twin entry design | Note the EGT probe mounted in one of the hottest running exhaust runners | Head side of the manifold | Another view |
![]() |
![]() |
![]() |
![]() |

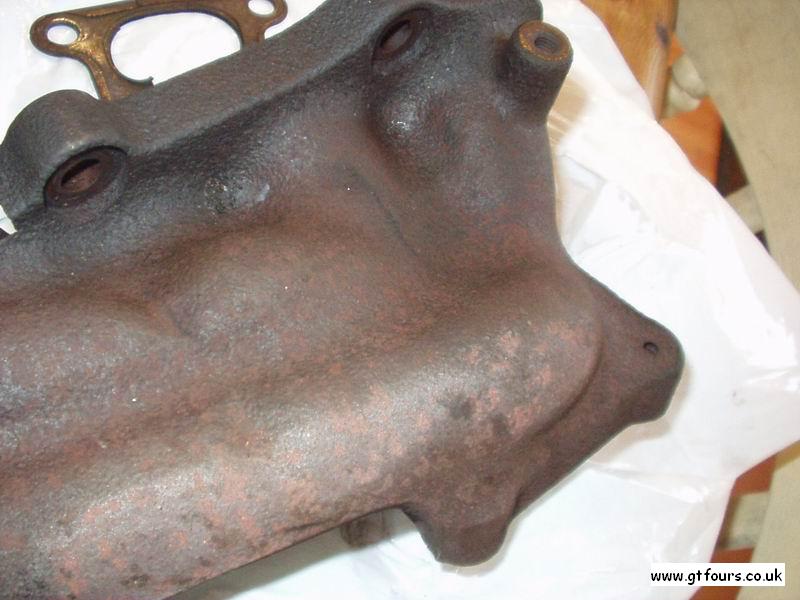

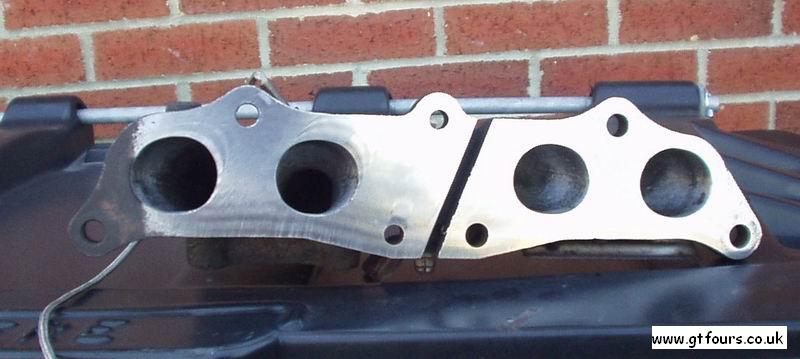

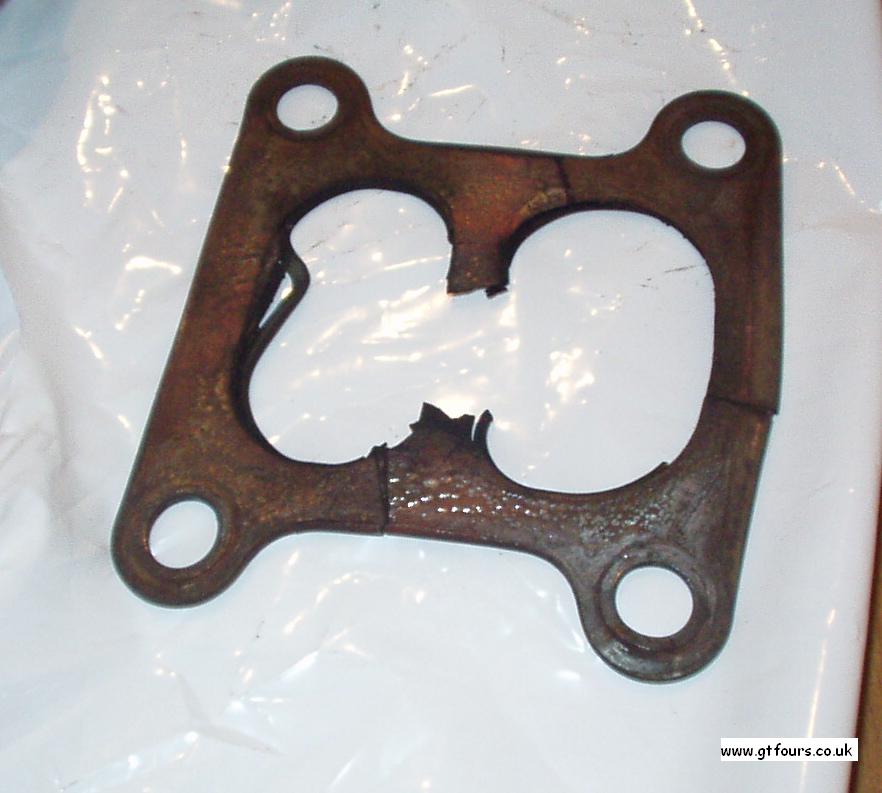

The manifolds can warp. This manifold has been skimmed. Approx 0.5mm was removed to ensure this was flat | Not a common problem with the 185s, but sometimes they do crack - looks to be in a similar place to the crack prone 165 manifolds | The exit from the manifold/entry to the turbo. Note the circled section which is also cracked | Blown gaskets are bad news in a turbo car... |
![]() |
![]() |
![]() |
|

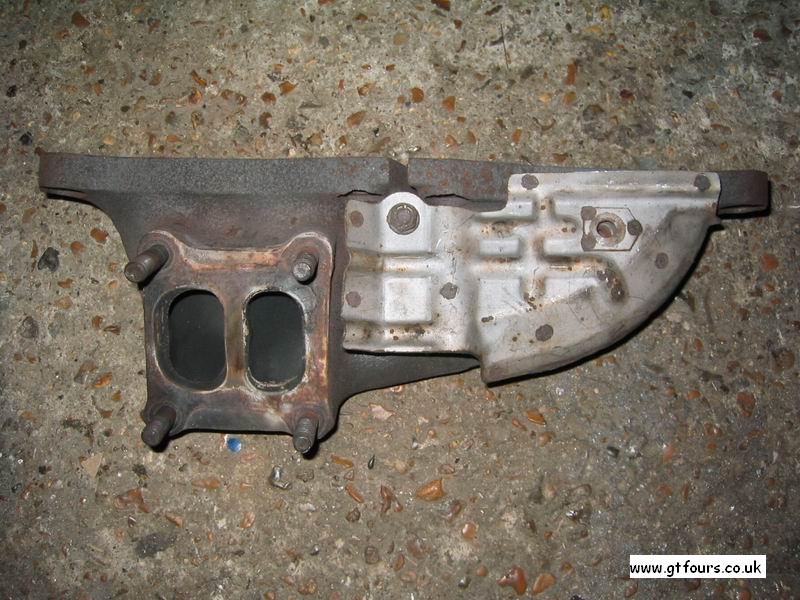

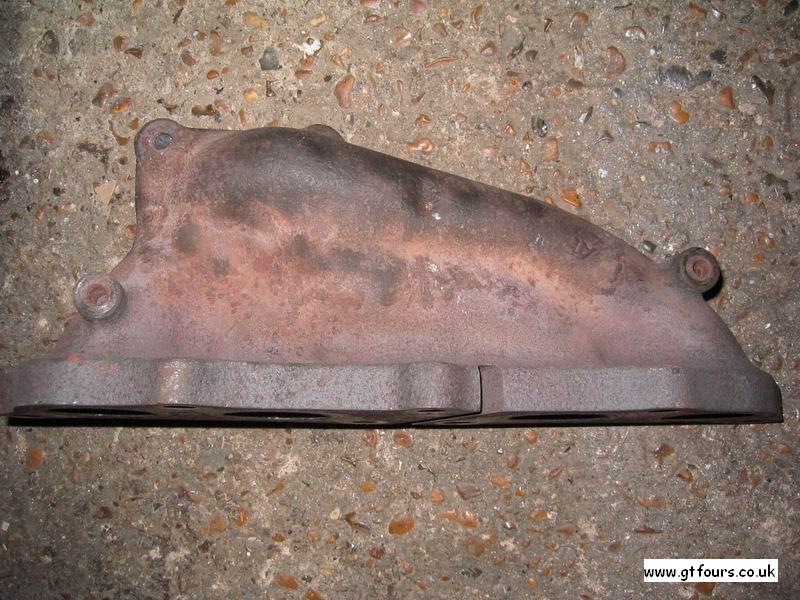

Top view | Head side, note the 7 studs fitment | Twin entry design |
Note
Thanks to Stephen Ault for some of the 185 manifold pictures!
