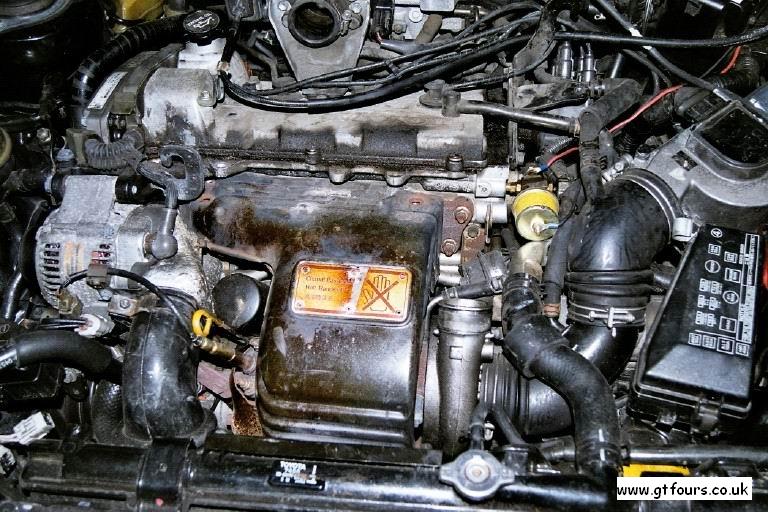

185 engine bay. Intercooler removed... |
...heat shielding removed... |
...the side view clearly shows the lambda sensor and the cat |
With cat removed |
|
 |
 |
 |
 |

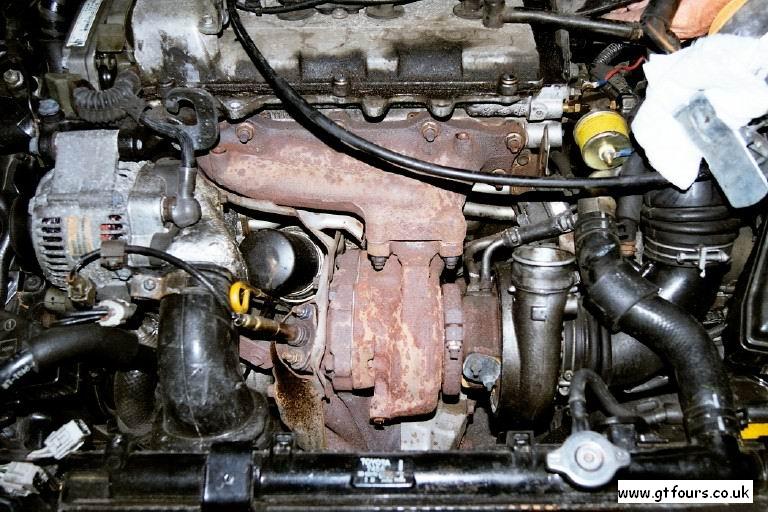

Side view - note the twin wastegate exit setup |

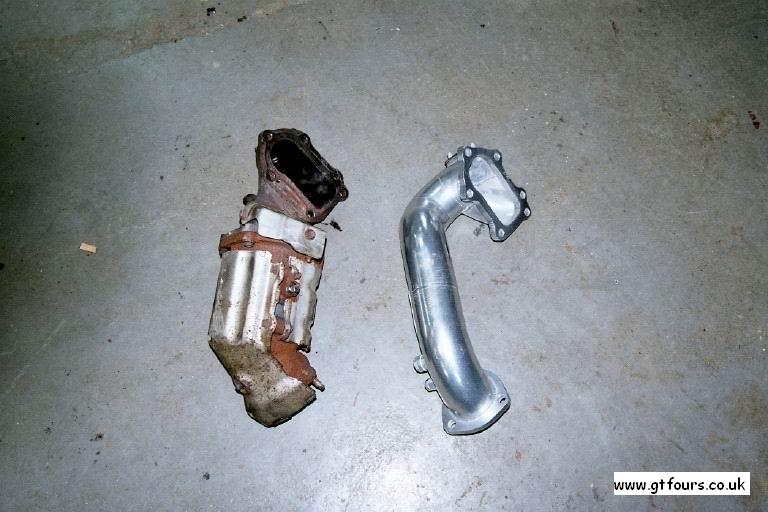

The cat compared to the much lighter Aussie downpipe |
The Aussie fitted |
The first exhaust section bolts onto the cat... |
|
 |
 |
 |
 |
...runs along and over a cross member - note the heat shielding |

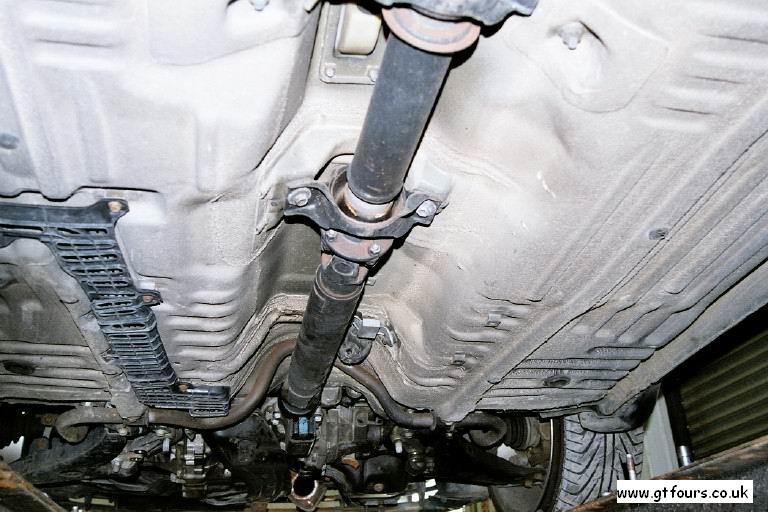

runs back next to the propshaft... |

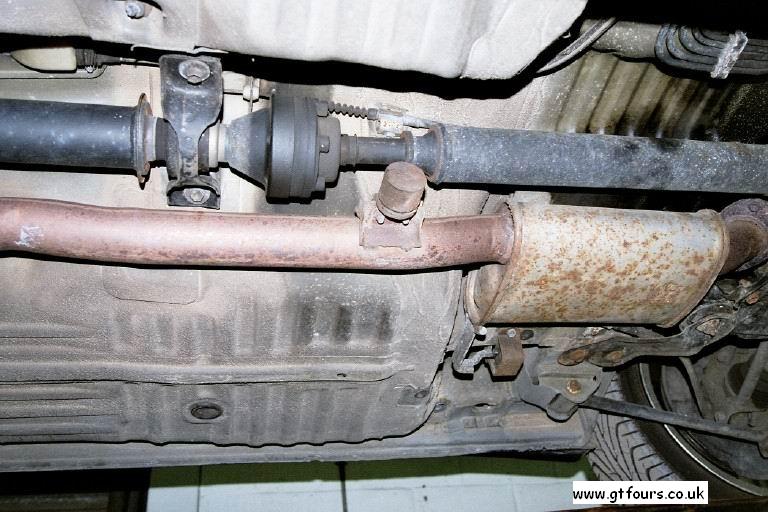

...the rear box - note the CV joint in the propshaft |

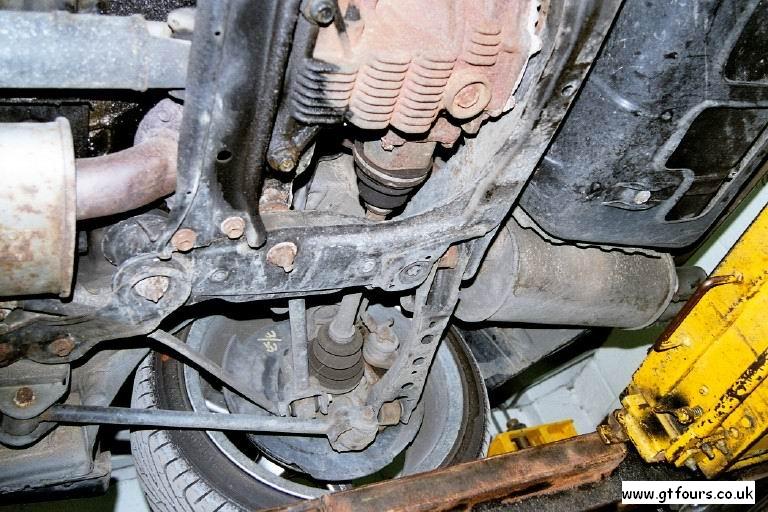

This is the tricky bit, running the exhaust over the rear driveshaft etc |
|
 |
 |
 |
 |
Access is awkward |
Some "help"! |
The exhaust has to travel through this small gap, without knocking! |

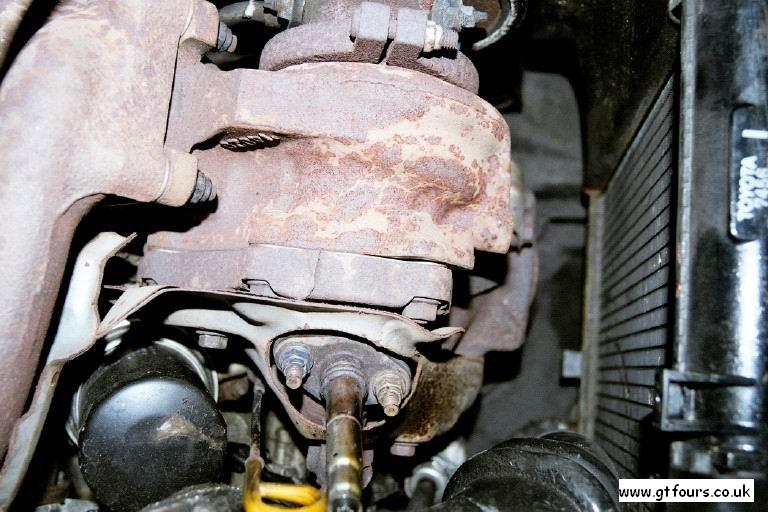

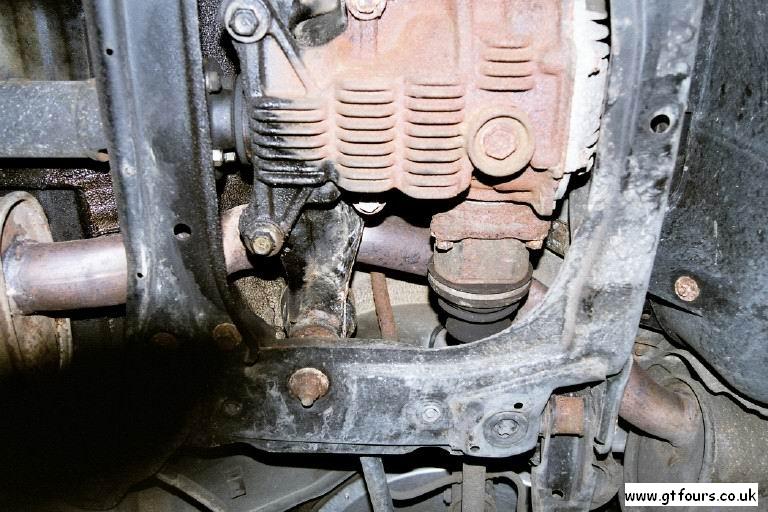

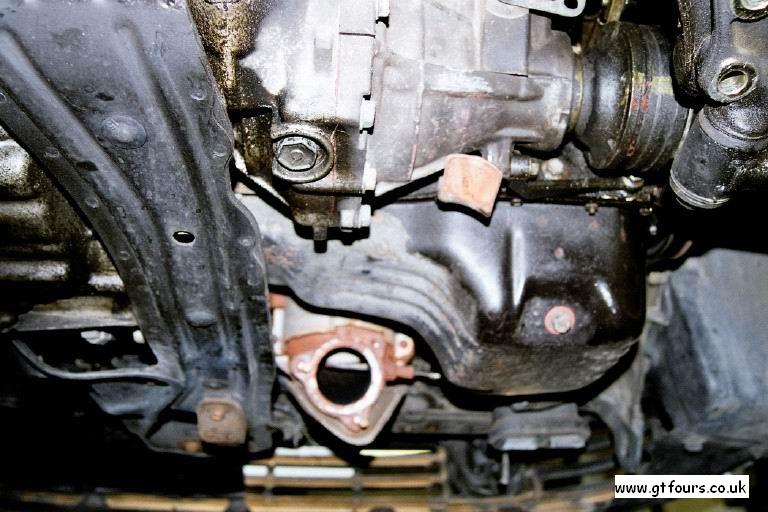

With the flex section removed you cat see the exit from the cat, and how close it runs to the sump |
|
 |
 |
 |
 |
With exhaust removed |
Going from the front of the car we have, the flexi section... |

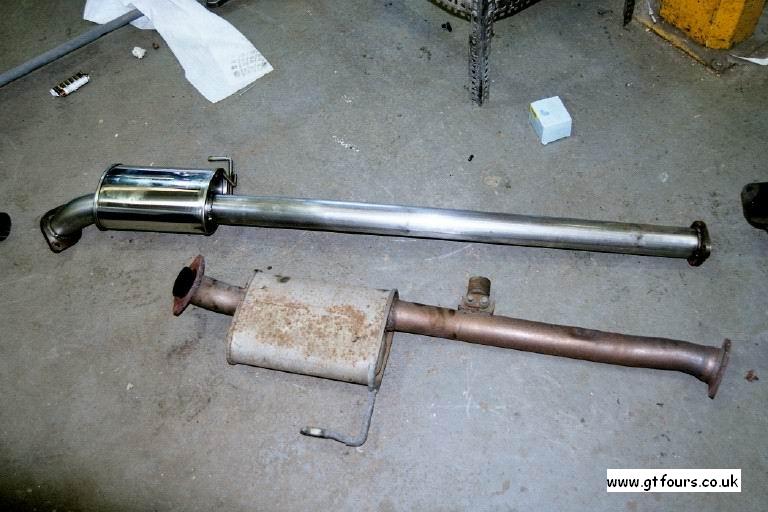

...then the mid section... |
...then the tail pipe |
|
 |
 |
 |
|

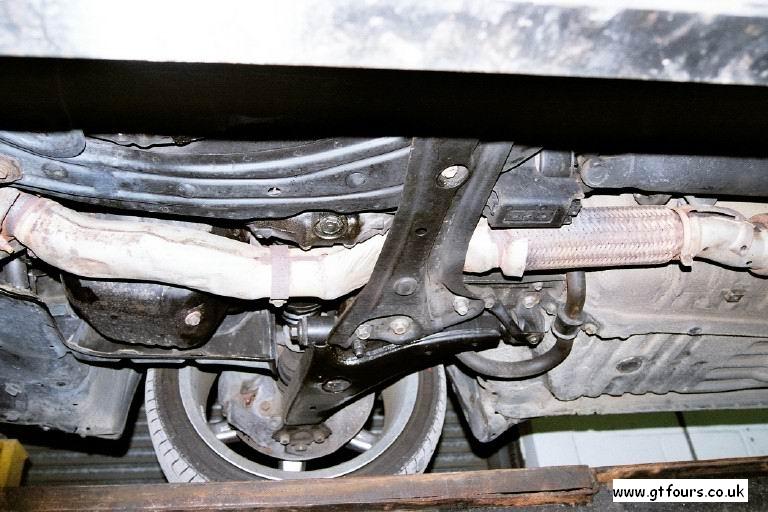

The fitted exhaust, note how tight access is and the flexi section |

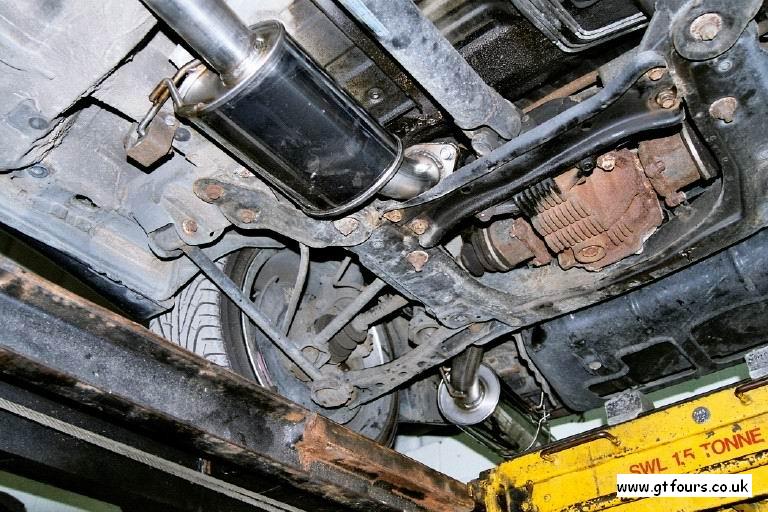

The new exhaust running over the rear drive shaft |
Tucked nice and close to the rear bumper |
|
