Haltech E6K
![]() |
![]() |
![]() |
![]() |

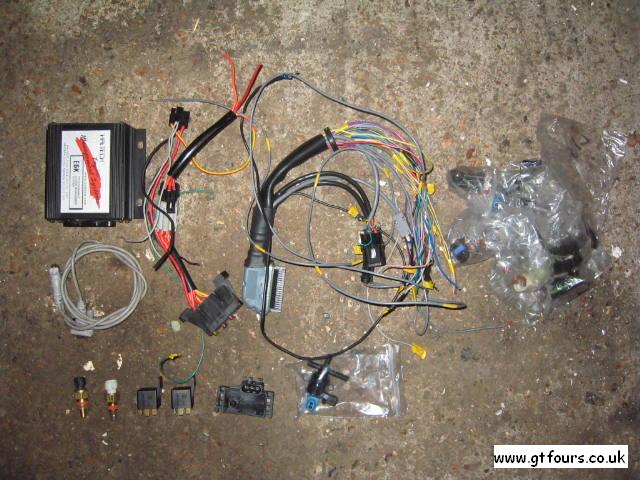

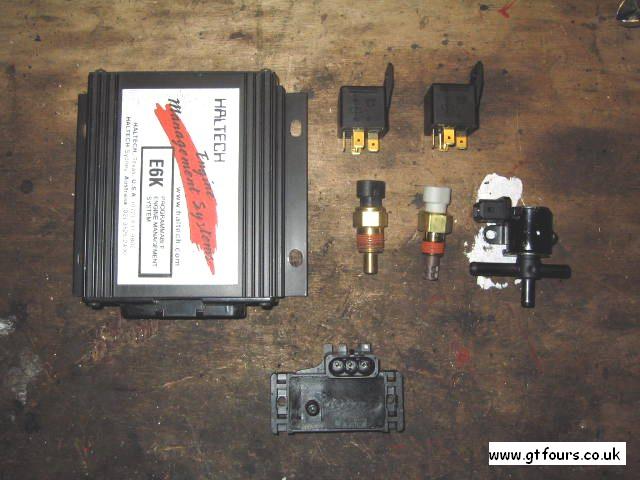

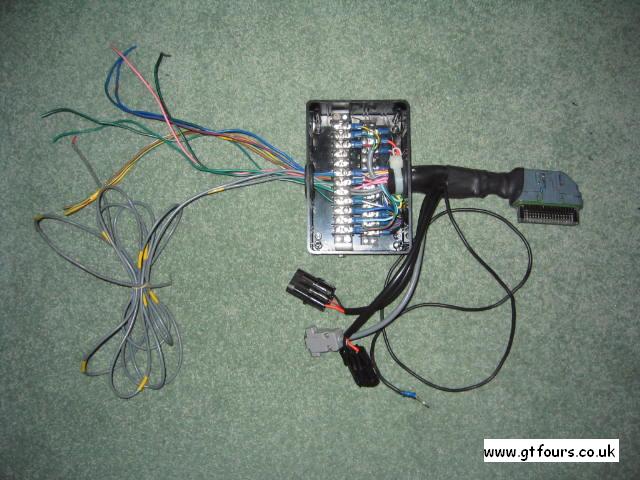

All sensors, connectors, wiring and the ECU | ECU and sensors | ECU wiring loom split and a homemade junction box installed | Original ECU connectors |
![]() |
![]() |
![]() |
![]() |

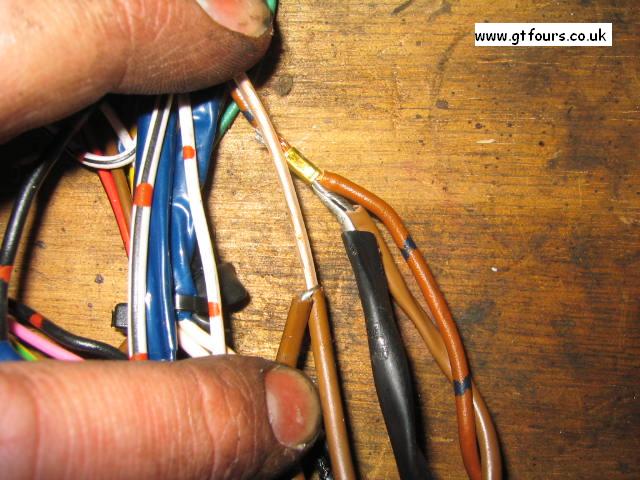

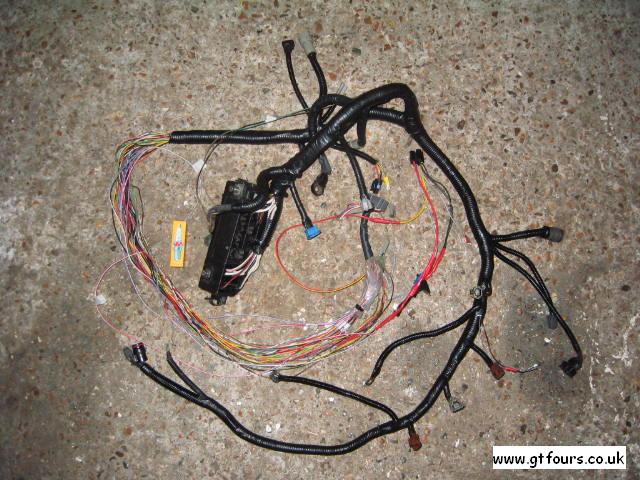

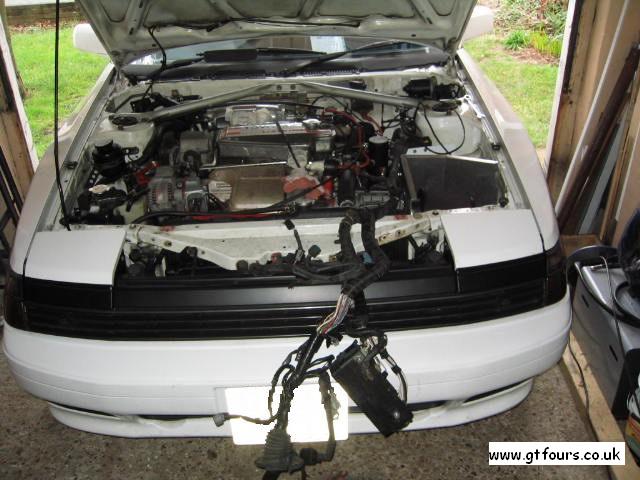

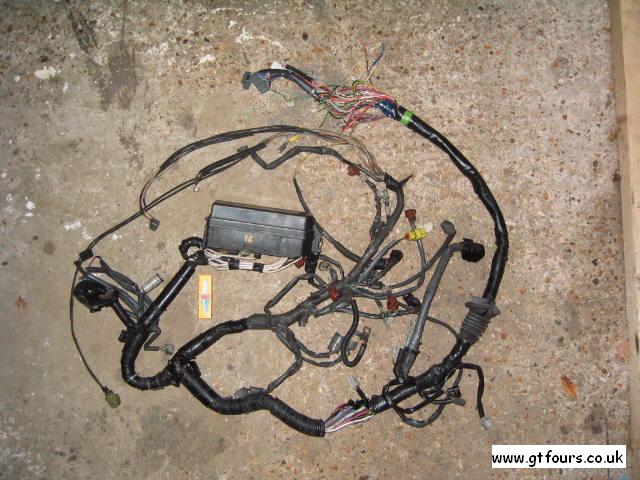

The loom on its way out of the car | The original loom | Knock sensor wiring. The original loom was full of crimps, connecting "wires" to other "wires" | Partially completed replacement loom |
![]() |
![]() |
![]() |
![]() |

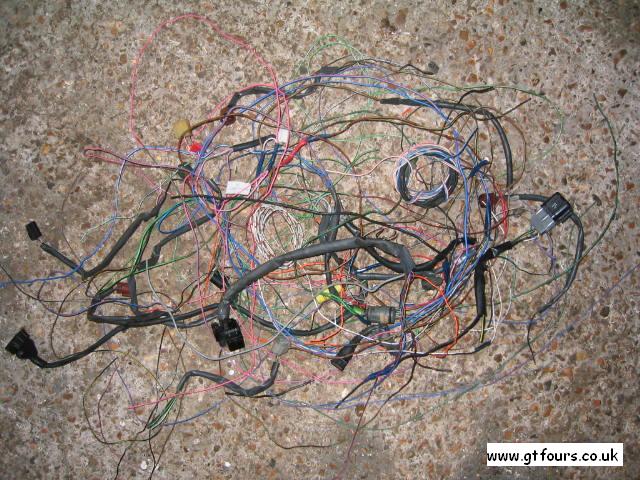

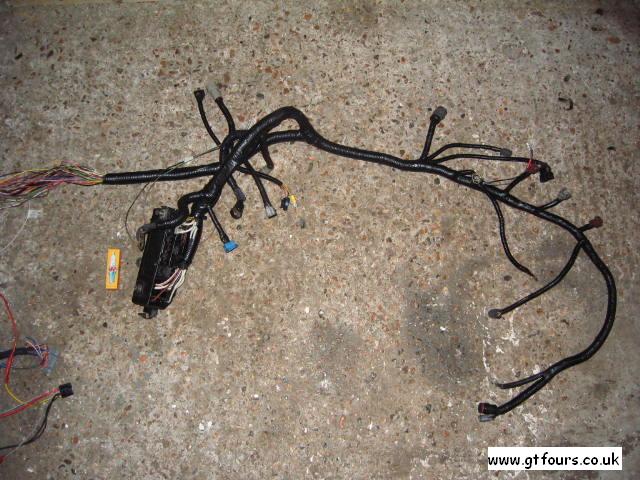

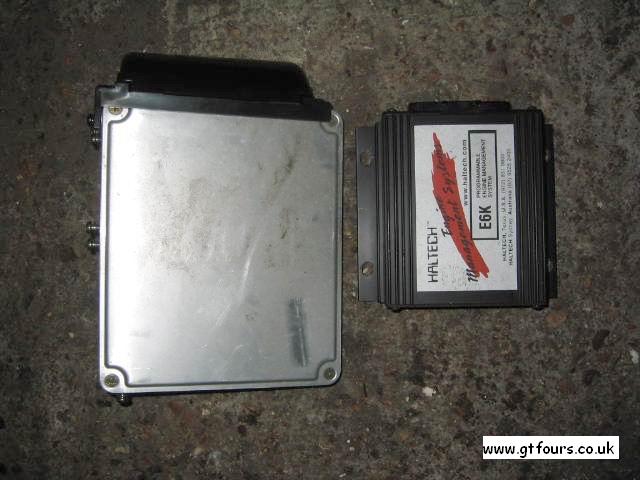

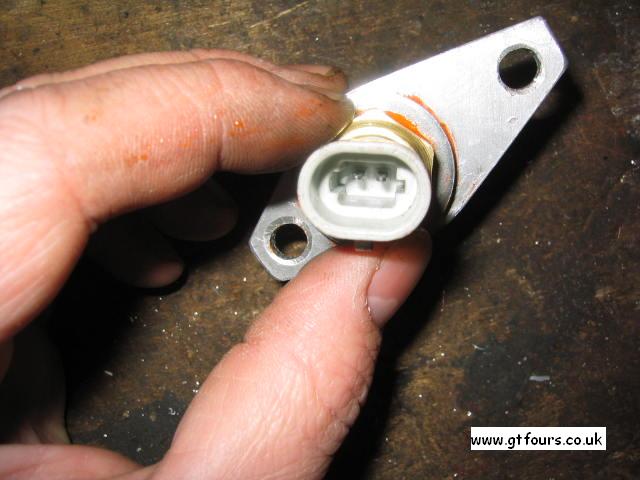

Almost completed. Note how much less wiring/connectors are required | Wiring removed from the "old loom" | The stock vs Haltech ECU | Air temp sensor |
![]() |
![]() |
||

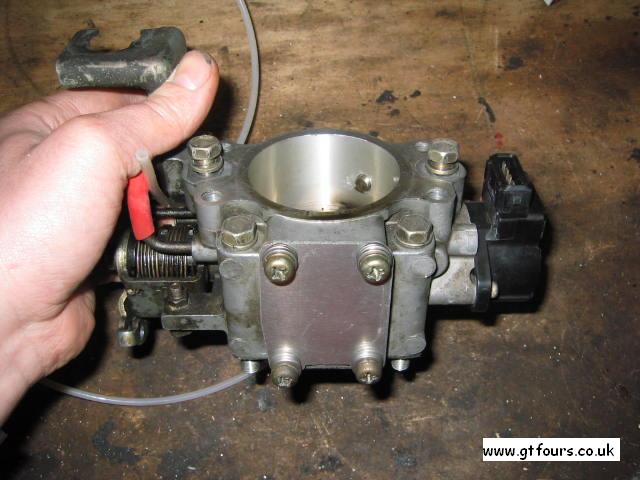

ISC ditched and blanked off | The air temp sensor temporarily installed |
