165 v 205 Injectors

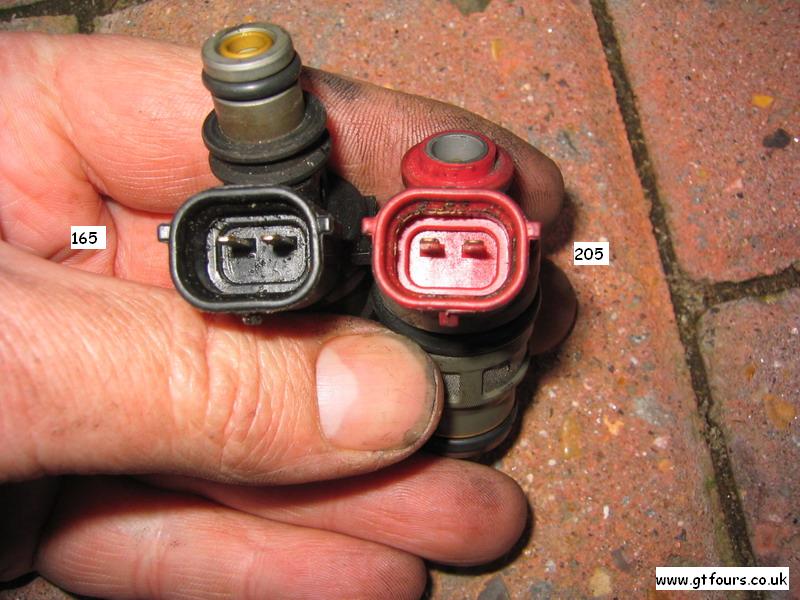

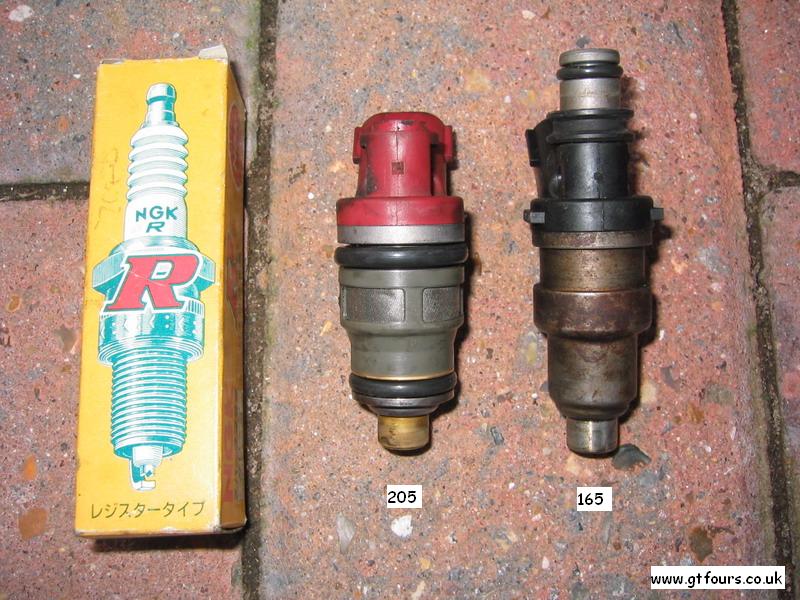

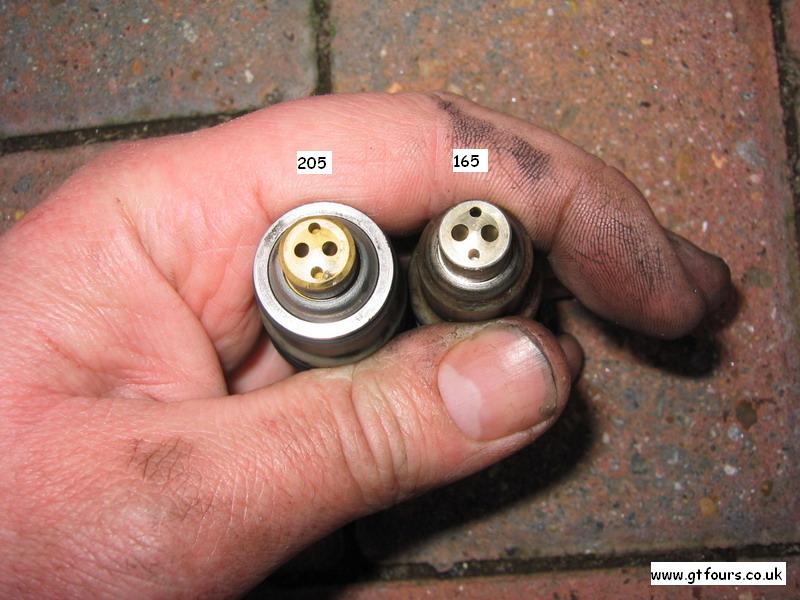

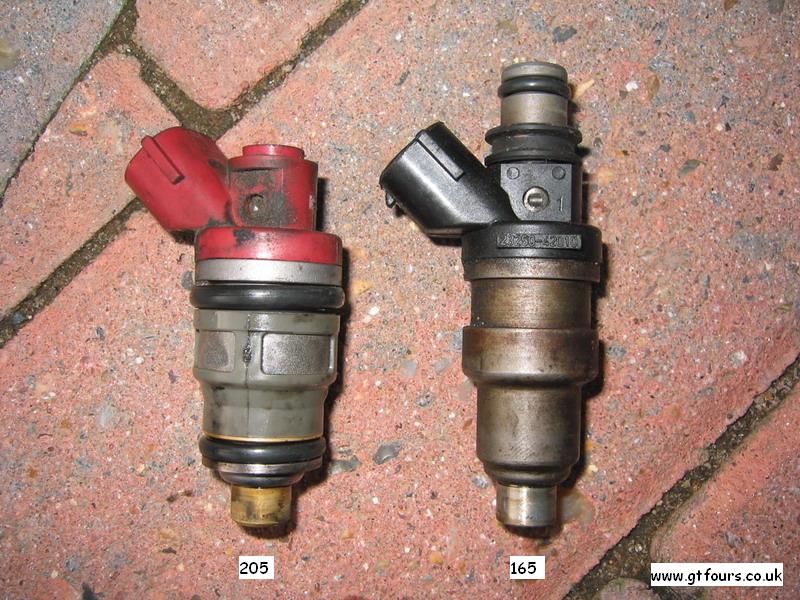

The injectors	The 205 has side feed injectors, the 165 has top feed	Notice that the end of the injectors have 2 larger nozzles. These squirt fuel at the intake valves	The connections for the injectors are the same for all the GT4s

• 165 - 430cc - top feed
• 185 - 430cc - side feed
• 205 - 540cc - side feed 2.8Ω
• All GT4 injectors are low impedance
• Only the 165 has top feed injectors, both the 185 and 205 have side feed injectors
