205 v Sard 800 Fuel Injectors

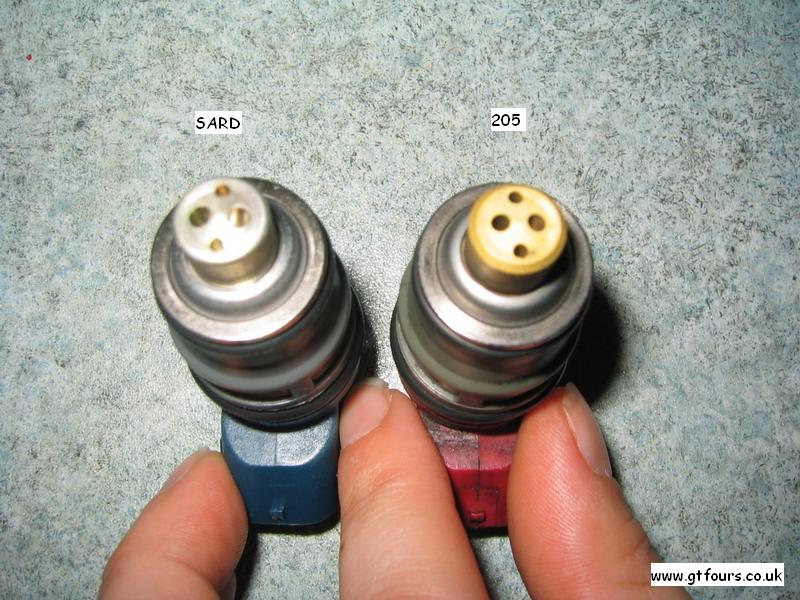

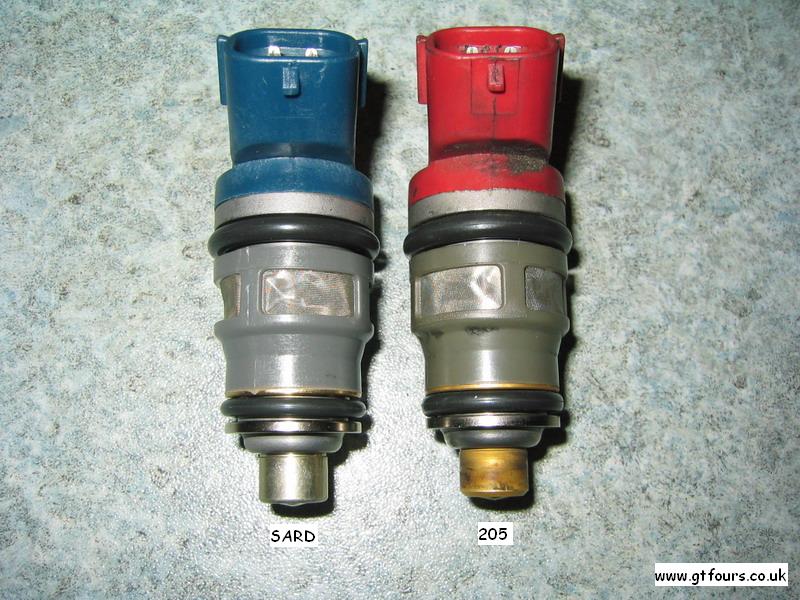

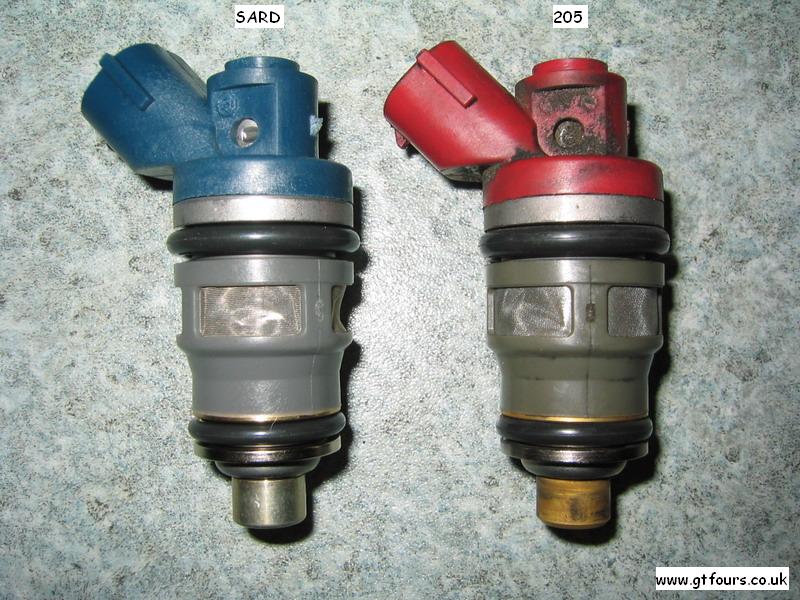

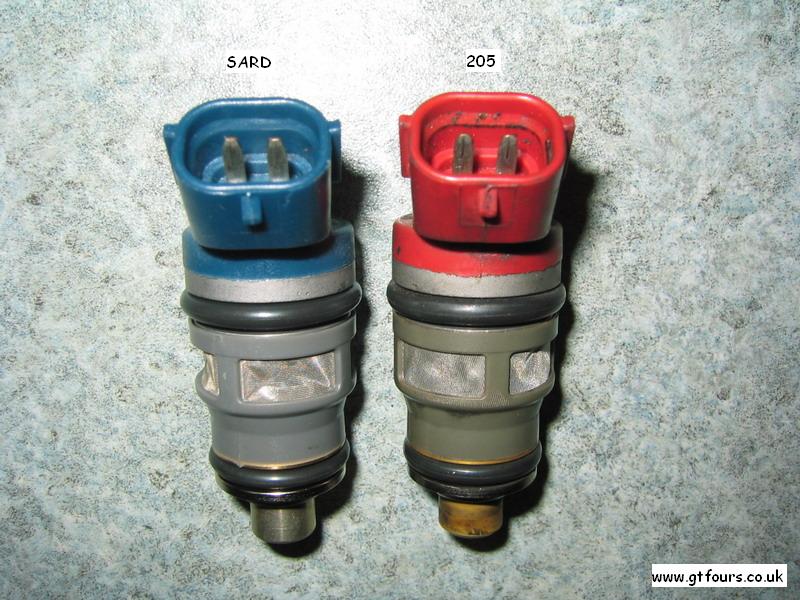

The injectors...	Note the upper and lower o-rings	And the side feed strainer	The end of the injectors. Note the 2 larger holes through which the fuel is squirted
The holes on the Sard injectors are slightly larger than the stock 540cc 205 injectors

• Low impedance injector 2.7Ω, (540cc 205 injector 2.8Ω)
• Part number 63517
• Flow rate 800cc/min, (true flow rate may be 850cc/min)
• Lag time - 0.75ms. (Stock 205 injector lag time - 0.56ms)
• Direct replacement i.e. drop in with no wiring alterations required, simply plug into the stock wiring loom
• These injectors are manufactured by Nippon Denso, part number - 1001-87093
