165 Intake Manifold
![]() |
![]() |
![]() |
![]() |

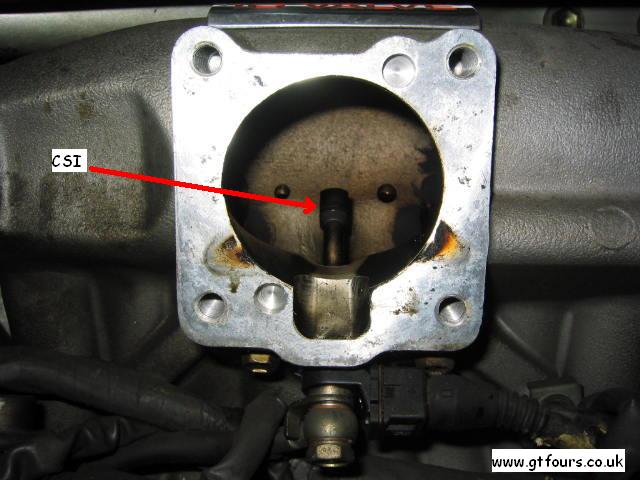

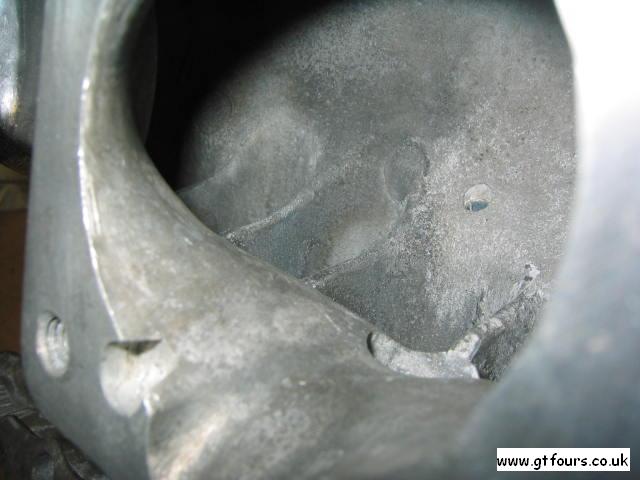

Inlet to plenum chamber. Note the CSI injector in the centre | Cleaned and deburred intake | Another view | Whole manifold including TVIS assembly |
![]() |
![]() |
![]() |
|

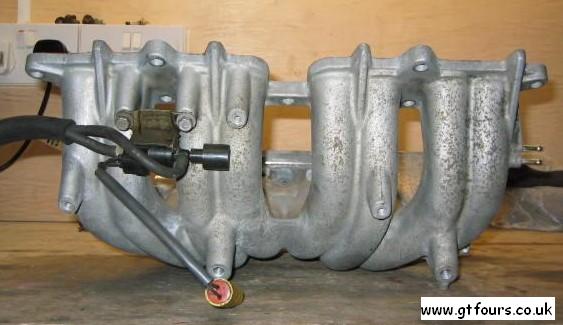

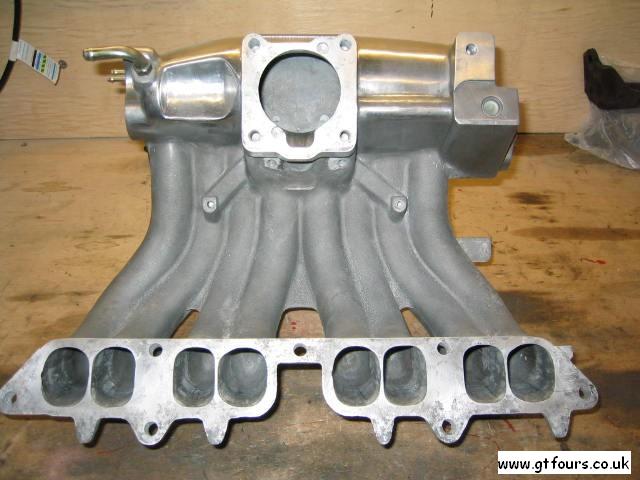

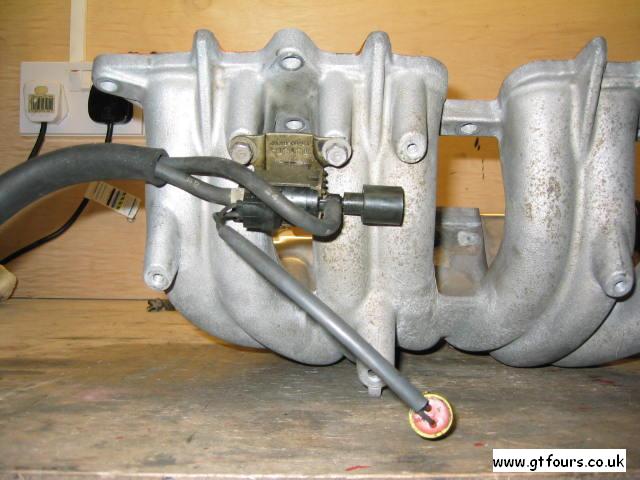

Cleaned and ported manifold | FPR VSV located on the rear of the manifold. It's a pig to get at, if you remove the manifold then I suggest that you don't put it back here! | Close up of the FPR VSV. This is used to prevent problems with re-starting and idle speed stability when the fuel temperature gets very high. The 165 is the only GT4 to have this VSV |
