205 Intake Manifold
![]() |
![]() |
![]() |
![]() |

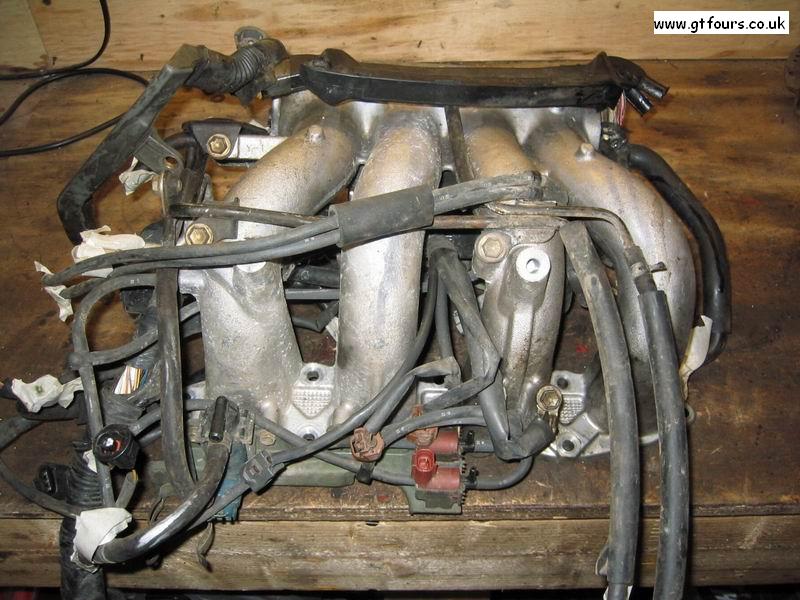

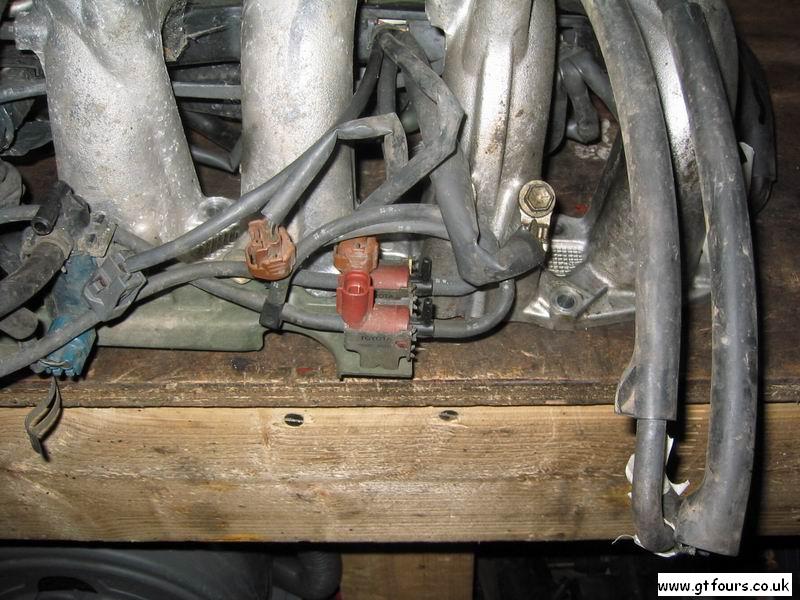

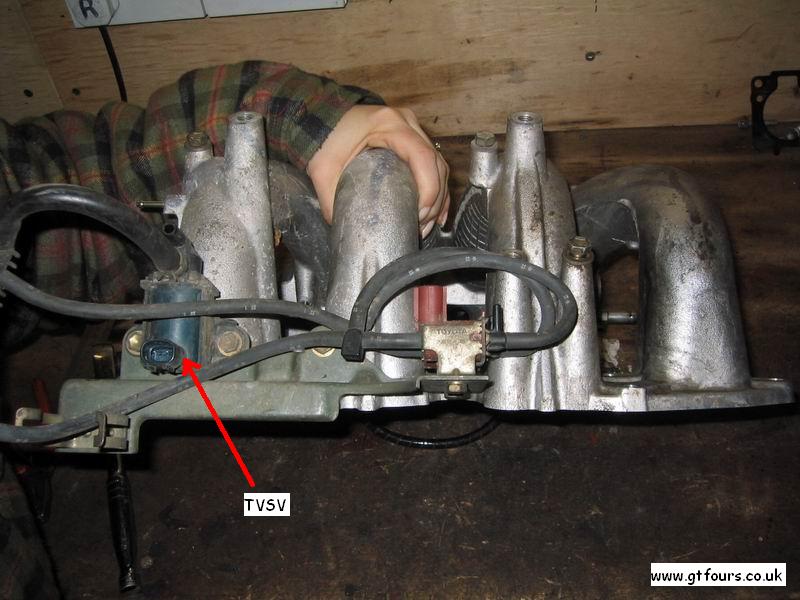

Rear of a WRC manifold | The WRC manifold appears to have a couple of extra VSVs, presumably for the Anti-lag system | Some pipes removed and the TVSV and extra VSVs can clearly be seen | Another view of the rear of the manifold |
![]() |
![]() |
![]() |
![]() |

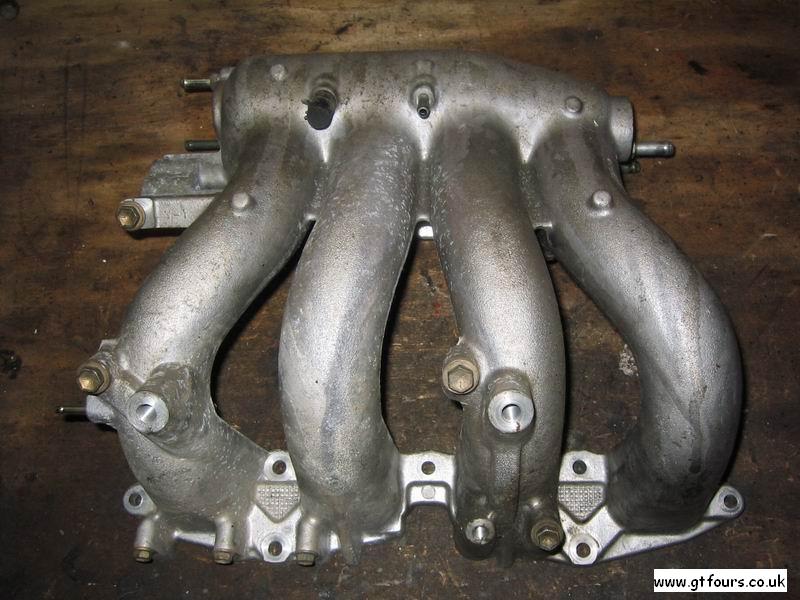

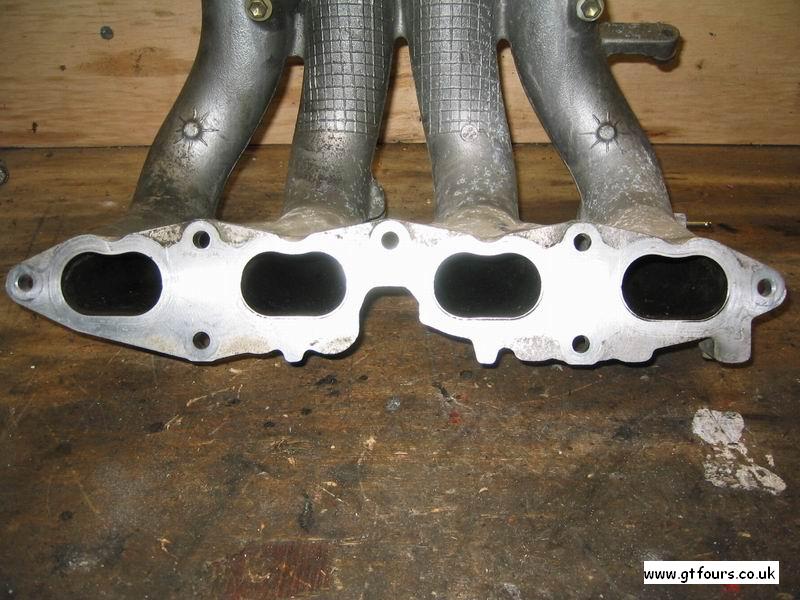

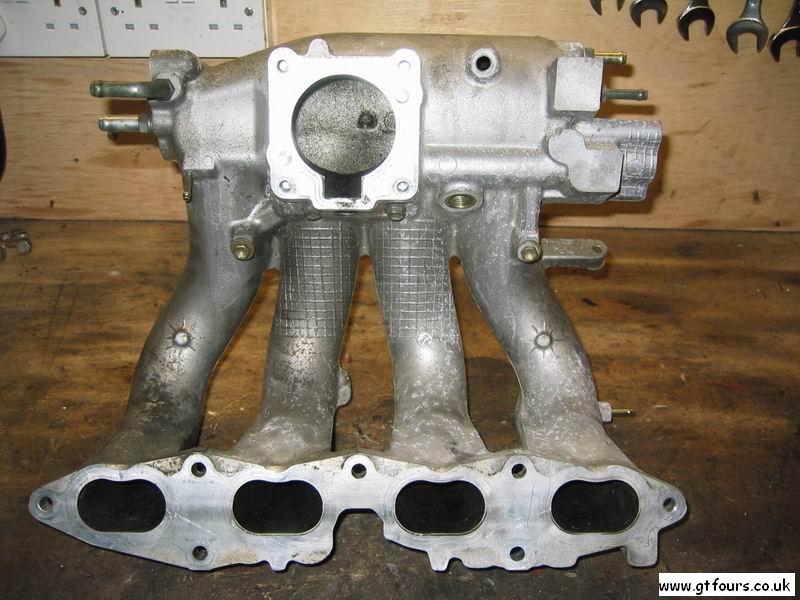

The design of the manifold is quite different to that of the 165 or 185 | There are only 4 runners vs the 8 runners on the 165 and 185... | ...the 205 manifold does not use the TVIS system | Close up of one of the runners |
![]() |
![]() |
![]() |
![]() |

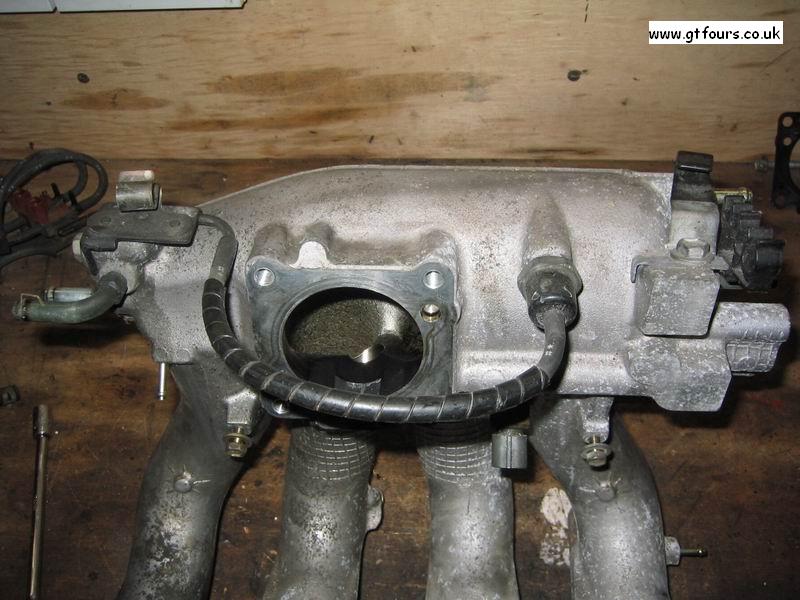

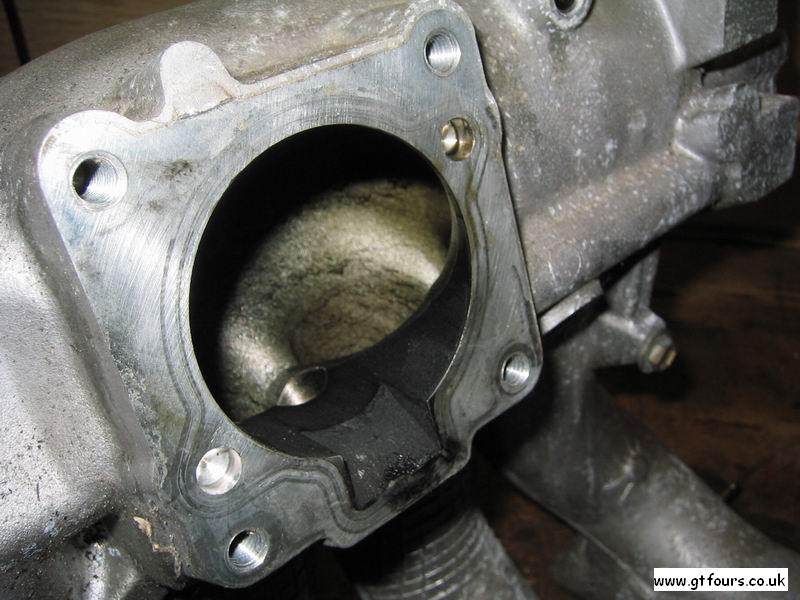

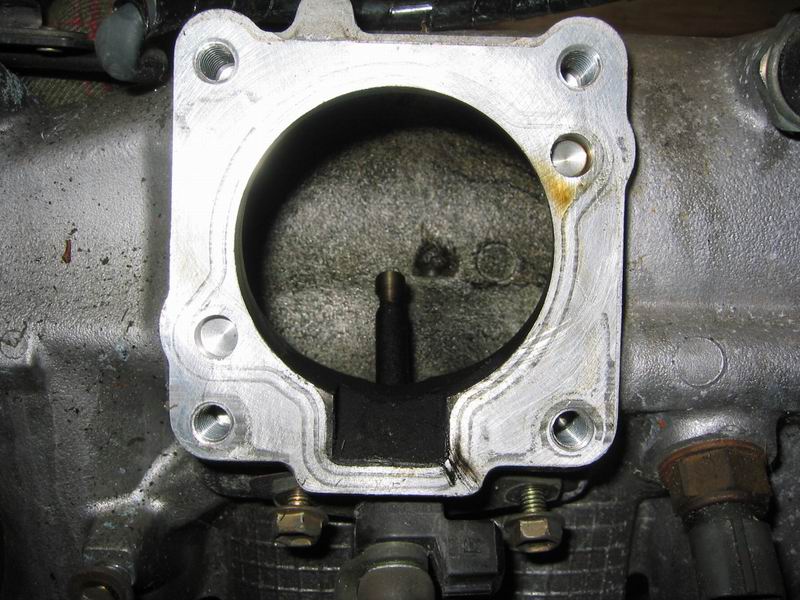

This pipe feeds the manifold pressure to the Turbo Pressure Sensor | Throttle body mounting point. Note the Inlet Air Temp sensor has been removed from adjacent to the bottom right hand corner of the throttle body mounting | The WRC had what looks like a cold start injector in the mouth of the intake - this appears to be a form of Water Injection system | The design of the runners are smoother than that of the 165 or 185 |
![]() |
![]() |
||

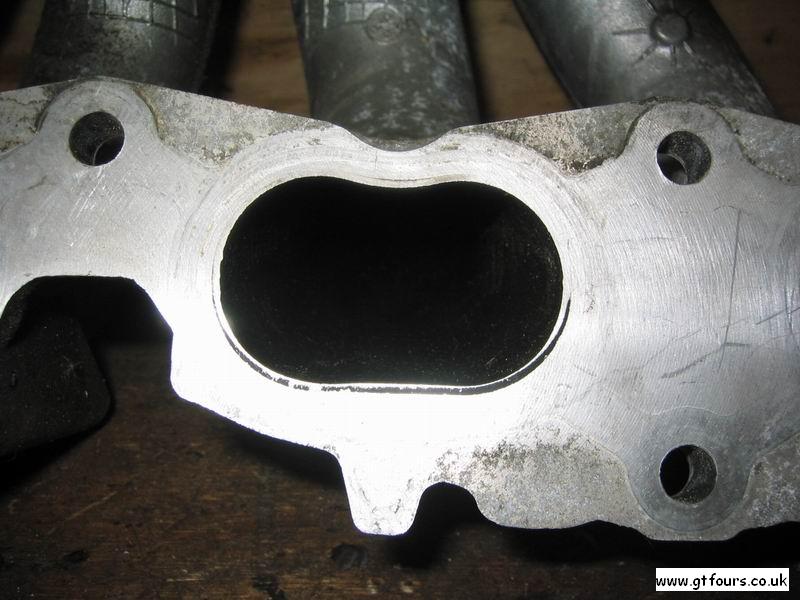

Close up of the runners | Side view of the manifold |
