205 Engine Oil Pump
The sprocket measures 62.2mm OD with 25 teeth

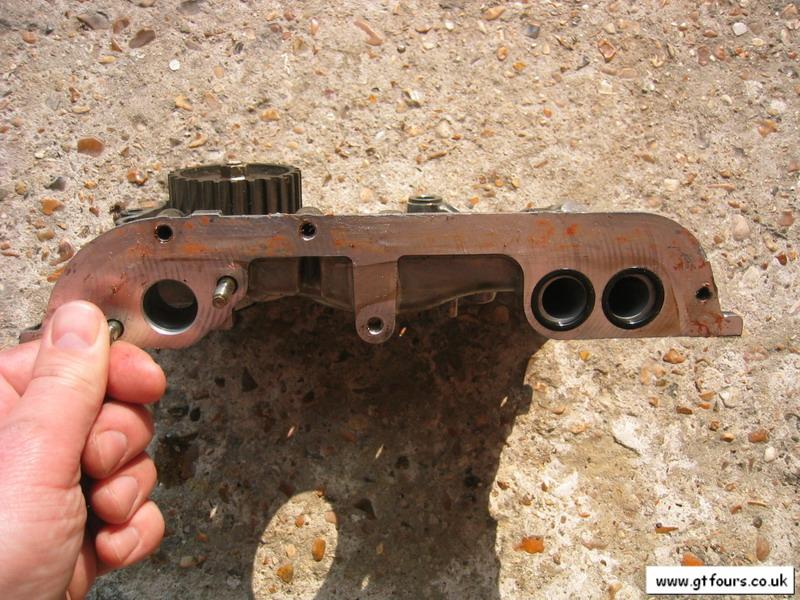

View of the bottom of the pump, note the 2 sealing o rings

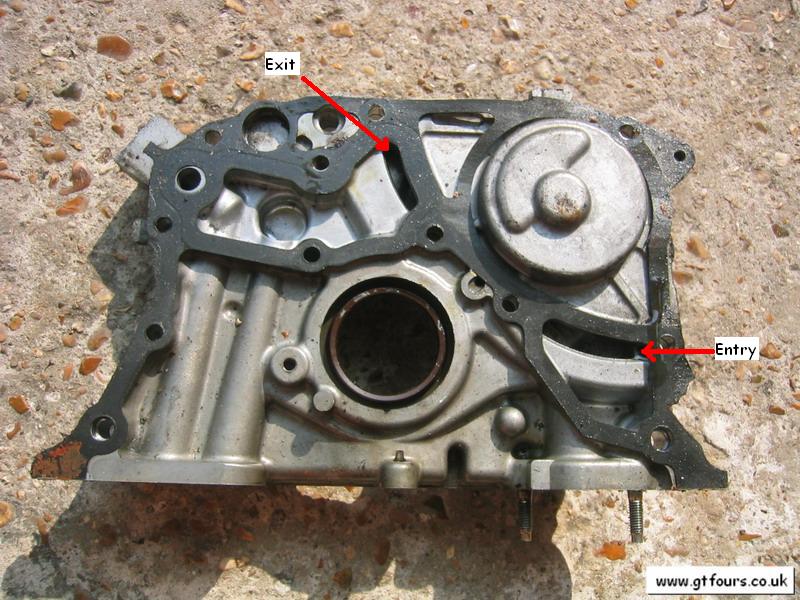

Rear view. The input to the pump is at the mid right hand side, output top middle

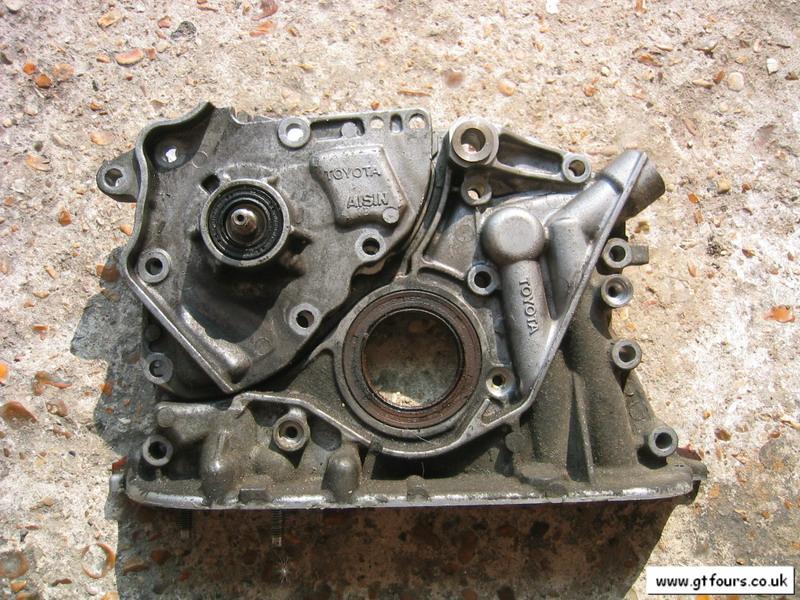

With the sprocket removed

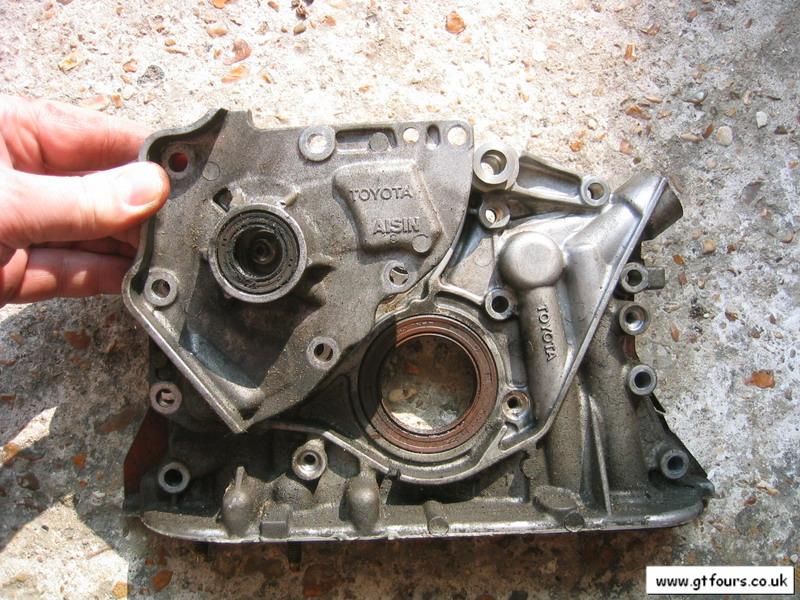

Removing the pump cover
Exposing the insides of the pump

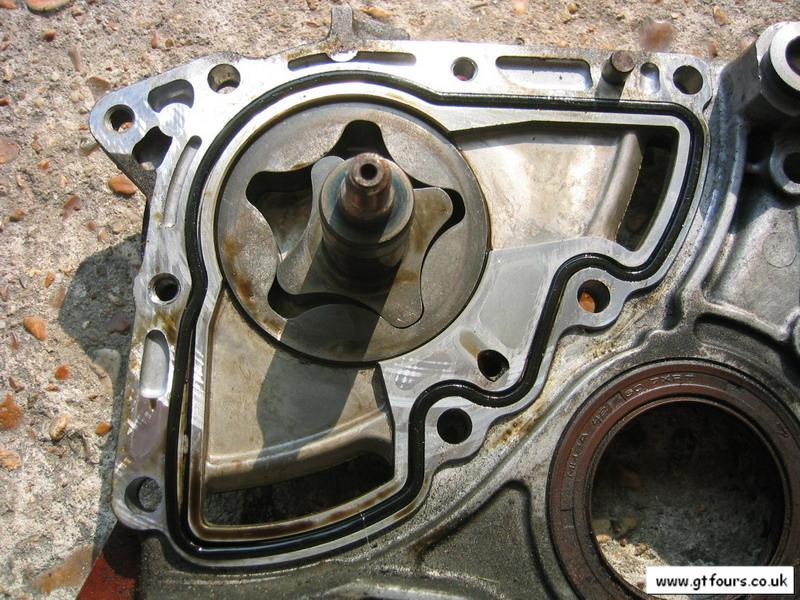

Close up of the pump

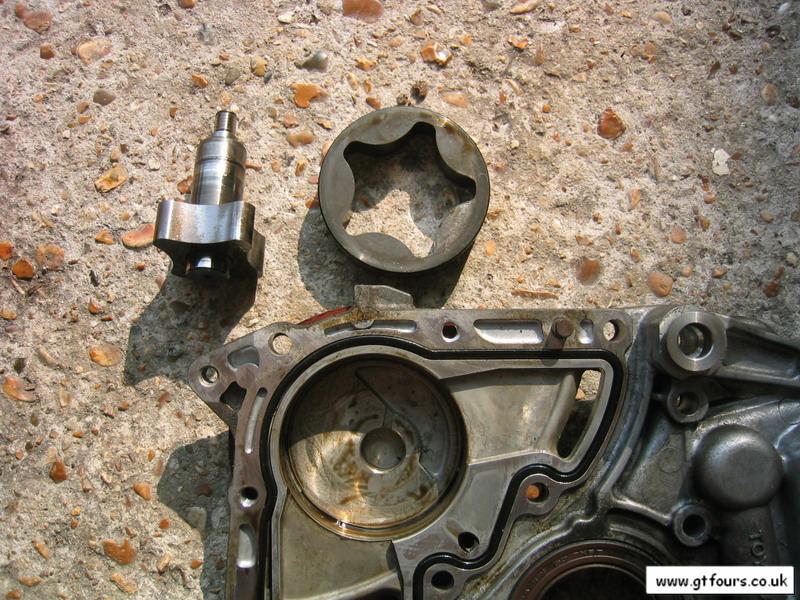

Removing the gerotor from the pump
Both sections of the pump removed
Picture shows the width of the pump

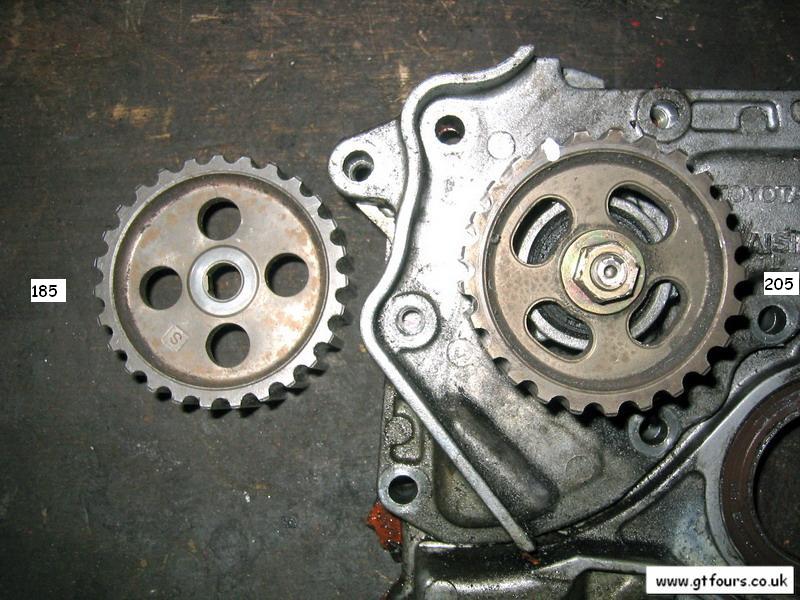

Comparison of a 185 and 205 oil pump sprocket
Notes
185 oil pump has 27 teeth on the sprocket, 205 has 25
185 oil pump sprocket 67.3mm OD, 205 62.2mm OD
