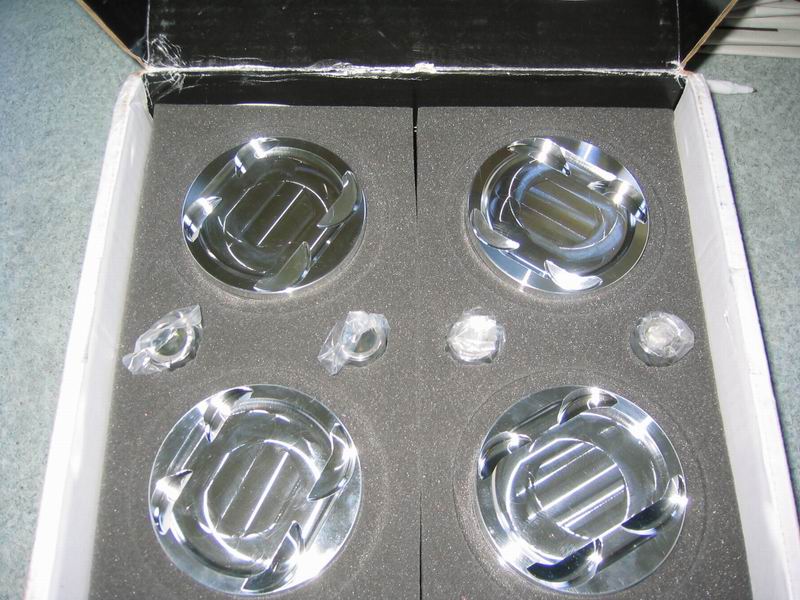

CP obviously care about their product as they arrive well protected |

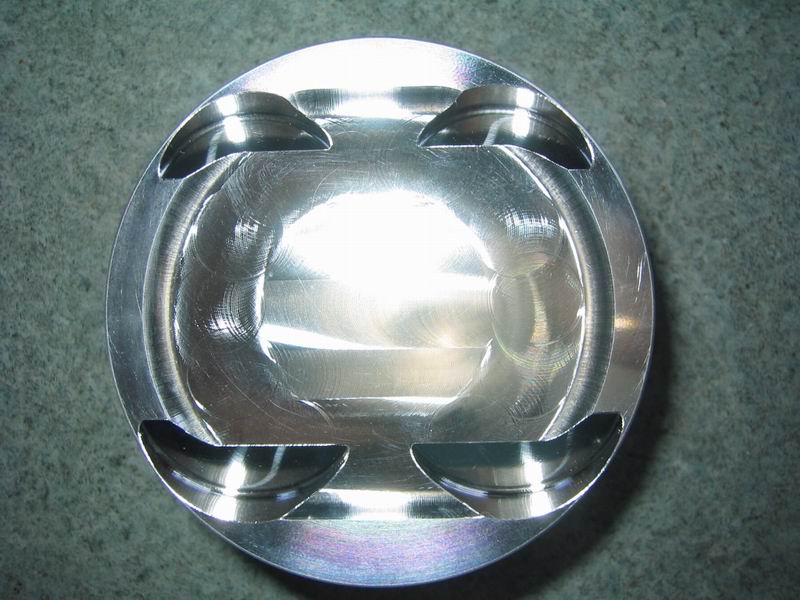

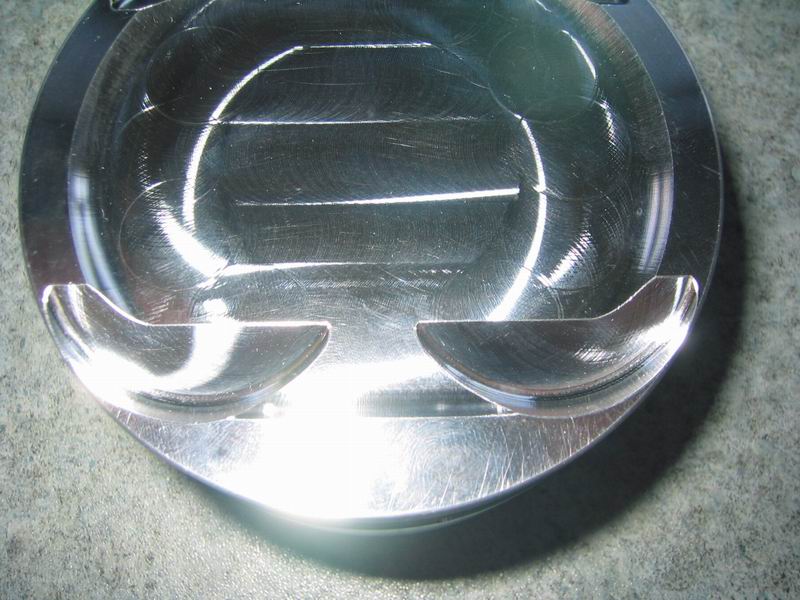

Top of the piston |
Machining marks are visible but cannot be felt! |

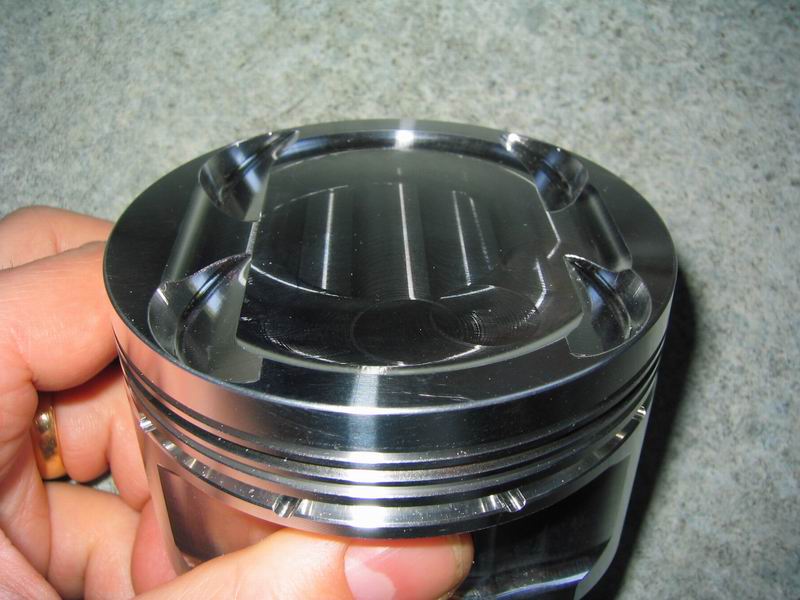

Side view showing the dished nature of the top of the piston |
|
 |
 |
 |
 |

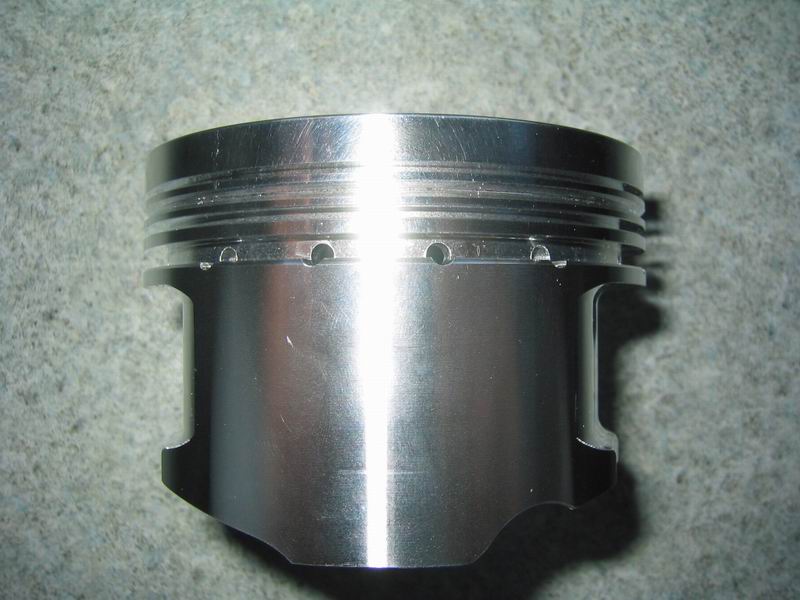

Side view |
Note the oil feed to the gudgeon pin |

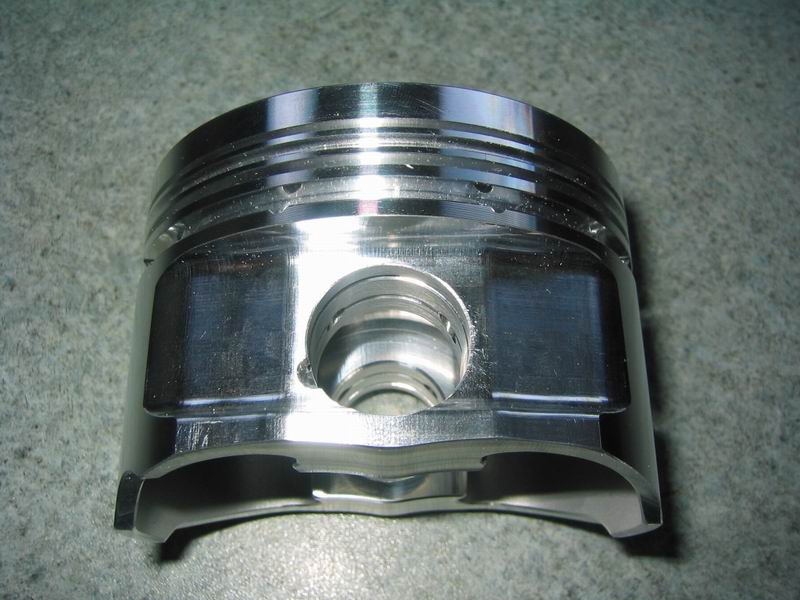

Piston side/skirt |
There is a raised portion above the centre of the pin location hole, probably to add strength |
|
 |
 |
 |
|
Note the oil squirter cut out in the skirt |

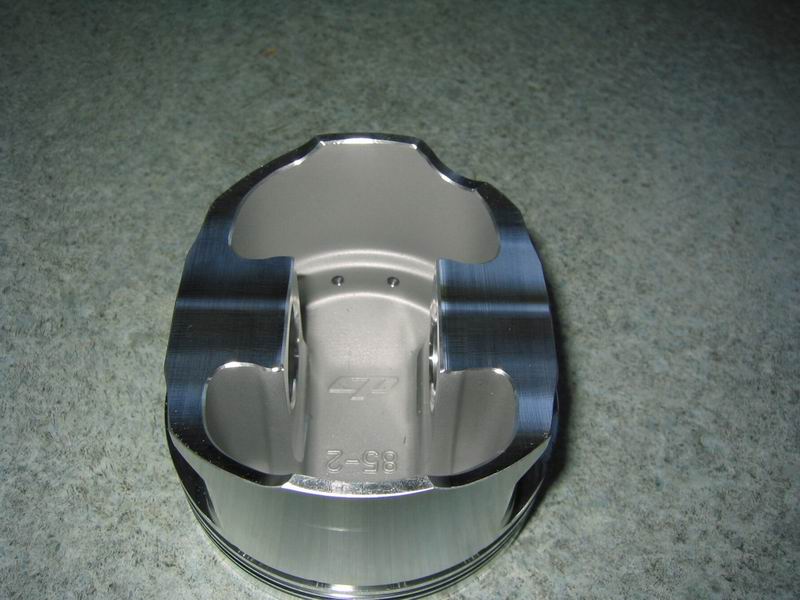

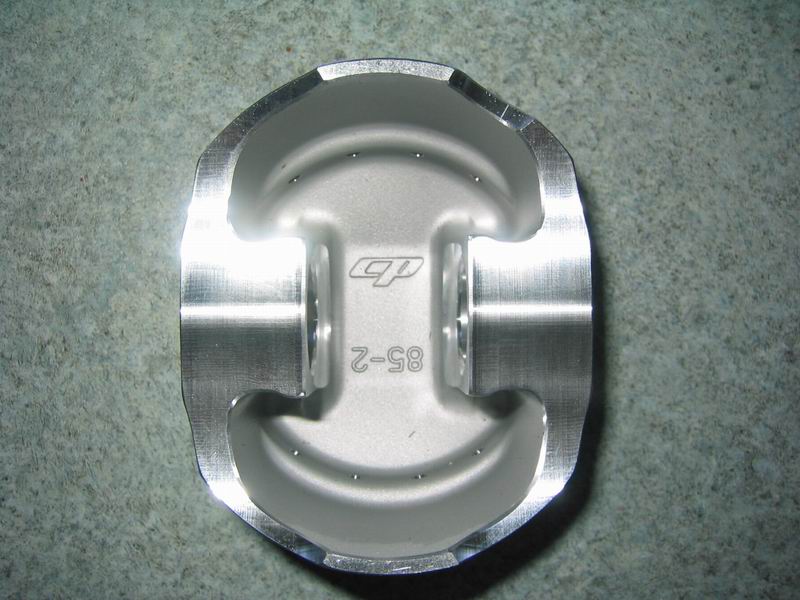

Above |

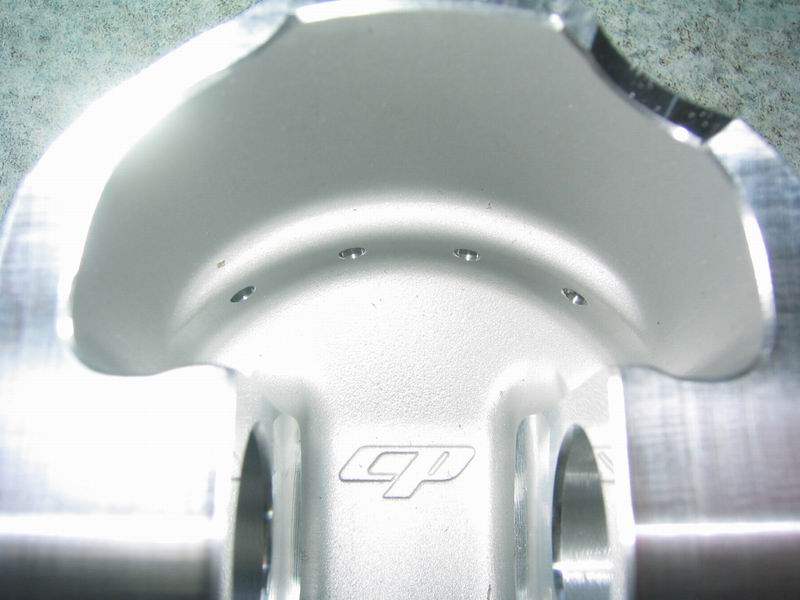

The cut out for the oil squirter can easily be seen here along with the oil drain holes from the scraper rings |
|
