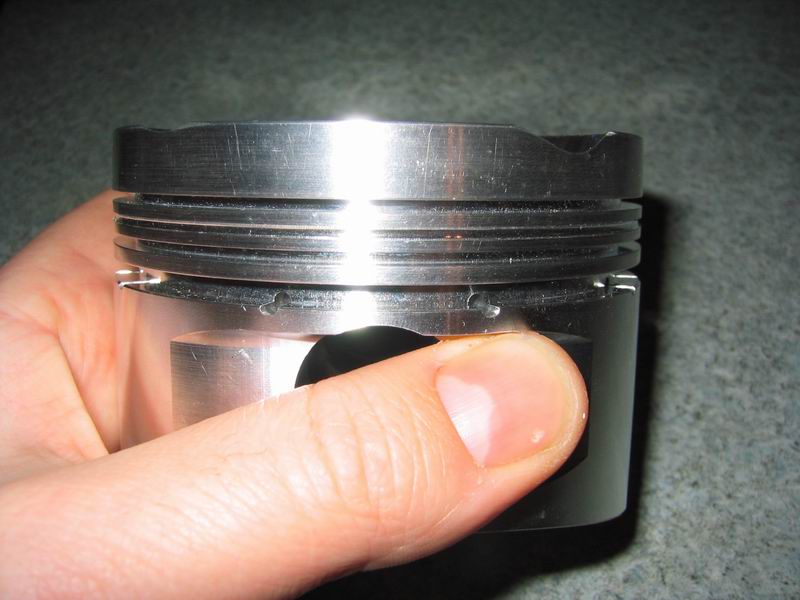

Side view showing the ring lands |

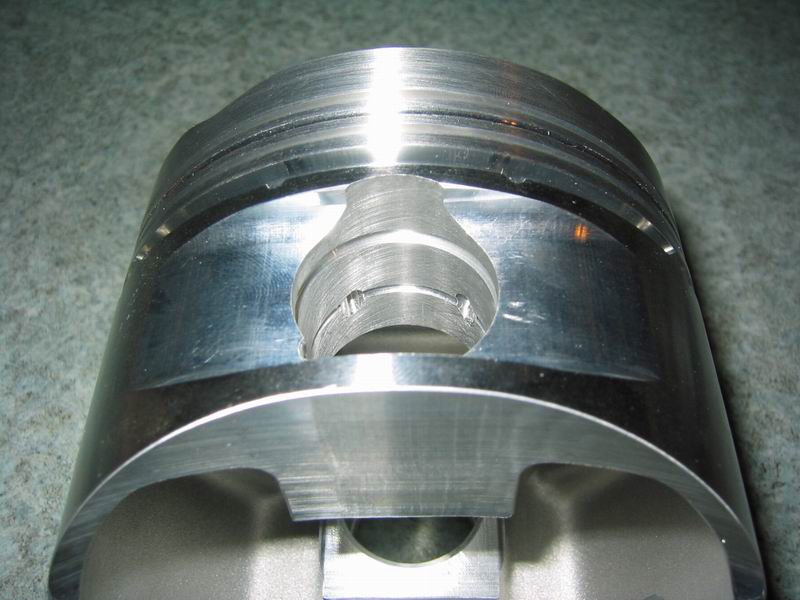

The honing marks on the gudgeon/wrist pin support are quite evident |

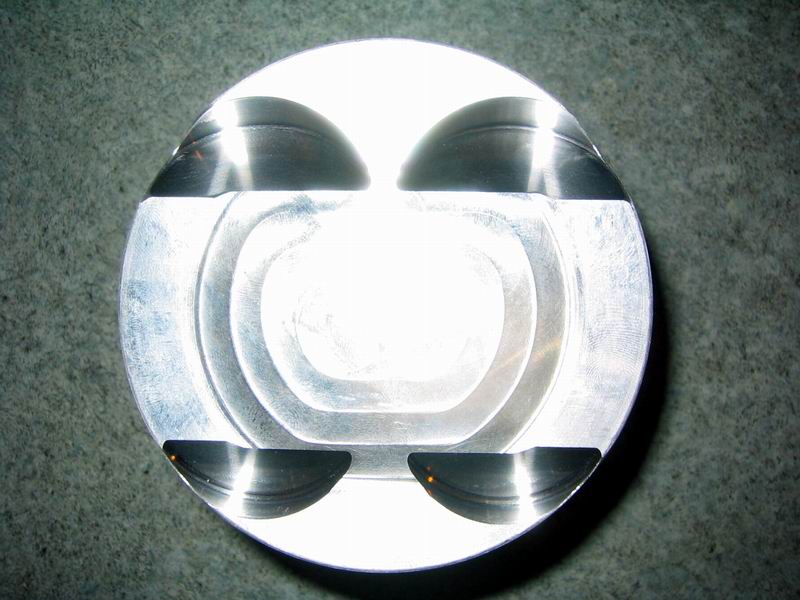

The top of the piston has recesses for the valves, and also the centre of the piston is dished |

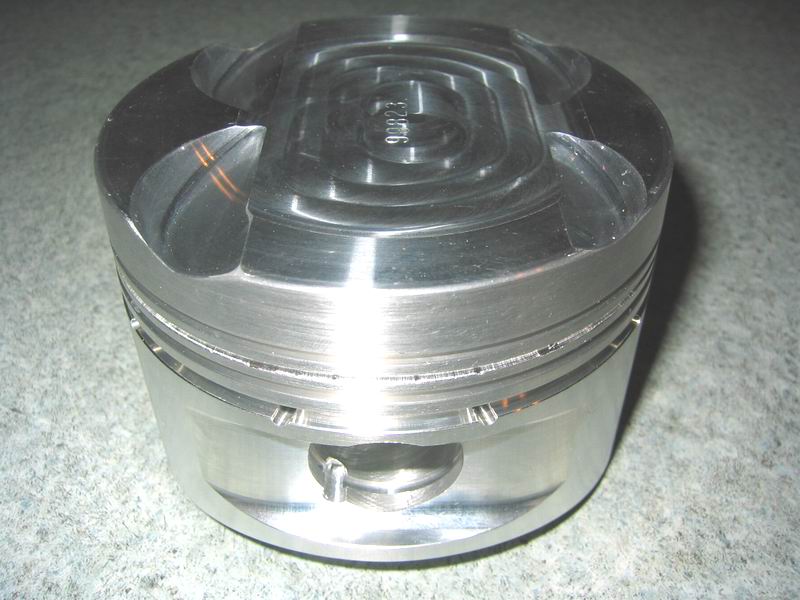

A side shot of the piston. Note the rough finish to the groove between where the rings locate...this appears to be a manufacturing problem |
