ST205 Koyo Radiator

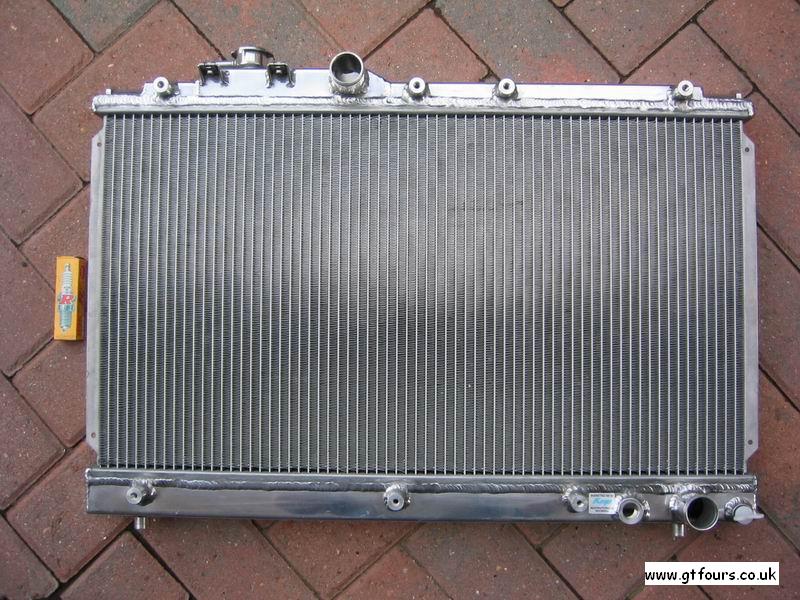

Side view
Annotated side view

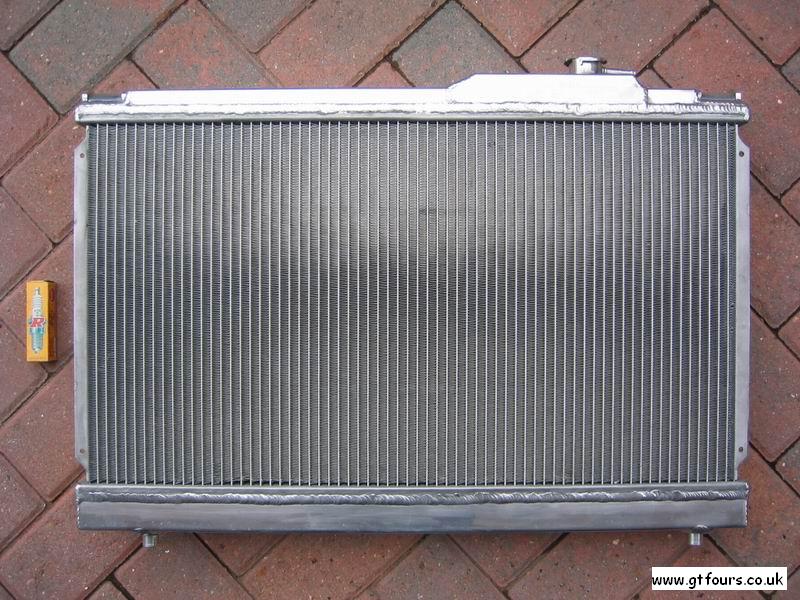

The other side view

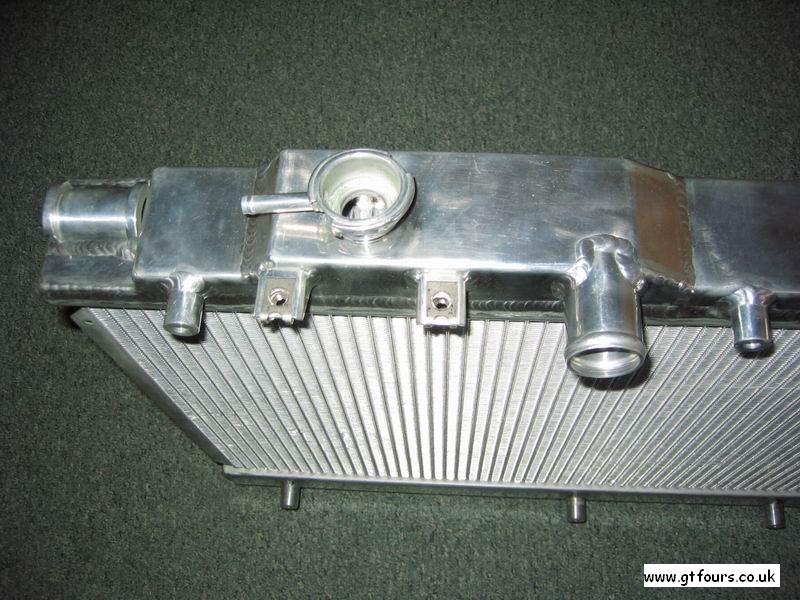

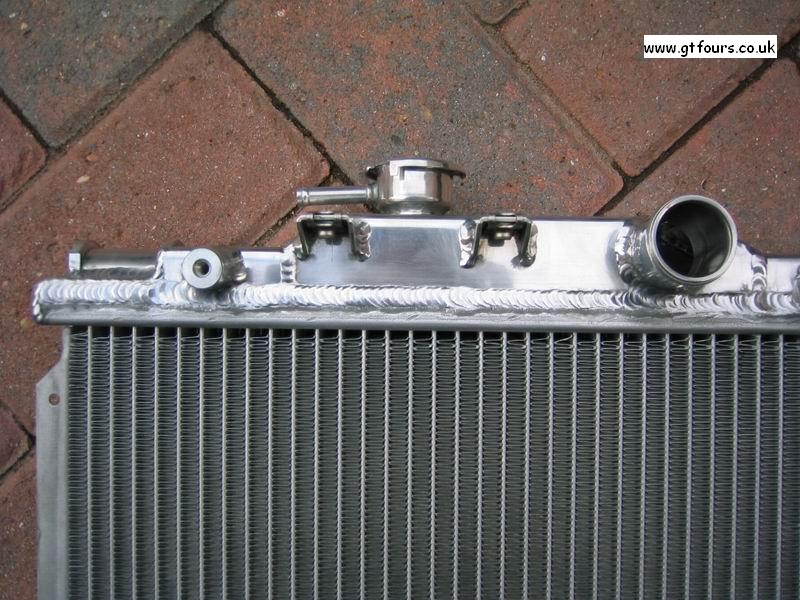

Close up of the top tank
The radiator cap is not the same fitment as a stock Toyota cap, but the radiator is supplied with it's own 0.9 bar cap

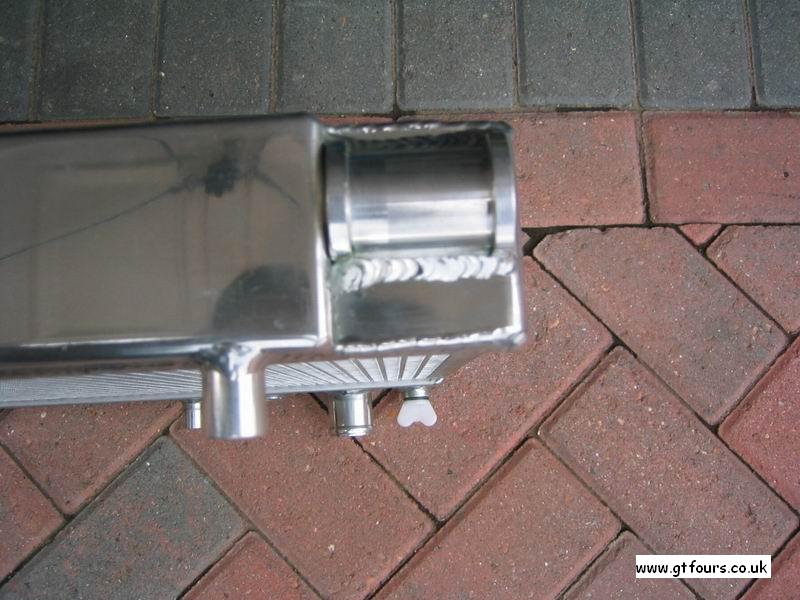

End view
The radiator can be fastened at the top to the car using the stock securing straps

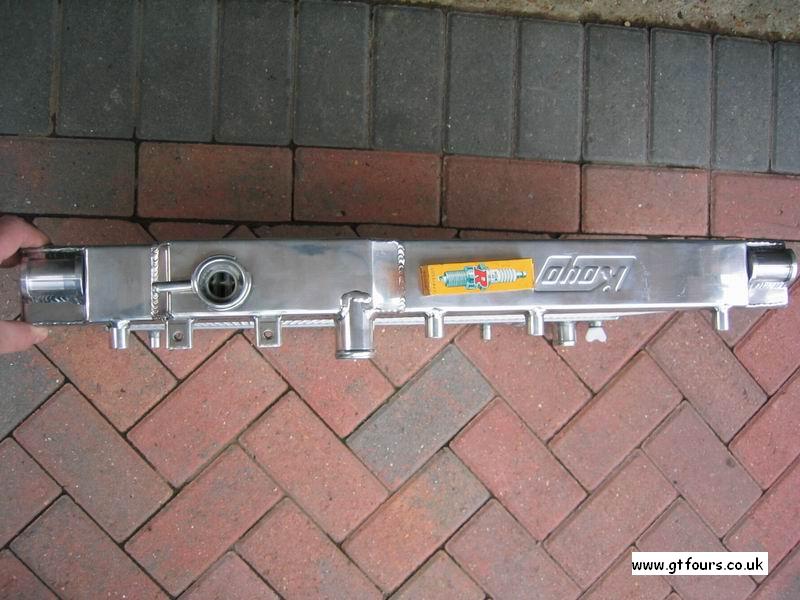

Top view

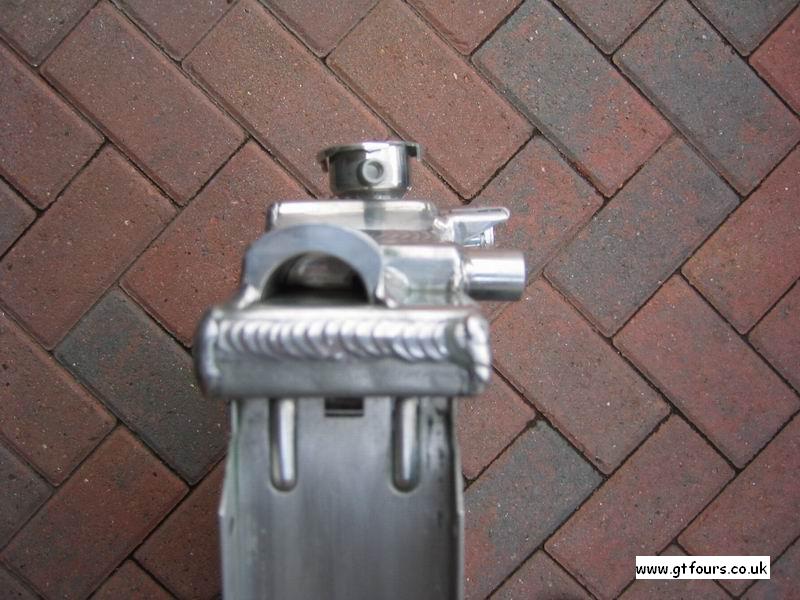

End view. The rad is ~50mm wide, a stock Toyota rad is ~25mm wide
Notes
Part number R1958 - solid aluminium double row
Some slight modification is required to the cooling fan cowling by the turbo compressor in order to fit this thicker radiator
Good quality!
Koyo also fabricate stock radiators, double row aluminium, (pictured above), and a double and triple copper radiator for the 205
Weighs 5.9kg
Will not fit the 165 or 185
