165 Engine Sensors
All the pictures are of 165 sensors...
![]() |
![]() |
![]() |
![]() |

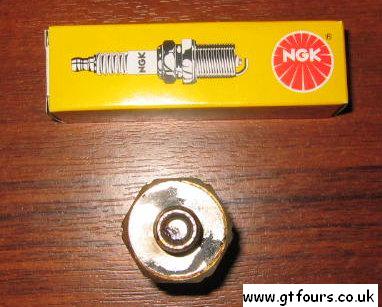

Knock sensor location, remove with a deep reach 27mm socket | The sensor can be accessed by taking off the drivers wheel and peering in through the arch | Close up of knock sensor, torque to: 165/185 - 44Nm |
Side view of the stock knock sensor |
![]() |
![]() |
![]() |
![]() |

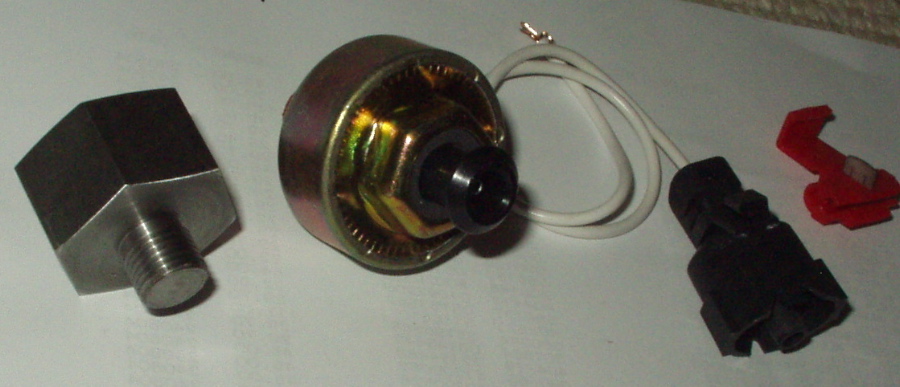

End view | ATS racing/GM knock sensor. Apparently this is a replacement for the stock knock sensor... | ATS racing/GM knock sensor. I wouldn't fit one of these to my car since KS are "tuned" to a specific engine | Sensors within the water elbow |
![]() |
![]() |
![]() |
![]() |

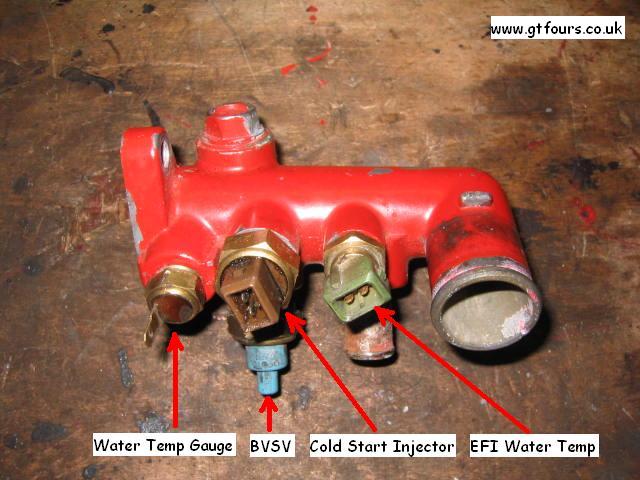

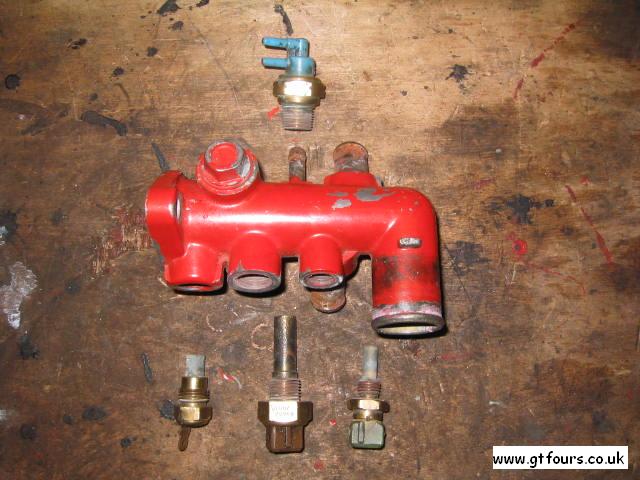

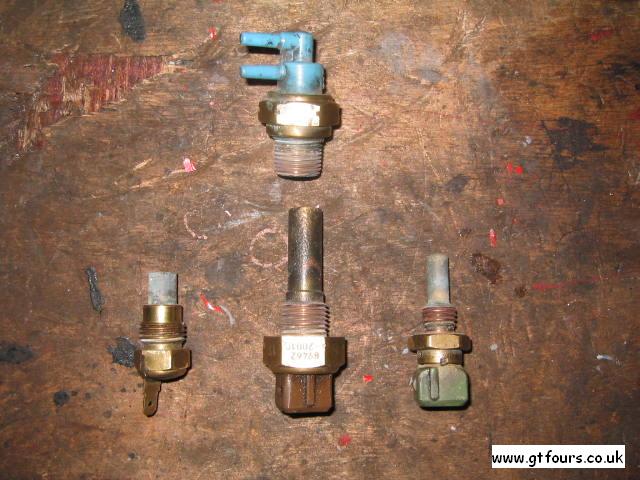

Flow restrictions caused by the sensors | Sensor locations | Close up of water elbow sensors | Underneath view of water elbow |
![]() |
![]() |
![]() |
![]() |

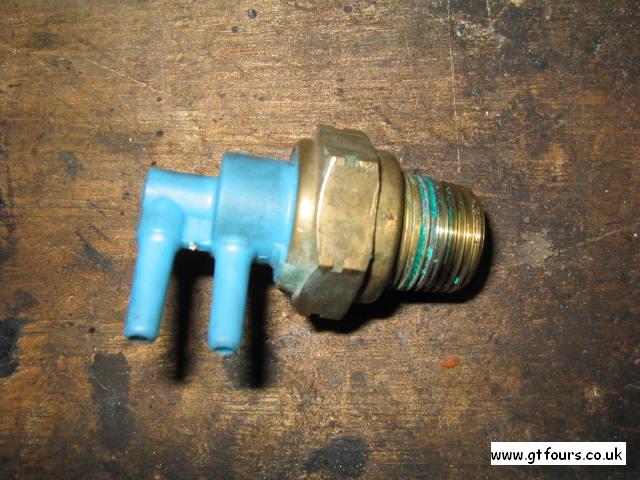

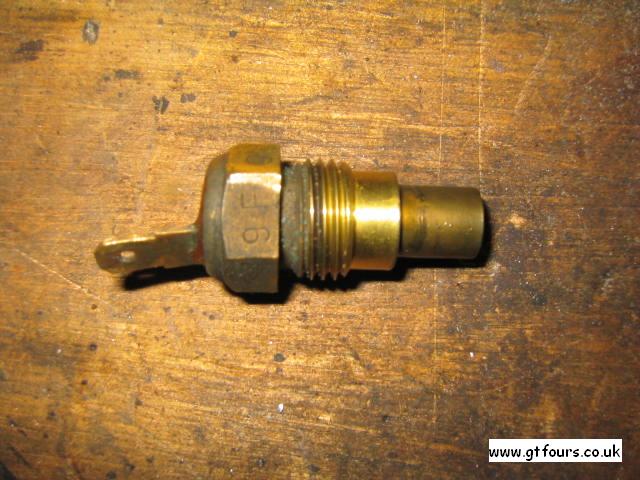

BVSV | Dash water temp gauge temp sender | ECU water temp sender | ECU water temp sender connector view |
![]() |
![]() |
![]() |
![]() |

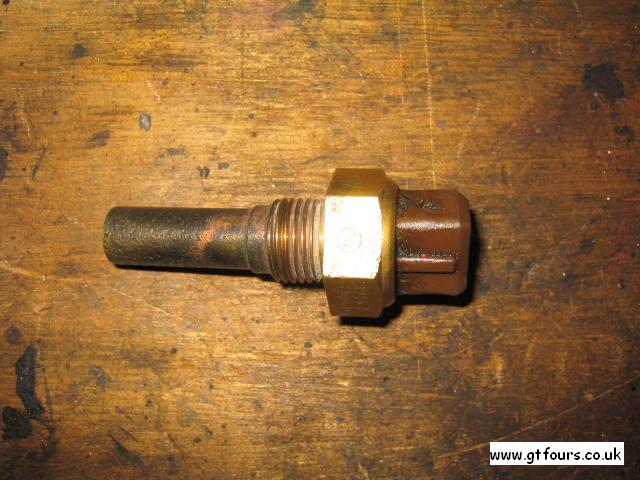

Jap
CSI Part No 89462-20010 |

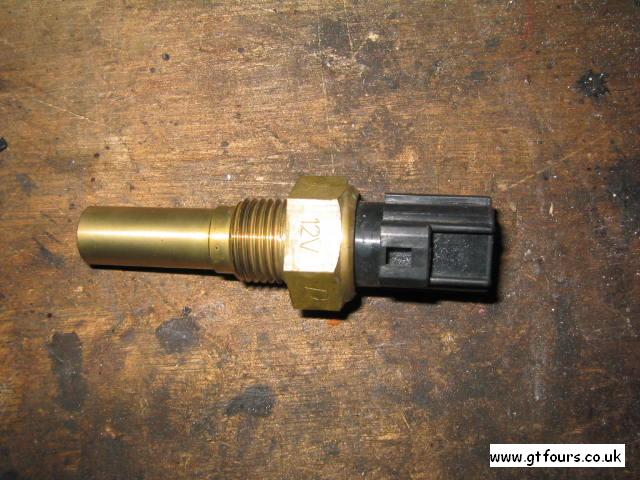

UK CSI Part No 89462-20040 |

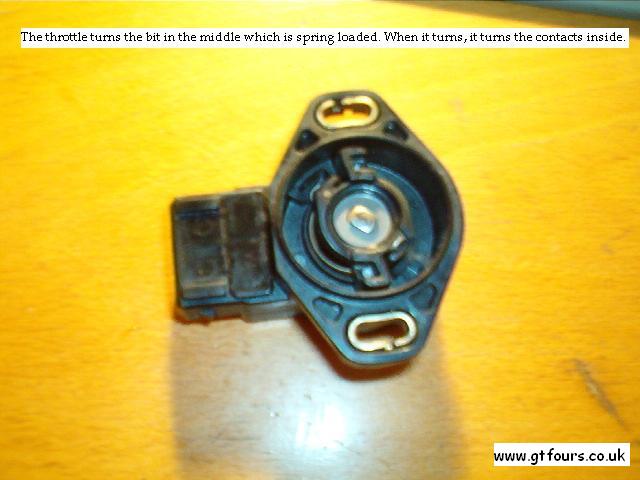

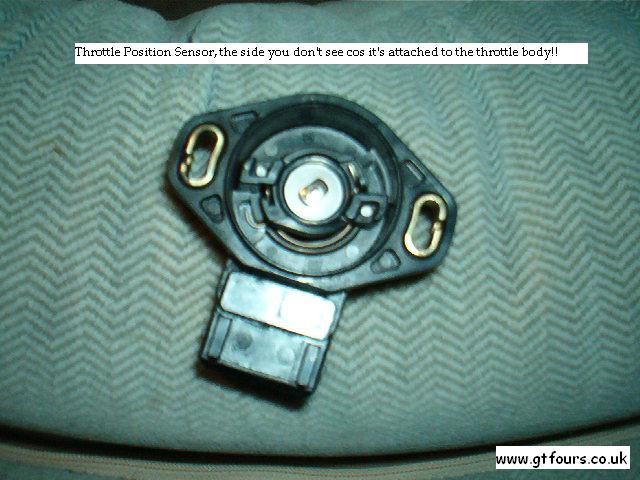

TPS - Throttle position sensor - throttle body side | Another angle |
![]() |
![]() |
![]() |
![]() |

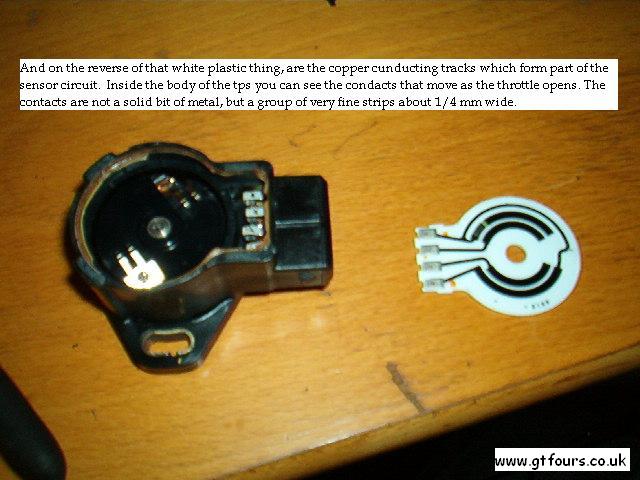

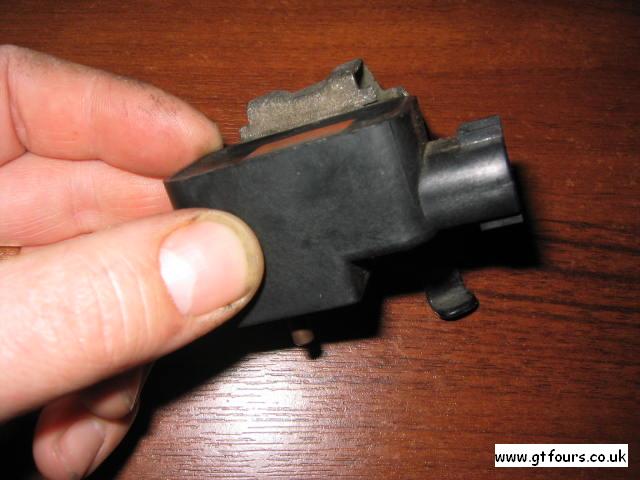

Outer plastic removed | Internal picture | Internal circuitry... | Turbo pressure sensor |
Thanks to Steve Harris for the TPS internal pictures
