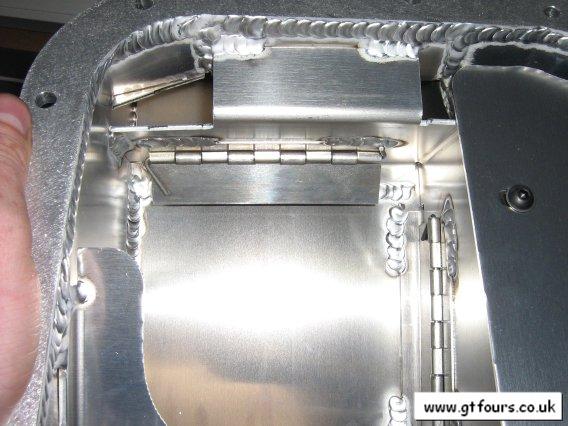

Note the hinged "flap" |
The hole in the side of the pan is intended for use with the oil level sensor that is fitted to some cars |
The front of the oil pan |

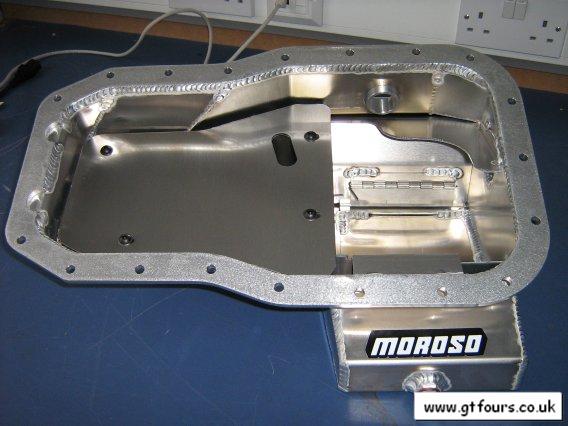

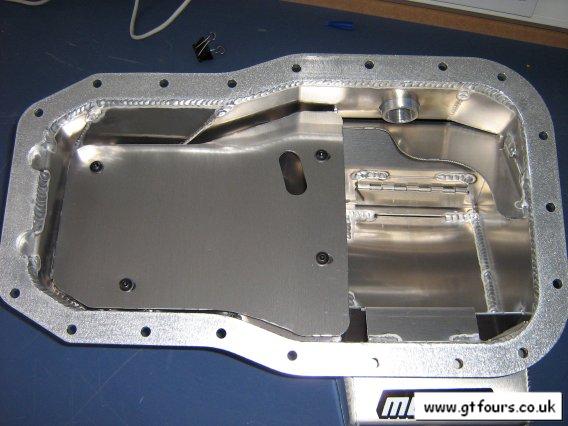

Picture showing the cut out in the sump, particularly useful when fitted ARP fasteners to the main bearing caps - take note Mr ARP! |
|
 |
 |
 |
 |

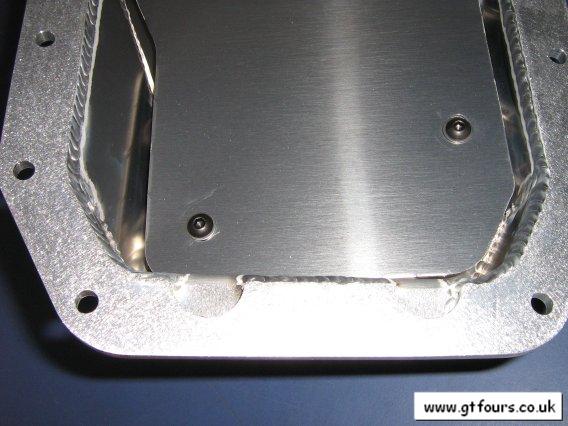

Picture showing some of the baffling arrangements |
Another view... |

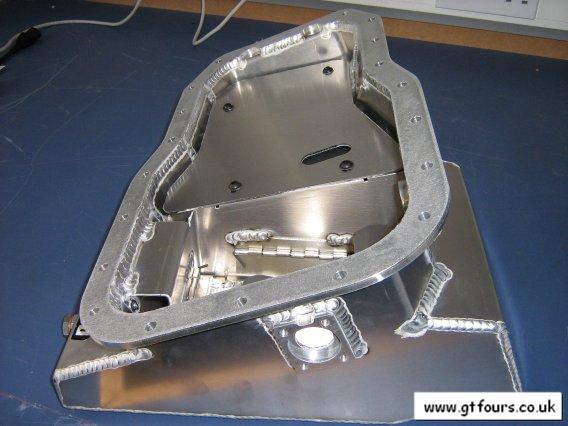

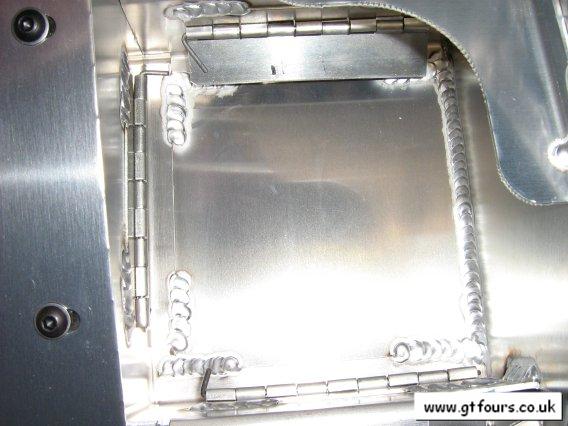

...note the hinged flap. This is intended to aid baffling |

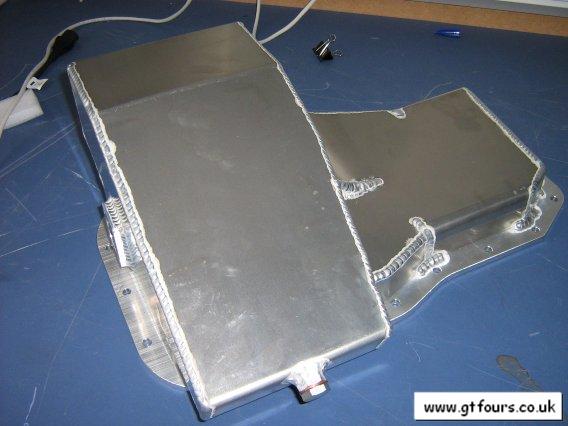

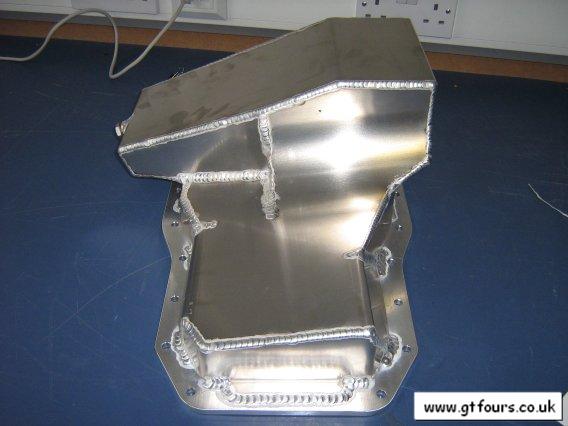

A view of the bottom of the oil pan |
|
 |
 |
 |
 |

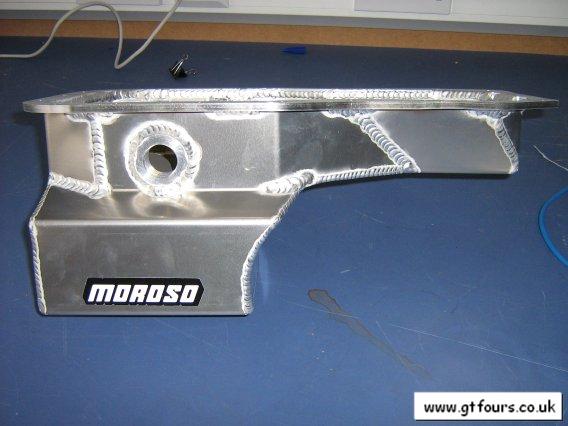

Side view |
Top view |

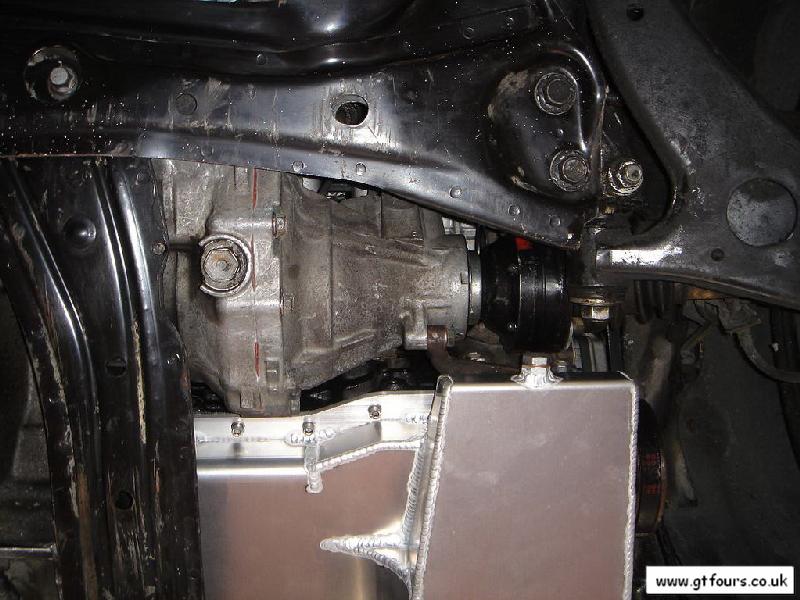

Fitted to a 185. Note this just clears the inner CV joint... |
...a close up |
|
 |
 |
 |
 |

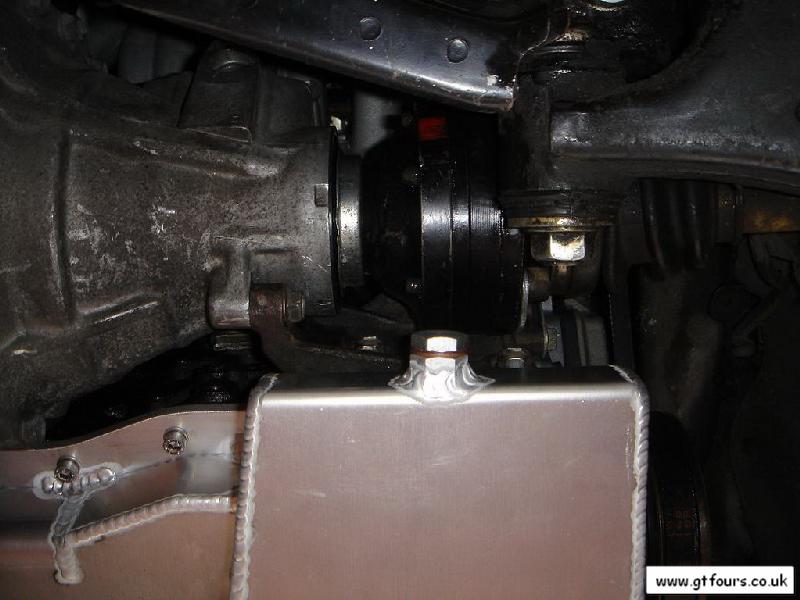

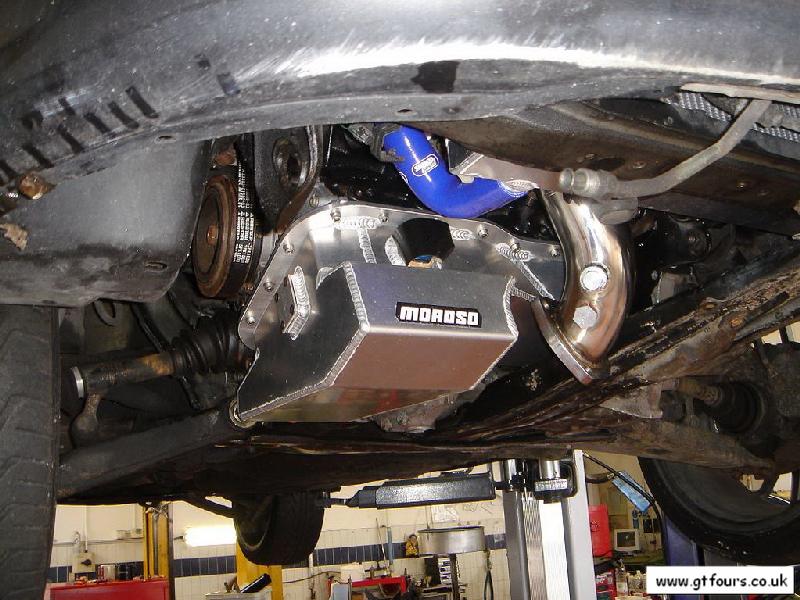

Front view, note the blocked off oil level sensor plate |

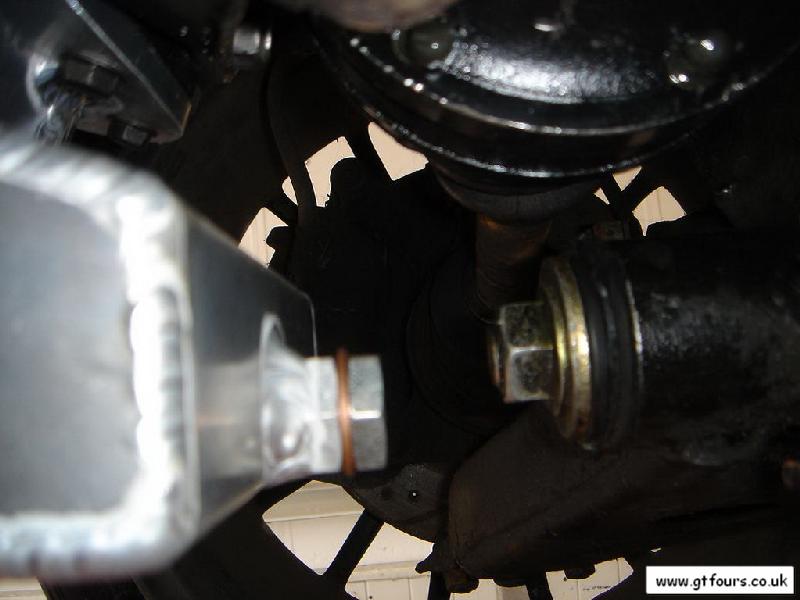

The sump plug just clears the front of the wishbone |

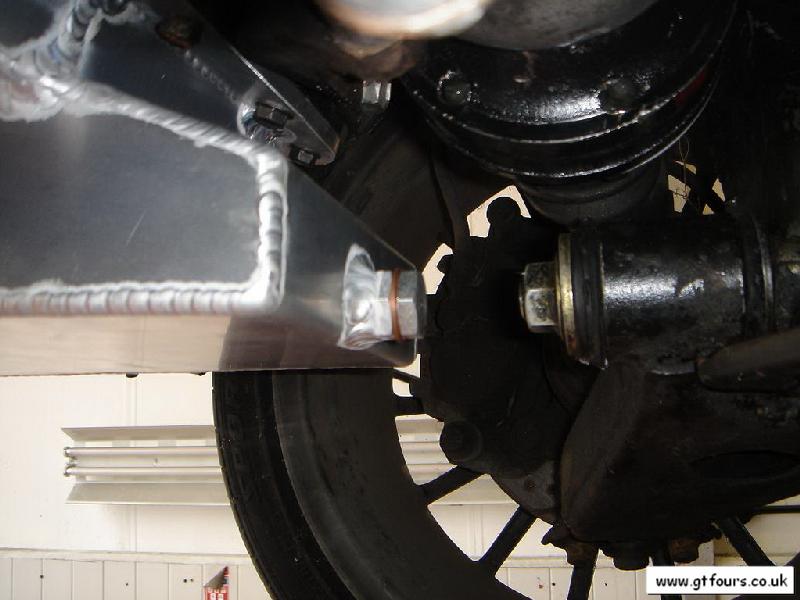

And another view |
And another |
|
 |
 |
|
|

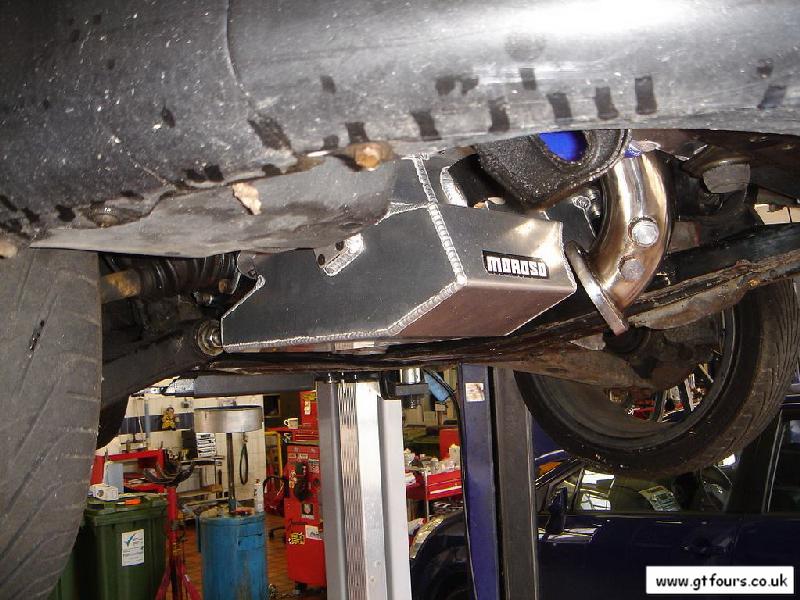

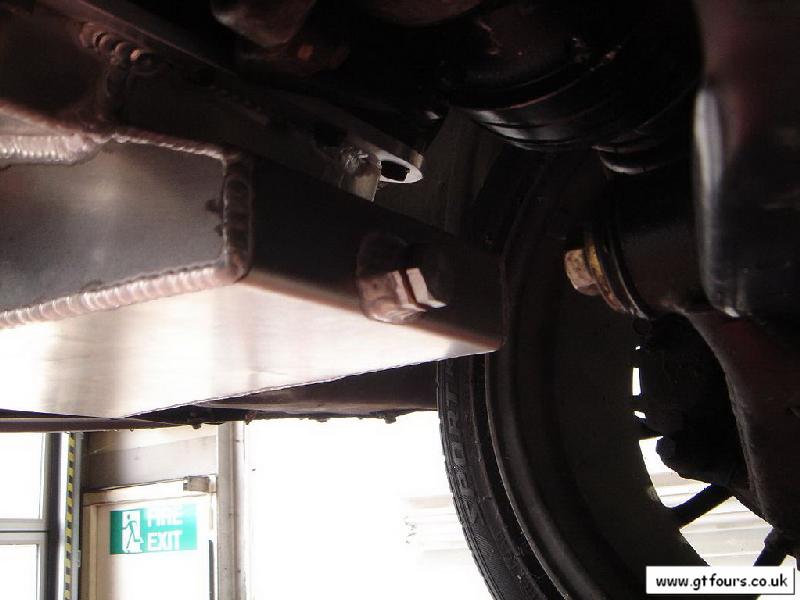

The sump hangs down about level with the front to rear cross member... |

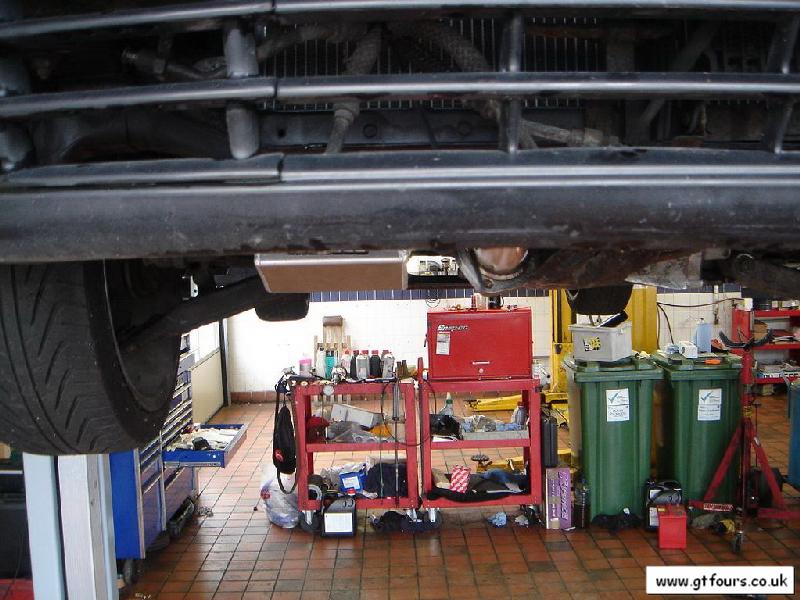

...and another view |
|
|
