The Clutch |

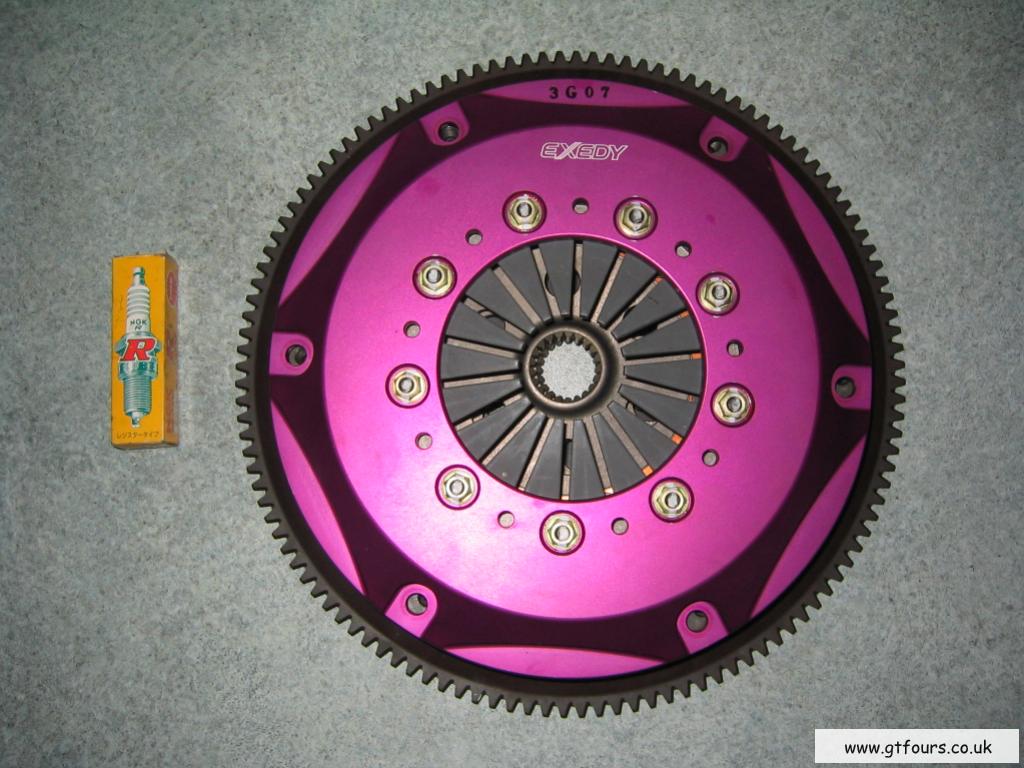

Everything that is included in the box, except the spark plug!
Note the replacement flywheel bolts |

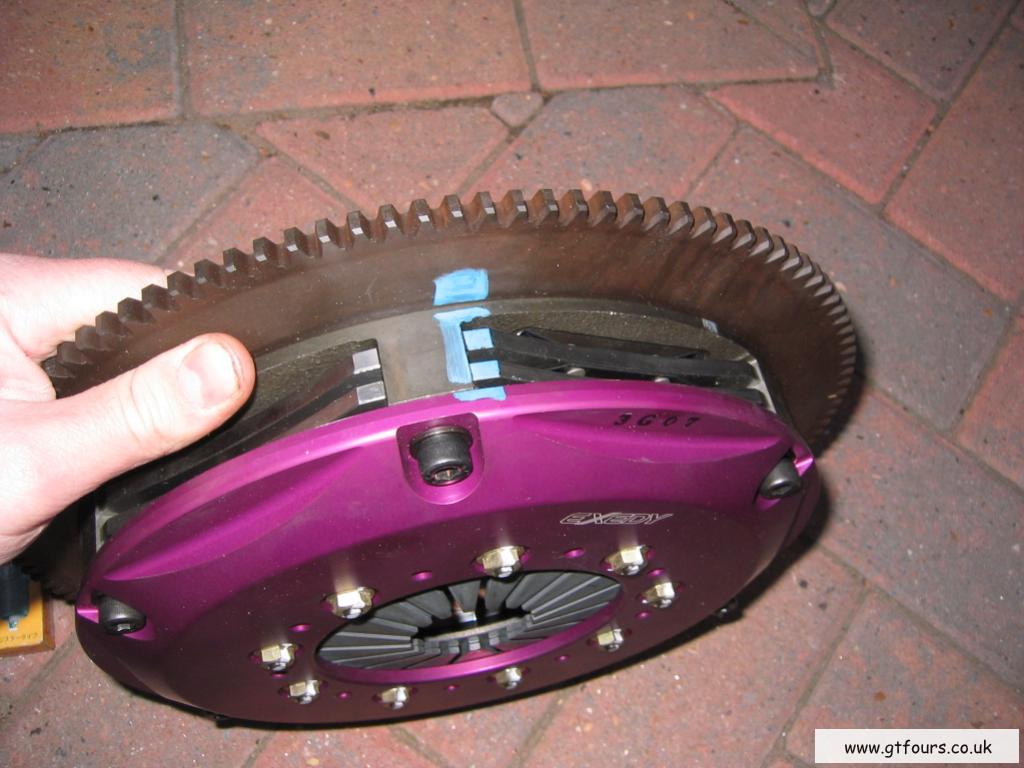

The clutch assembly is balanced at the factory, note the blue markings |

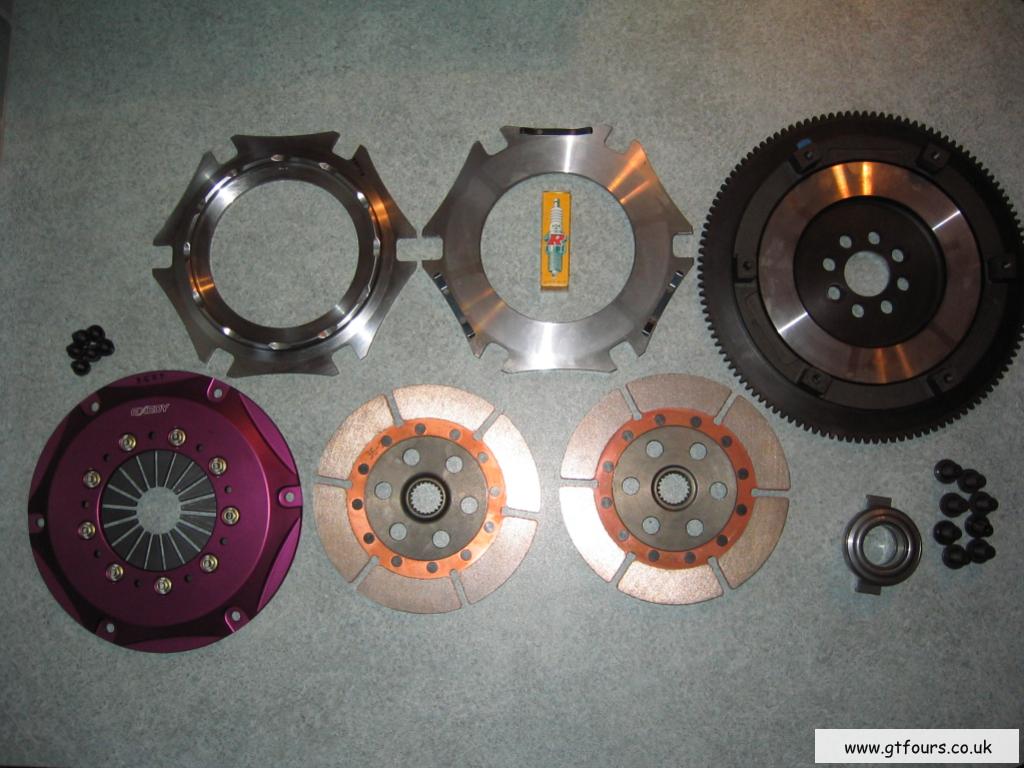

All parts of the clutch |
|
 |
 |
 |
 |

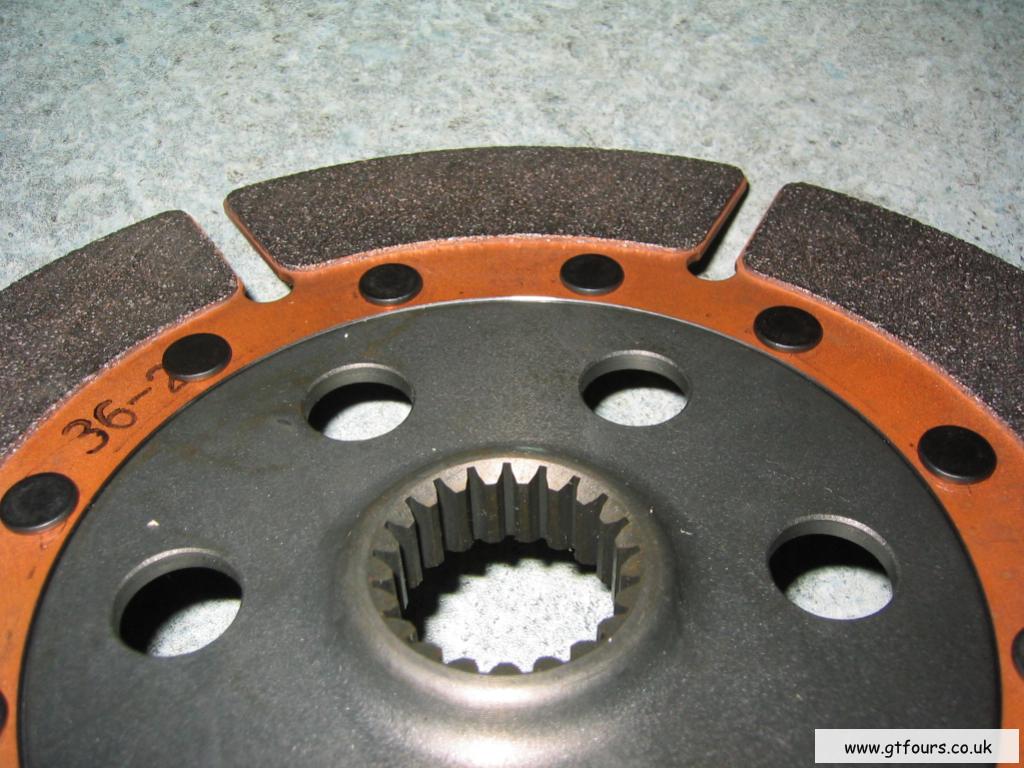

Close up of the friction plate. Note it is
not fitted with springs |
A side shot of one of the friction plates |
End view of the block, ready to accept the
new flywheel |

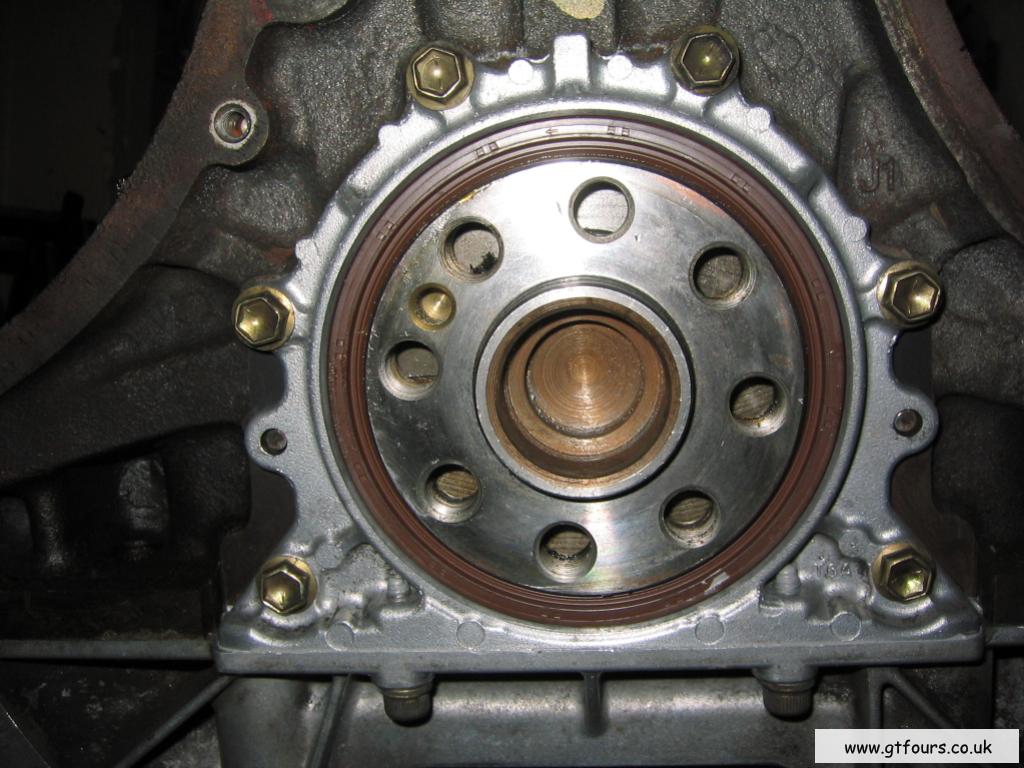

View of the rear of the block, showing seal,
carrier and crank. Note the threaded holes in the crank go all the way
through... |
|
 |
 |
 |
 |

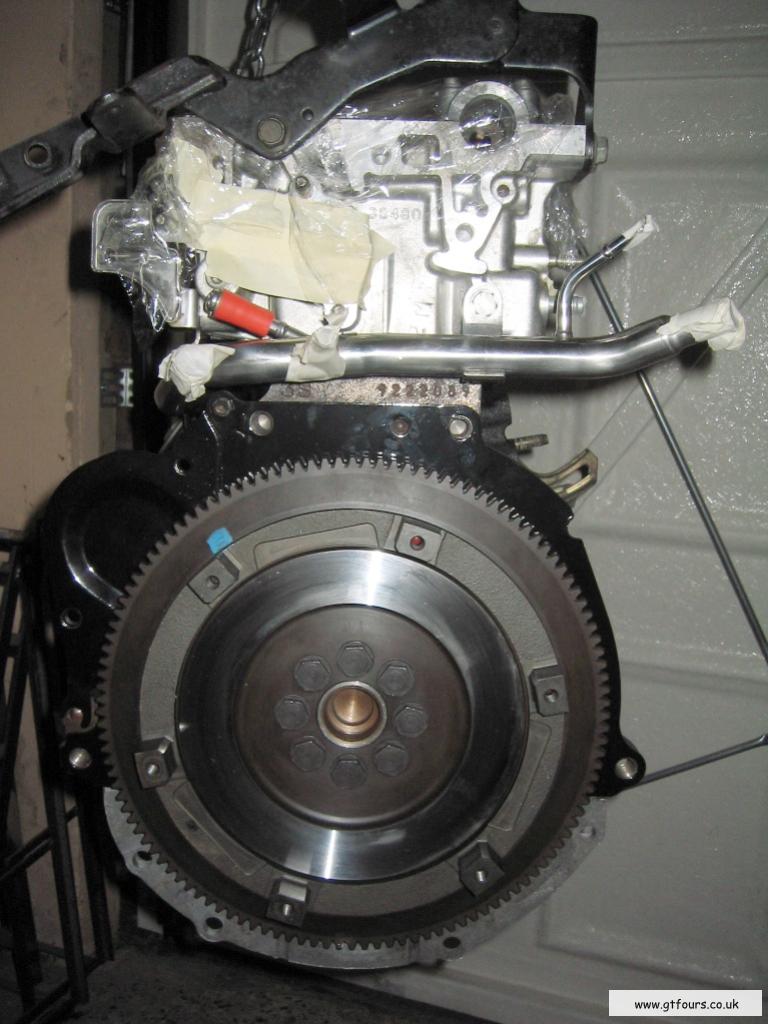

The fitted flywheel |
Picture showing a partially built engine and
Exedy flywheel |

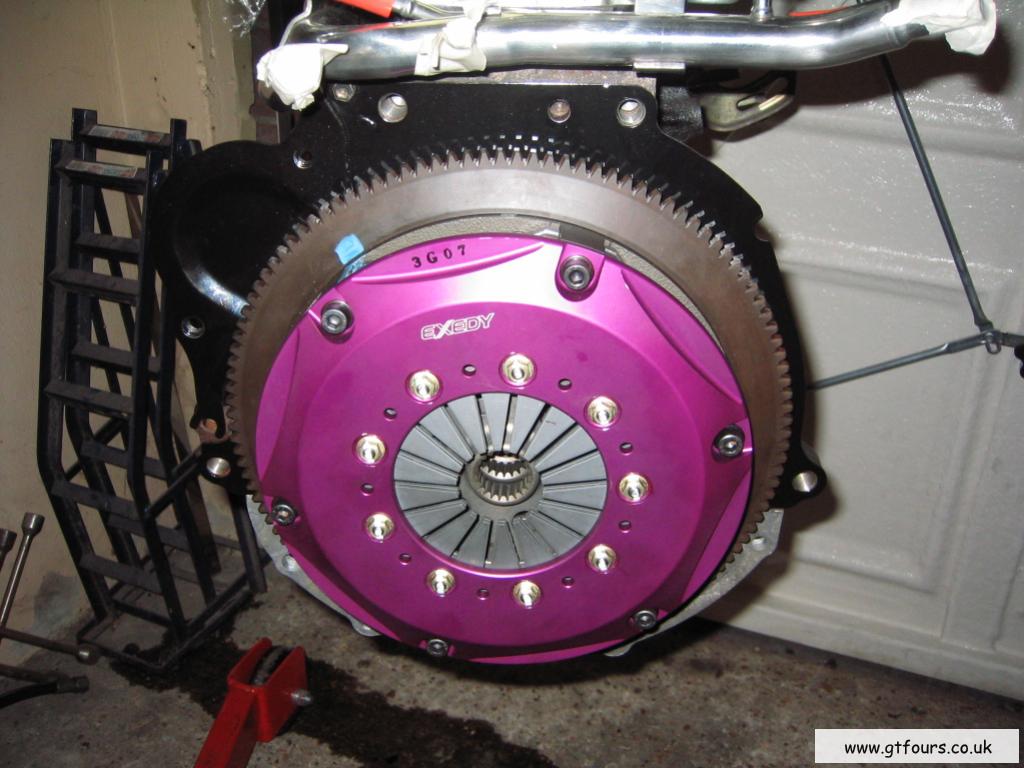

The complete Exedy clutch fitted |

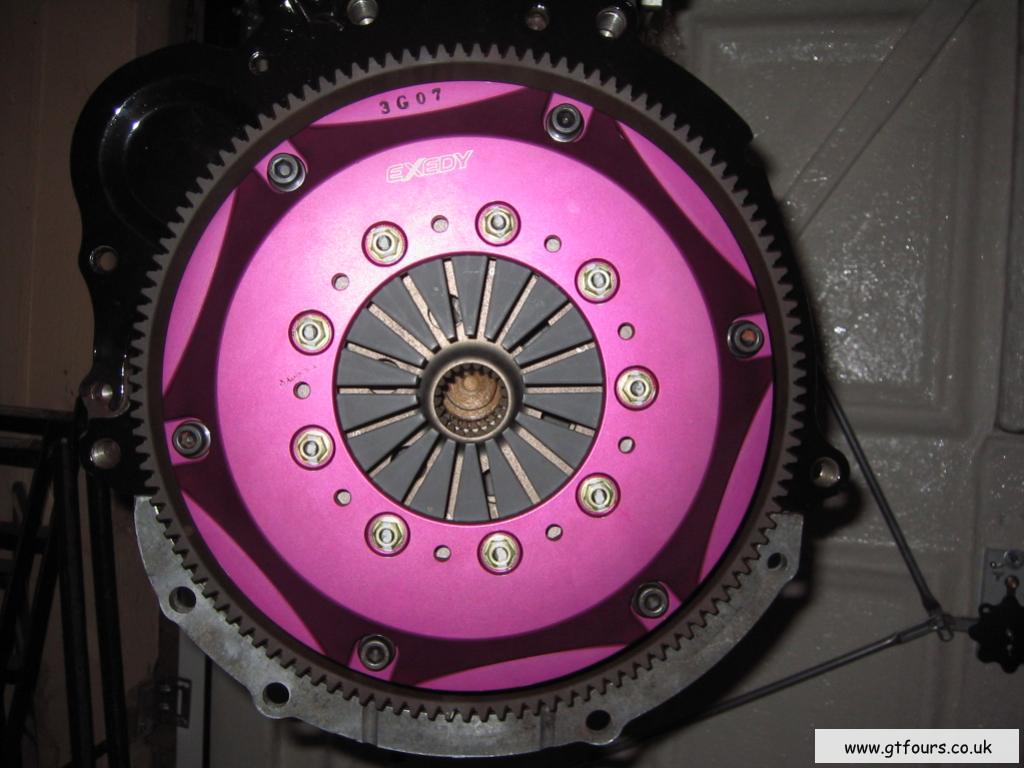

Close up of the cover plate |
|
 |
|
|
|

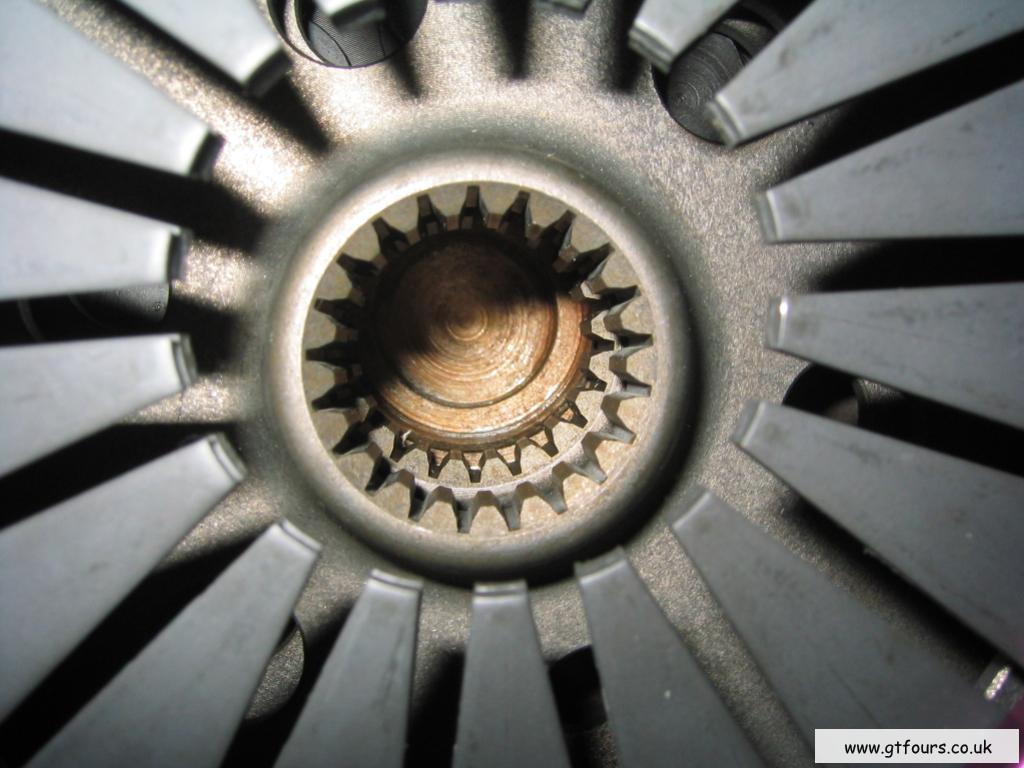

Close up of where the input shaft of the
gearbox mates. Note the 2 sets of clutch plates that require alignment... |
|
|
|
