TVIS and TVSV
![]() |
![]() |
![]() |
![]() |

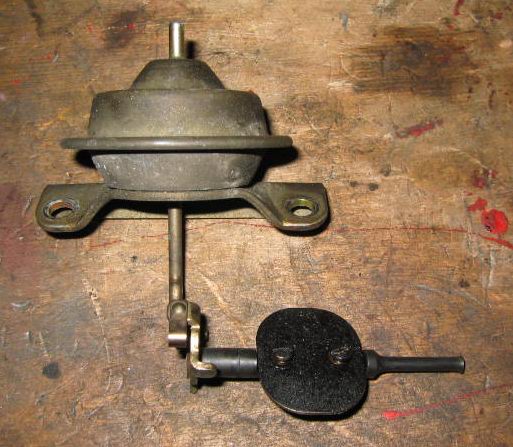

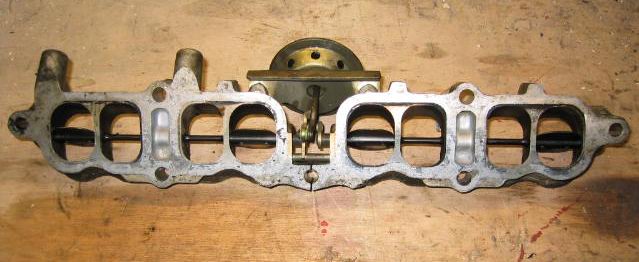

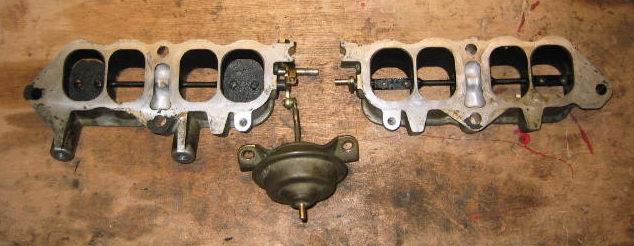

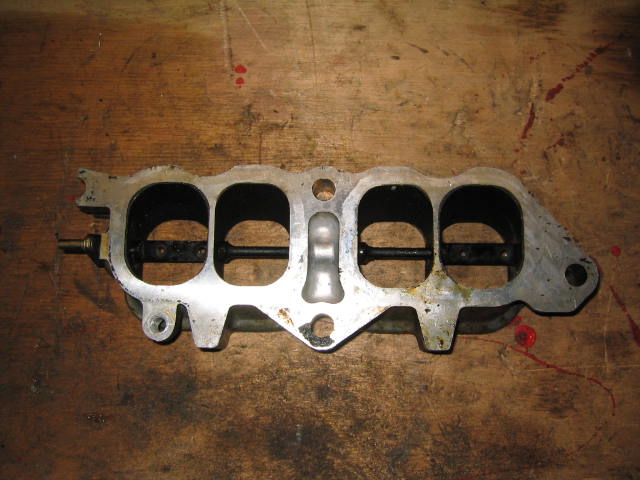

TVIS assembly | TVIS split. Note the closed butterfly valves on the left and the removed ones on the right | The two halves can be separated and the supporting bar and "flaps" removed | TVIS actuator attached to the bar that turns the butterfly valves |
![]() |
![]() |
![]() |
![]() |

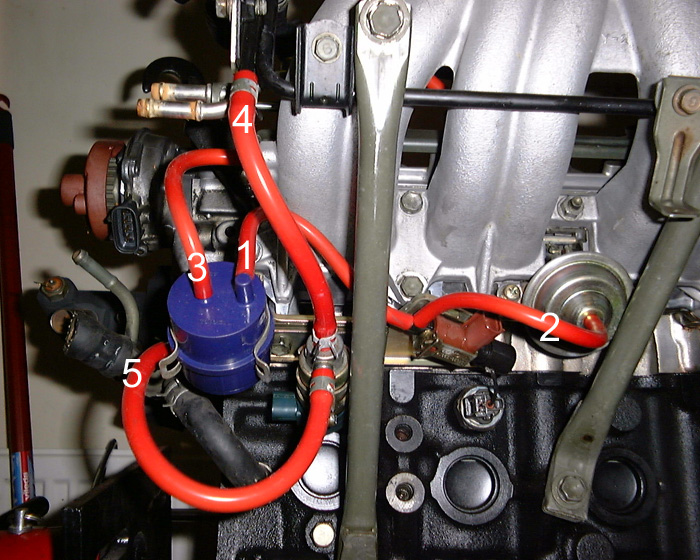

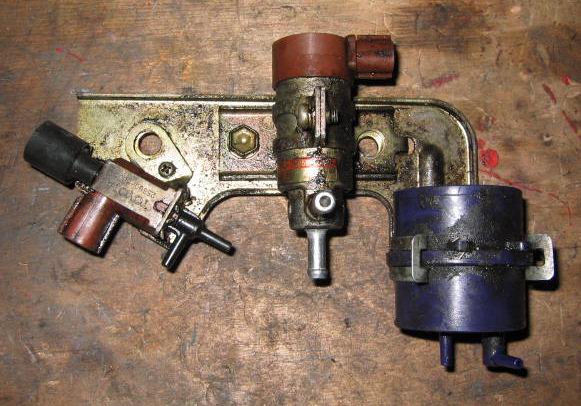

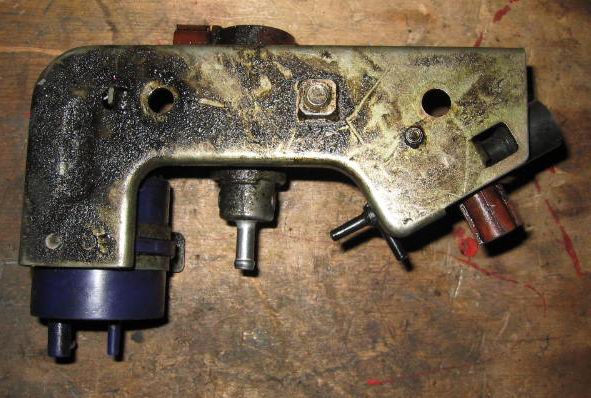

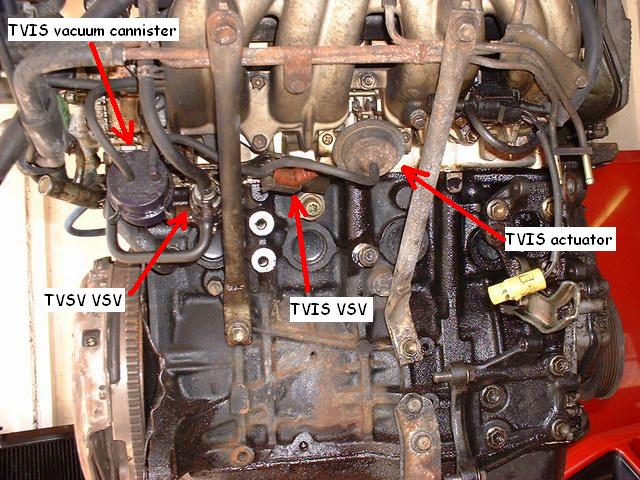

Rear view of engine showing the TVSV and TVIS assemblies | Close up of the TVIS and TVSV assembly, taken from an ST185 1 - Vacuum tank to TVIS VSV |
