Side view |
Another side view |

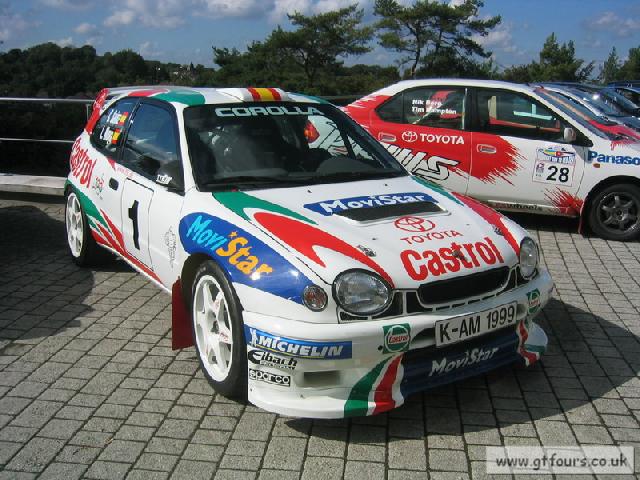

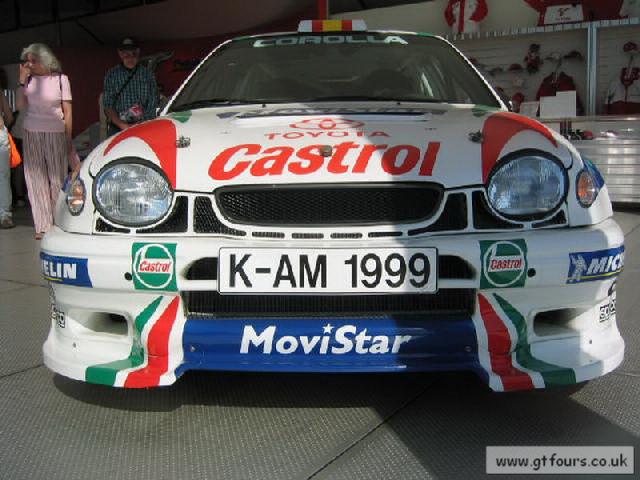

Front view |
Another front view |
|
 |
 |
 |
 |

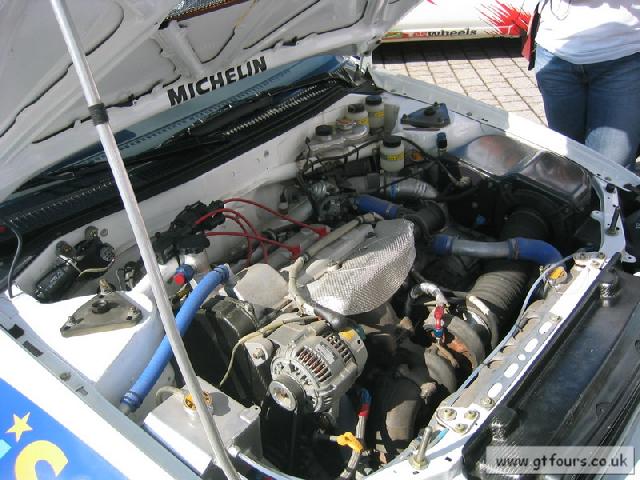

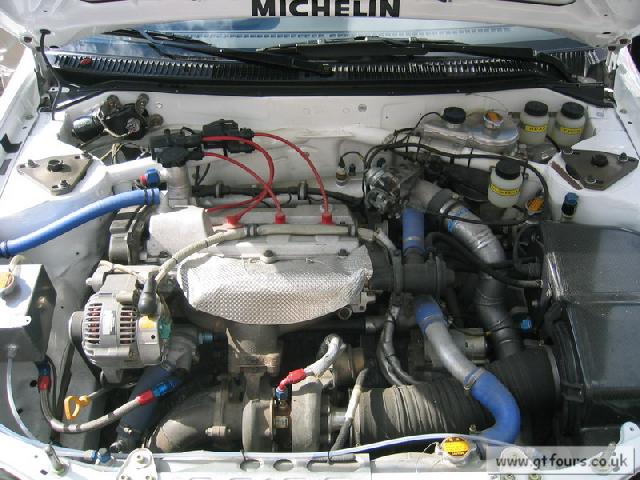

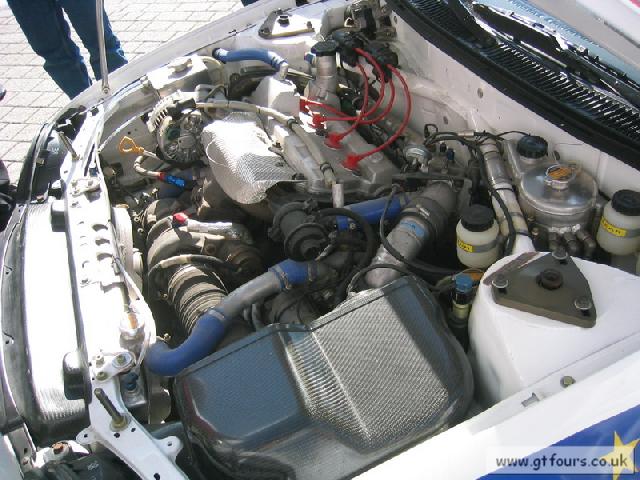

Engine bay |

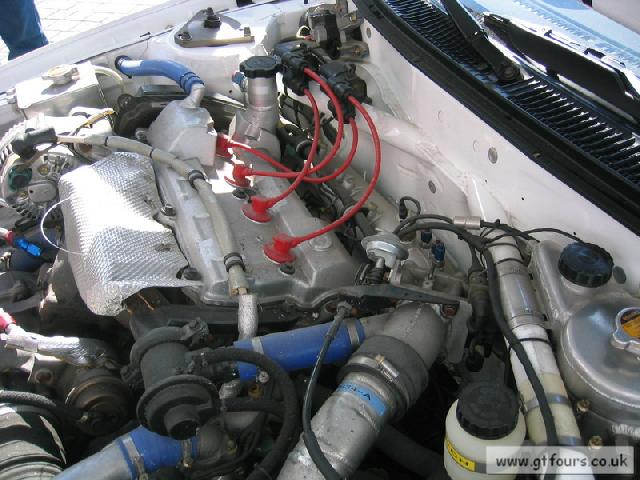

Engine bay side view |
Engine bay side view |
With turbo heat shield removed |
|
 |
 |
 |
 |

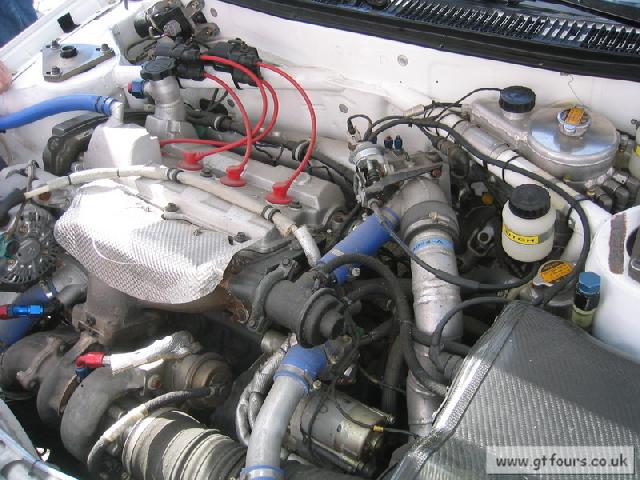

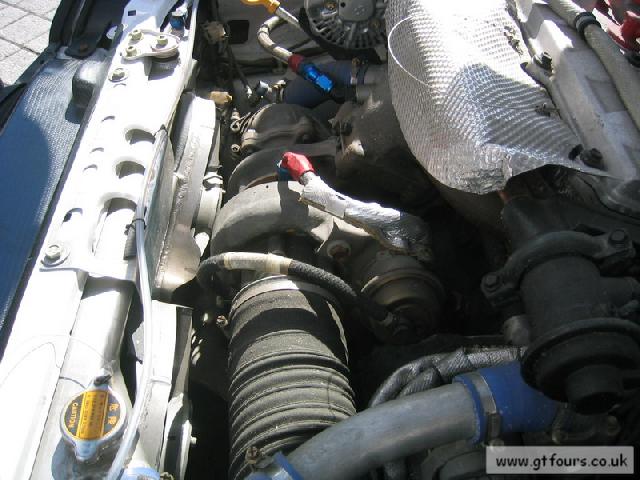

A closer view of the turbo area |

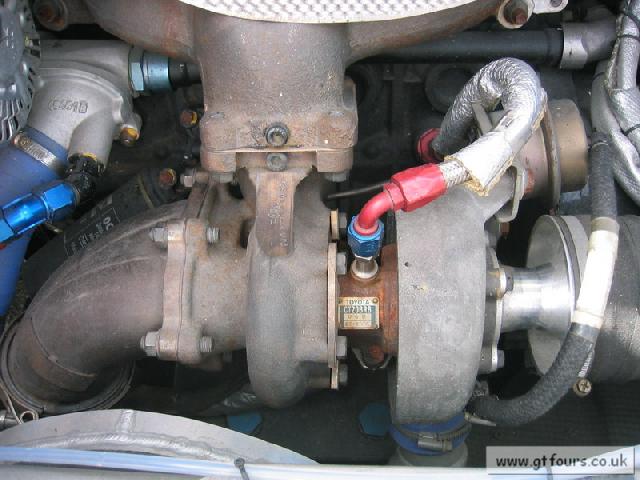

The name plate on the turbo says "CT20BRB" |

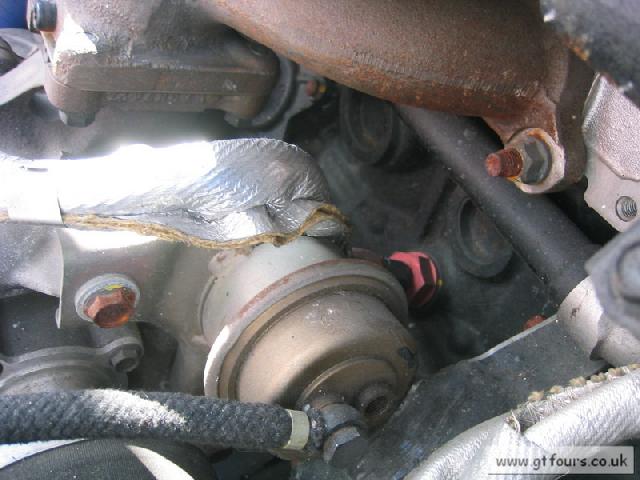

Turbo actuator top |
Intake pipe work |
|
 |
 |
 |
 |

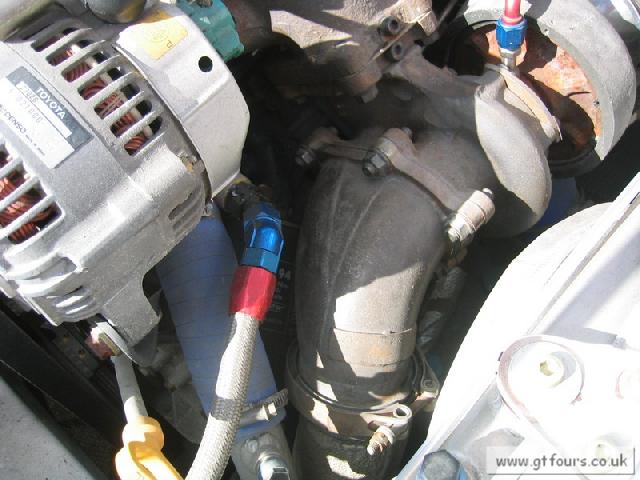

The exhaust side still features what seems to be a 3" quick release elbow |
Note the large intake air box... |
...and the side feed inlet manifold |

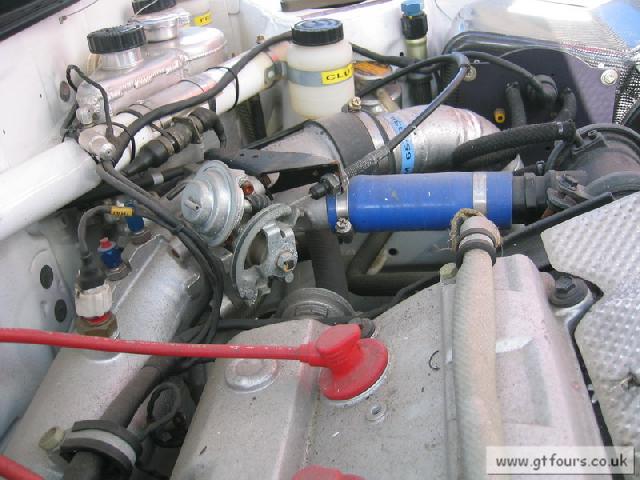

Close up of the throttle body and intake manifold |
|
 |
 |
 |
 |
Another view of the throttle body area |

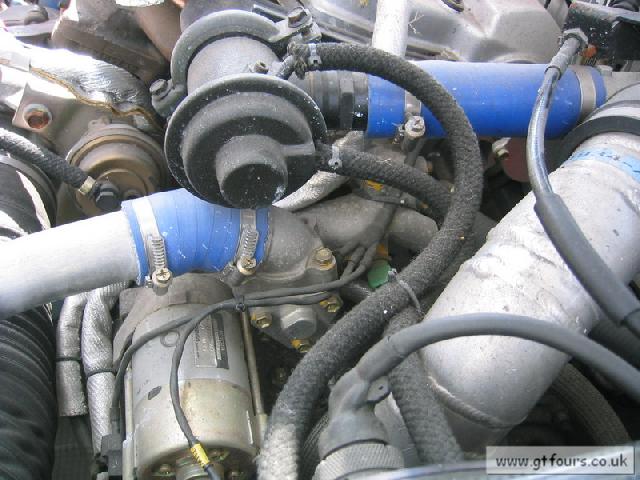

The anti-lag valve |
A number of the sensors, injectors etc are not fitted to this car |

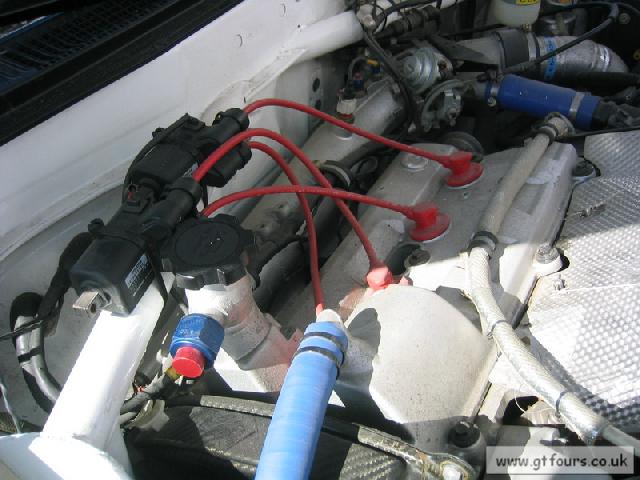

Part of the ignition system |
|
 |
 |
 |
 |

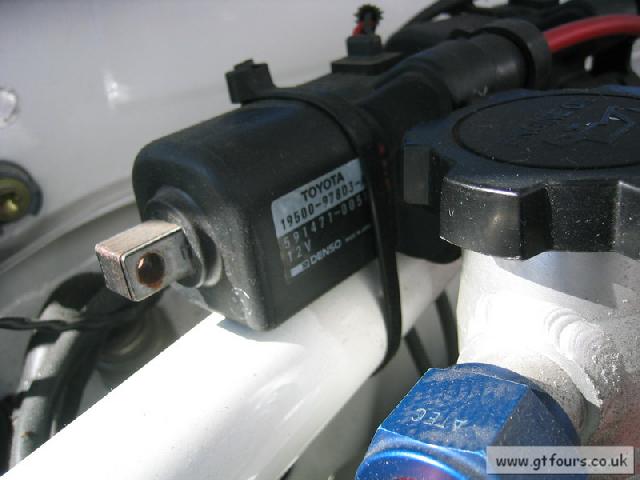

Part number of the coils fitted for the ignition |

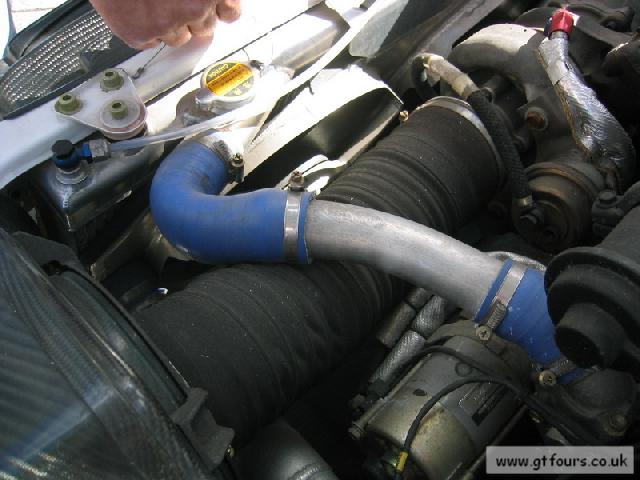

The intercooler pipe work leaving the exit of the turbo... |
..but the intercooler is missing! |

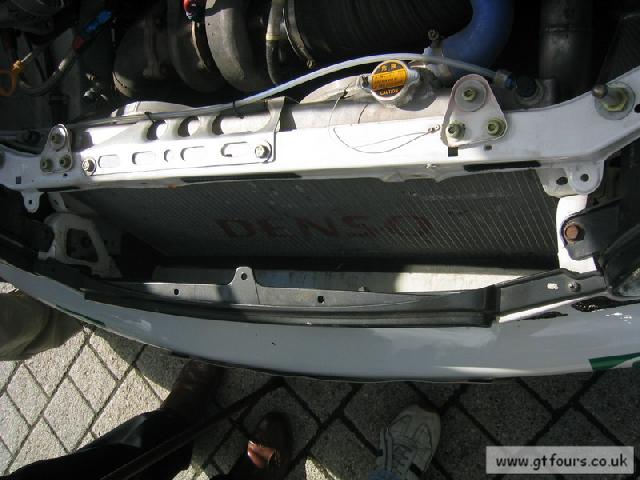

The vacant spot at the front of the car |
|
 |
 |
 |
 |

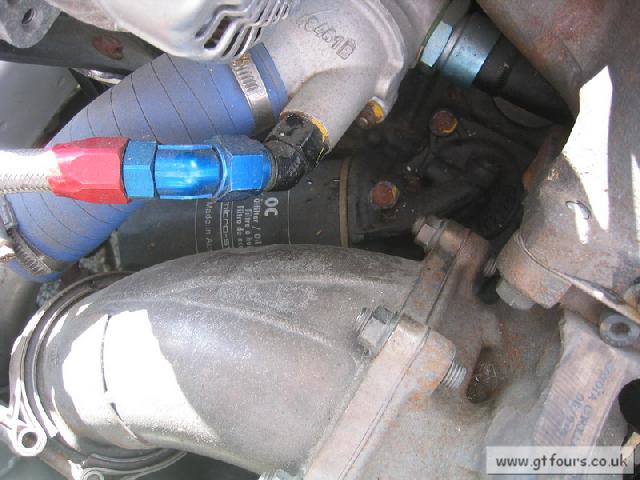

The oil filter adaptor between the filter and the block |
Seems that those blanking plugs fitted to the 205 style sump have been utilised |

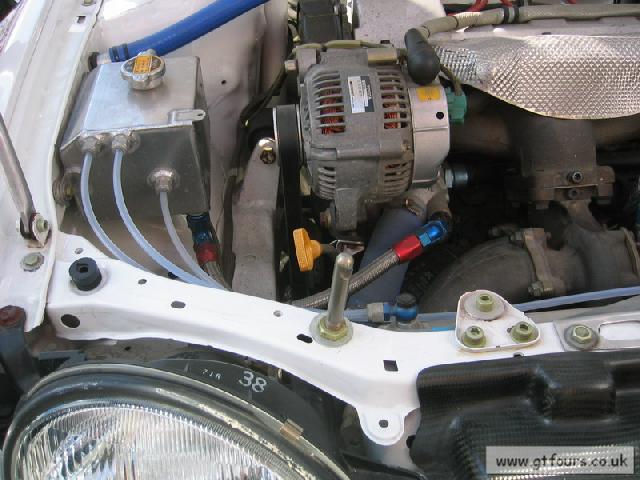

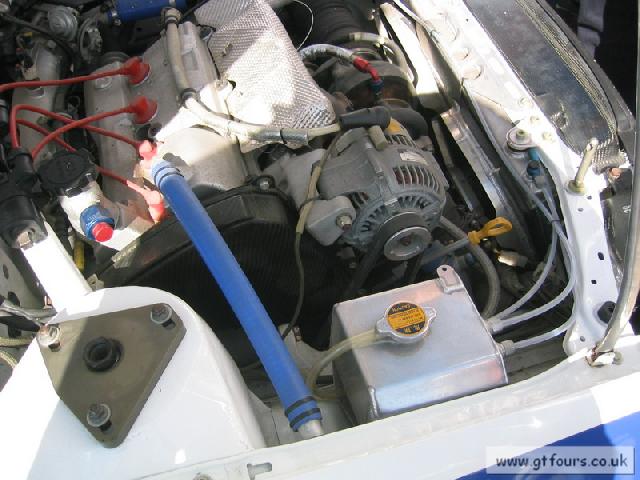

Part of the cooling system is the header tank... |
...the path of the coolant lines... |
|
 |
 |
 |
 |
...and more... |
...a revised thermostat housing is fitted |
...another picture |

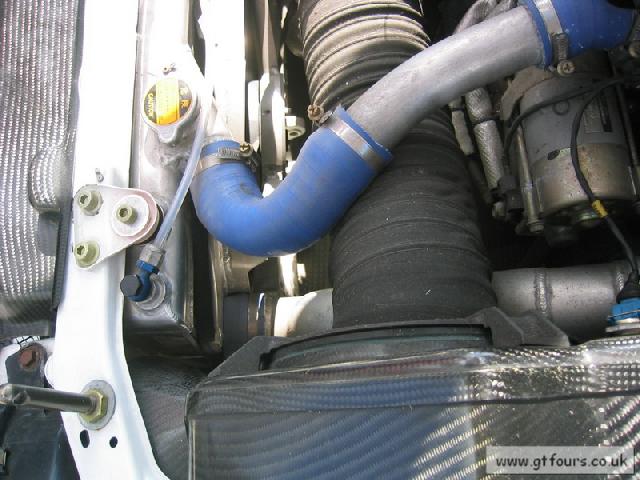

The entry to the radiator also seem to have been revised when compared to other GT4s |
|
 |
 |
 |
 |

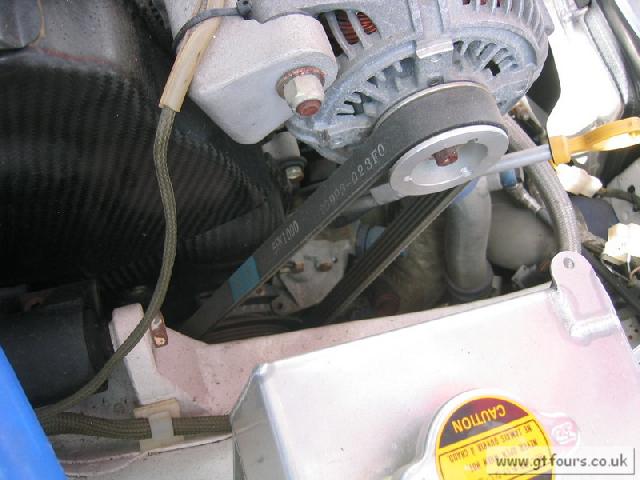

A lightweight alternator pulley? |
Rear left wheel and suspension |
The supporting framework for the suspension... |

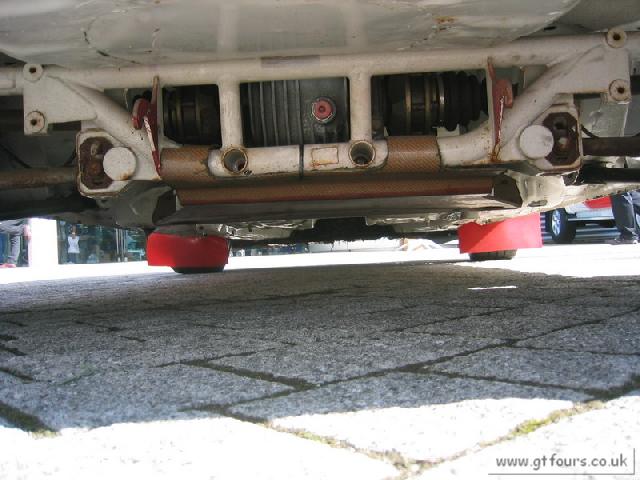

...and the rear diff area heavily revised... |
|
 |
 |
 |
 |
No propshaft! Missing just like several other parts |
The rear right wheel |

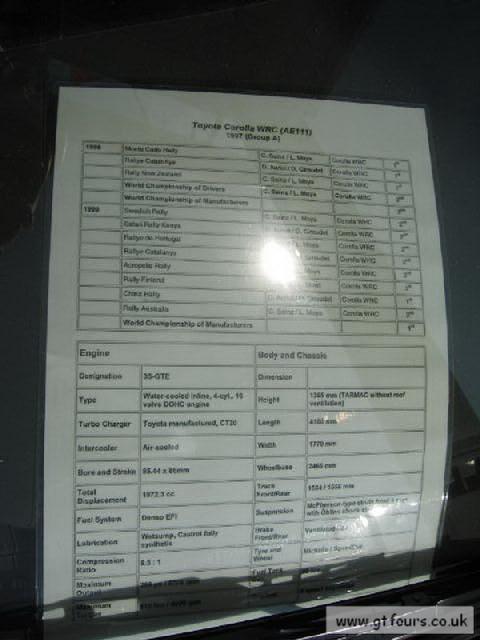

The spec sheet |
Note the compression ratio and most interesting of all the diameter of the cylinders in the block... |
