Engine Bay Layout
What are all these bits in my engine bay?

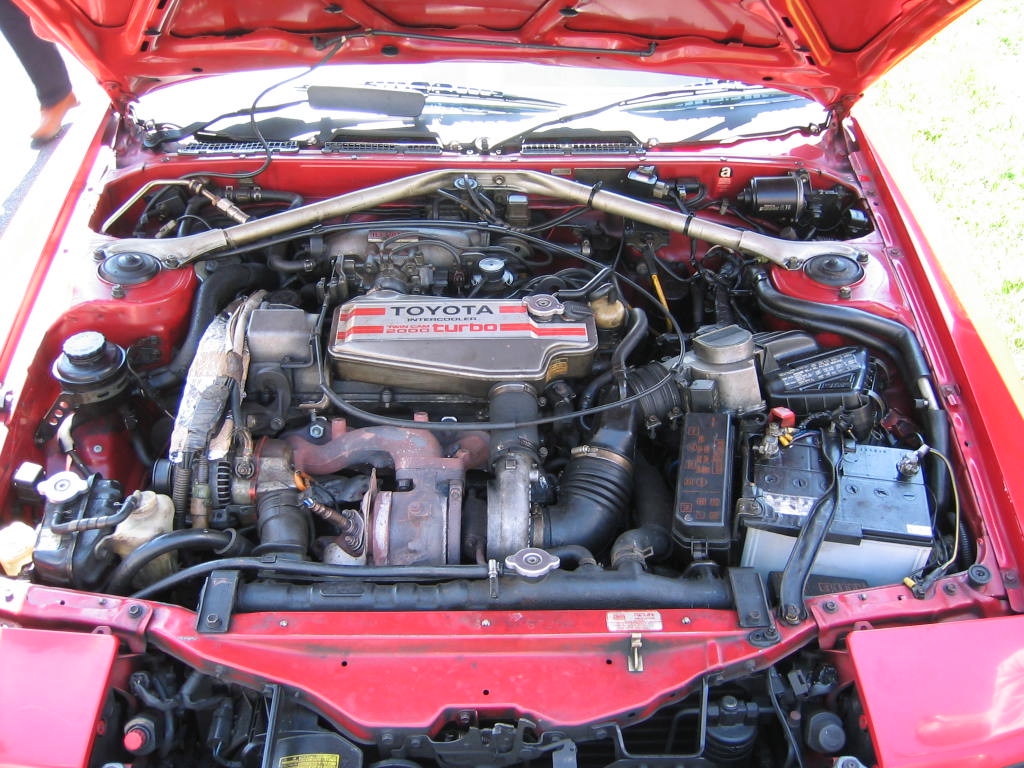

Click on the picture below for an overview of some bits in the engine bay
Numbers:
1 | Headlight motor retractor | 16 | Strut brace |
2 | Aircon liquid receiver with level sight glass | 17 | Aircon idle adjustment |
3 | Intercooler radiator support bracket | 18 | Inlet manifold/plenum chamber |
4 | Engine radiator | 19 | Throttle position sensor |
5 | Radiator overflow hose | 20 | EGR |
6 | Turbo compressor housing | 21 | Fuel pump relay |
7 | Turbo outlet | 22 | Intercooler fluid expansion tank |
8 | Turbo exhaust housing | 23 | Coil |
9 | Exhaust manifold | 24 | Turbo Pressure Sensor |
10 | Lambda sensor | 25 | Diagnostic connector |
11 | Alternator cooling snorkel | 26 | Idle up air supply |
12 | Radiator expansion tanks with pressure cap | 27 | PCV vent line |
13 | Windscreen washer bottle | 28 | AFM |
14 | Power steering fluid reservoir | 29 | Aircon pipe work |
15 | Suspension top mount |
